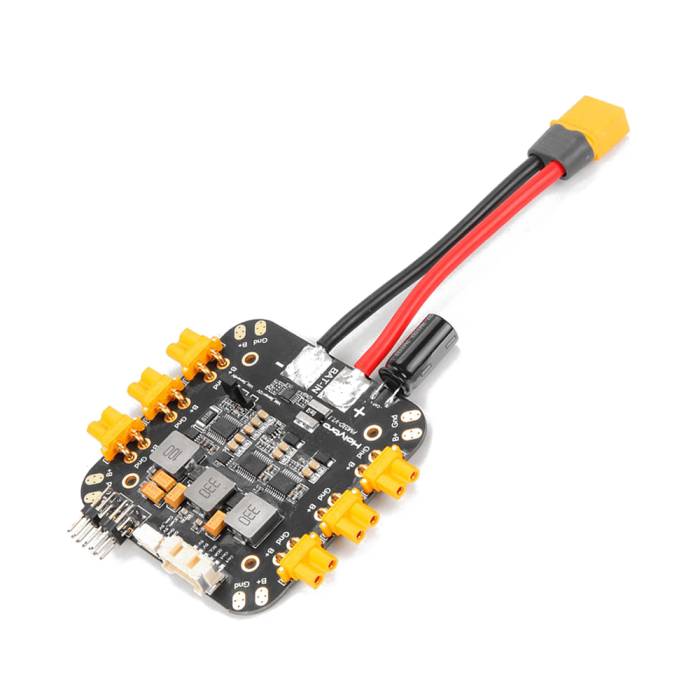

The Holybro PM03D V1.1 Power Module provides a regulated power supply from the battery, current consumption and battery voltage measurements for any flight controller that uses I2C power monitor, such as the Pixhawk 5X and up - all through a 6-pin CLIX-Mate cable.

About this product

The Holybro PM03D V1.1 Power Module provides a regulated power supply from the battery, current consumption and battery voltage measurements for any flight controller that uses I2C power monitor, such as the Pixhawk 5X and up - all through a 6-pin CLIX-Mate cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 6S.

Note: This PM is not compatible with flight controllers that uses analog PM such as the Pixhawk4, Pixhawk4 Mini, pix32 v5, or Durandal flight controllers.

Features

  • Selectable 8V or 12V TripleRow Pin Header for Powering Peripheral Device
  • 5V/A Ports for Powering Companion Computer or Peripheral Device
  • Onboard Voltage Regulator - Two 5.2V & One Selectable 8V/12V
  • Solder Pads for Easy Motor ESC Connection
  • Powers your Pixhawk® 5X or Newer Model
  • Designed for Multi-Rotors like the X500 V2
  • Pre-Installed XT-30 and XT-60 Connectors
  • Plug & Play

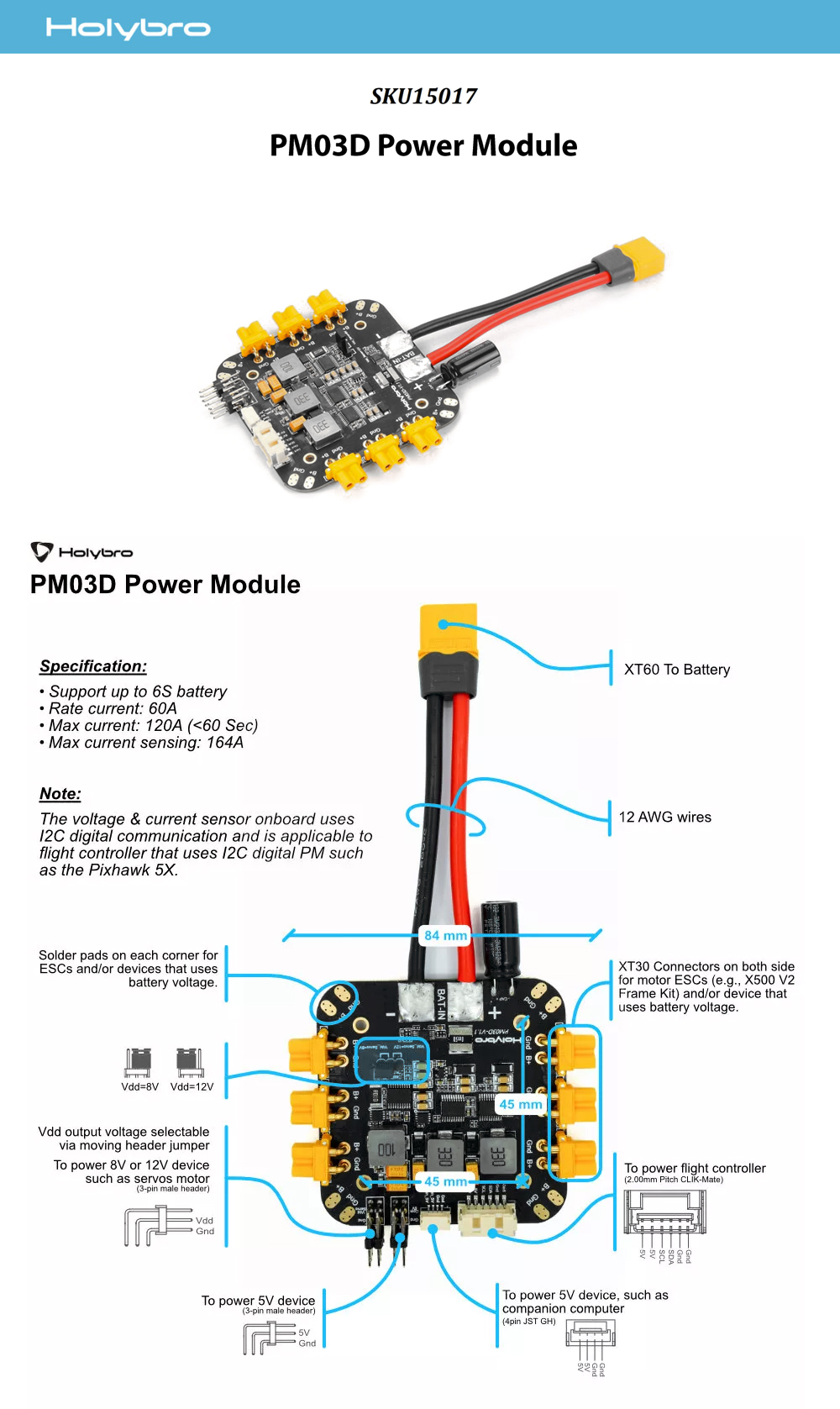

Specifications

  • Connections:
    • 2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)
    • JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)
    • 2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)
    • CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)
    • XT-30 for motor & peripheral device (battery voltage)
    • Solder pads in each corner (battery voltage)
    • Dimension: 84*78*12mm (excluding wires)
    • XT-60 for battery
  • Maximum input voltage: 6S battery
  • Max current: 120A (<60 Sec)
  • Max current sensing: 164A
  • Mounting: 45*45mm
  • Rated current: 60A
  • Weight: 59g

Note: The XT60 plug and 12AWG wire that PM03D comes with is rated for 30A continuous current and 60A instantaneous current (<1 minute). If a higher current is being used, the plug type and wire size should be changed accordingly.

Links

Includes

  • 1x Holybro PM03D V1.1 Power Module (for Pixhawk 5x or Newer)
  • 1x 2.0mm Pitch CLIK-Mate 6pin Cable (To Power FC)
  • 1x Electrolytic Capacitor: 220uF 63V (Pre-soldered)
  • 1x 80mm XT60 Connector wire (Pre-soldered)
  • 1x 4pin JST GH to Barrel Plug (2.1x5.5mm)
  • 1x 4pin JST GH to Barrel Plug (2.5x5.5mm)
  • 1x Hardware Set - Nylon Standoffs & Nuts
  • 1x 4pin JST GH to USB Type C
  • 1x 4pin Pin Dupont Cable (2pc)
