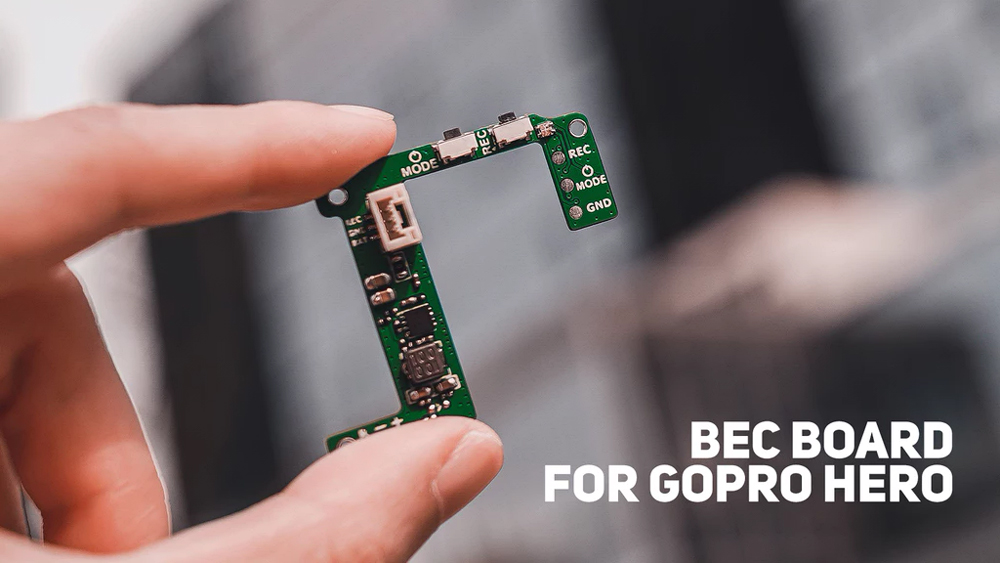

Are you worried that your GoPro will turn off during a flight? BETAFPV has designed a Bec Board to help you with that and much more! The GoPro BEC Board has integrated 5V@2A BEC, stock GoPro buttons, and LED pluggable connectors and remote recording!

Features

• BEC Board is specially designed for Naked GoPro Hero which weighs about 1.5g, make your naked GoPro lighter and easier to install on your drone.
• The BEC output voltage is 5V@2A, avoid the accident of power off which is caused by the insufficient power supply for the FC board.
• Integrated GoPro stock buttons, Power/Mode Button and Record Button
• Integrated GoPro stock LED to know the status of the camera.
• Pad is available for pilot to control the GoPro recording via the radio transmitter.
• With the pluggable connector, which is easier to connect with your flight controller for power supply and recording.

Specifications

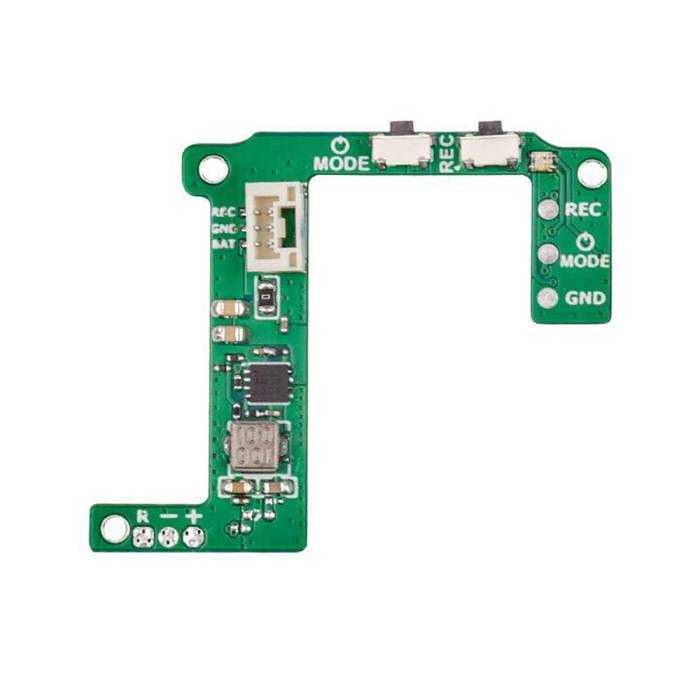

• Item: BEC Board for GoPro Hero
• Weight: 1.48g
• Output: 5V@2A
• Input Voltage: 2-4S
• Connector: GH 1.25 3P Connector

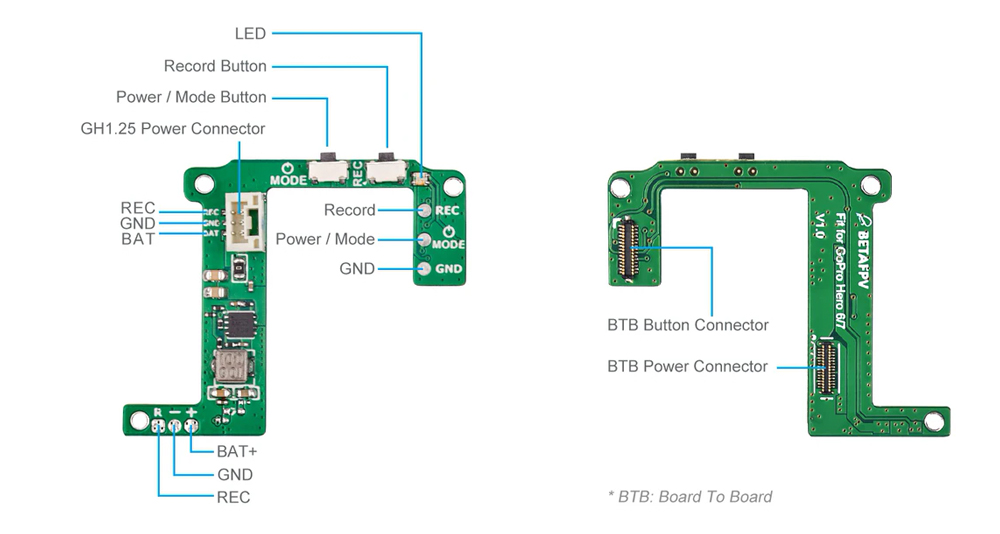

Diagram Board

The two buttons on the BEC board has the same function as the stock GoPro buttons. Three actions we will use frequently.

• Power On - Press the Power/Mode button and the LED flashes three times and light off.
• Start Record - Press the Record button once and LED flashes slowly. If LED flash once and light off, it means there is no SD card.
• Stop Record - Press the Record button and LED stop slow flashing.

LED Status

Under normal operation, plug the GH1.25 connector into the GoPro Lite camera firstly, then connect with the battery. The LED will flash once, then you should press the Power/Mode button once in a second to power on. The LED on the BEC board has the same status as the stock LED on the GoPro mainboard.

Includes

• 1 x BEC Board for GoPro Hero
• 1 x H1.25 Power Cable (80mm 30AWG)
