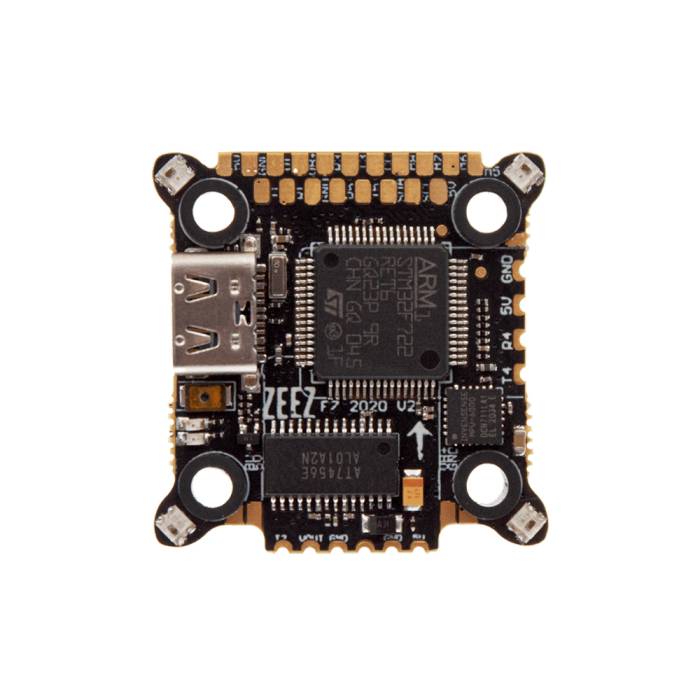

The Zeez F7 V2 2020 is an 8-Motor Output Flight Controller including an F7 processor designed with top-of-the-line hardware. This new V2 edition has improved stability and power supply cleaning. Pads are now easier to solder with added copper surrounding all pads to grant more strength. This FC is DJI HD System ready with a simple plug-and-play configuration. Get ready for the optimal flight experience with ZEEZ!

Features

• 8-Motor Output Compatible
• DJI HD System Ready
• OSD Chip for Analog Video
• Plug and Play Configuration
• 5V -3A Regulator to power all peripheral
• LC Filter to power Analog Camera and VTX
• 16MB Flash Memory for Blackbox Data Records
• Onboard 9V - 3A Regulator to power DJI Air Unit
• Spaces/Pads for TBS Crossfire and TBS Unify NANO32 for Low-Profile Assembly

Specifications

• Port: 12C
• UARTS: 5
• Chip: OSD
• Processor: F7
• Cable: USB-C
• Battery Input: 3S-6S
• Barometer: BMP280
• Flash Memory: 16MB
• Gyro/ACC : MPU6000
• 4 Onboard RGB LEDs
• Mounting Pattern: 20x20mm

Includes

• 1x Zeez F7 V2 2020 Flight Controller
• 1x Hardware Kit
