XILO Stax V2 F4 Flight Controller

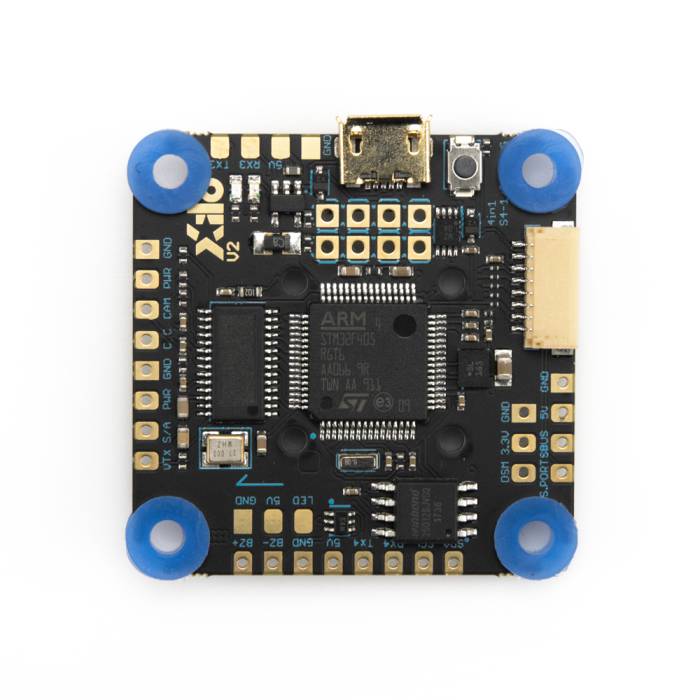

The XILO Stax V2 F4 Flight Controller combines powerful F4 processing power with a host of features such as receiver mounting and VTX remote power switching. Plug n' play allows stacking with your favorite 4-in-1 ESC.
Share

About this product

Xilo Stax V2

XILO STAX V2 SERIES

The XILO Stax V2 F4 flight Controller continues XILO's tradition of giving you high-quality FPV gear for a low price point. And it couldn't be easier to install and use on your favorite airframe!

Use this F4 FC with the ESC of your choice or pair it with the XILO Stax V2 ESC for seamless integration into your quad. The Stax V2 uses a standard 30.5x30.5 mounting hole configuration. The FC includes M3 silicone mounting grommets to reduce vibrations to your stack, ensuring accurate readings from your electronics.

V2 UPDATES

  • The video power switch function has been removed, but we put one more 10V BEC on it.
  • DJI Air unit connector added (On the backside)
  • Gyro changed to BMI270

XILO... AFFORDABILITY REDEFINED.

Whether you are looking for an FC for a brand new build or just to freshen up an older quad, the XILO Stax V2 will get the job done, without breaking the bank. Remove the mess of soldering and the chance of making a mistake during build time. The Stax plug n' play capability allows you to simply connect a compatible ESC to the FC with an 8pin harness, simply wire up your motors and accessories, and you are good to go! This FC uses F4 processing power to allow complex power management without a hitch. This FC gives you plenty of headroom to push your mini quads to the limit.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

Features

  • Latest Gen. firmware using BLHeli_32 with telemetry
  • Lightweight, and compact size
  • 3-6s LiPo battery compatible
  • 3x Receiver direct mount
  • WS2812b LED Strip

Specifications

  • Dimensions: 36 x 43mm (including the power pads)
  • Smartaudio / Tramp VTX Control: Yes
  • Mounting Holes: 30.5 x 30.5mm
  • BEC: 5V 2A / 10V 2A
  • Camera Control: Yes
  • VBAT input: 8-30V
  • Input: 3-6s LiPo
  • PWM output: 4
  • OSD: AB7456
  • Processor: F4
  • IMU: BMI270
  • LC Filter: Yes
  • Weight: 12g
  • Beeper: Yes
  • MCU: F405
  • UARTs: 6
  • I2C: 1

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Includes

  • 1x XILO Stax V2 F4 Flight Controller
  • 12x Silicone Grommets (Color Varies)
  • 1x FC Connecting Wire Set

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 17854
UPC (GTIN) 764613350968
Manufacturer XILO
Mounting Pattern 30.5x30.5mm
NDAA Compliant No
