JHEMCU F7-XSD Pro DJI Flight Controller - Mini 20x20 - Standard
JHEMCU F7-XSD Pro DJI Flight Controller - Mini 20x20 - Standard
$59.99
$47.99
Out of Stock
Only left for same day shipping. Order now!
Earn

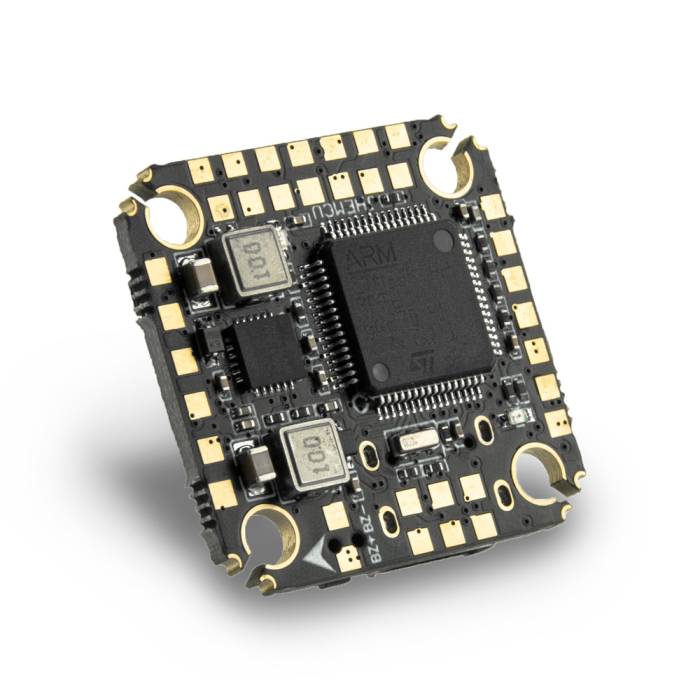

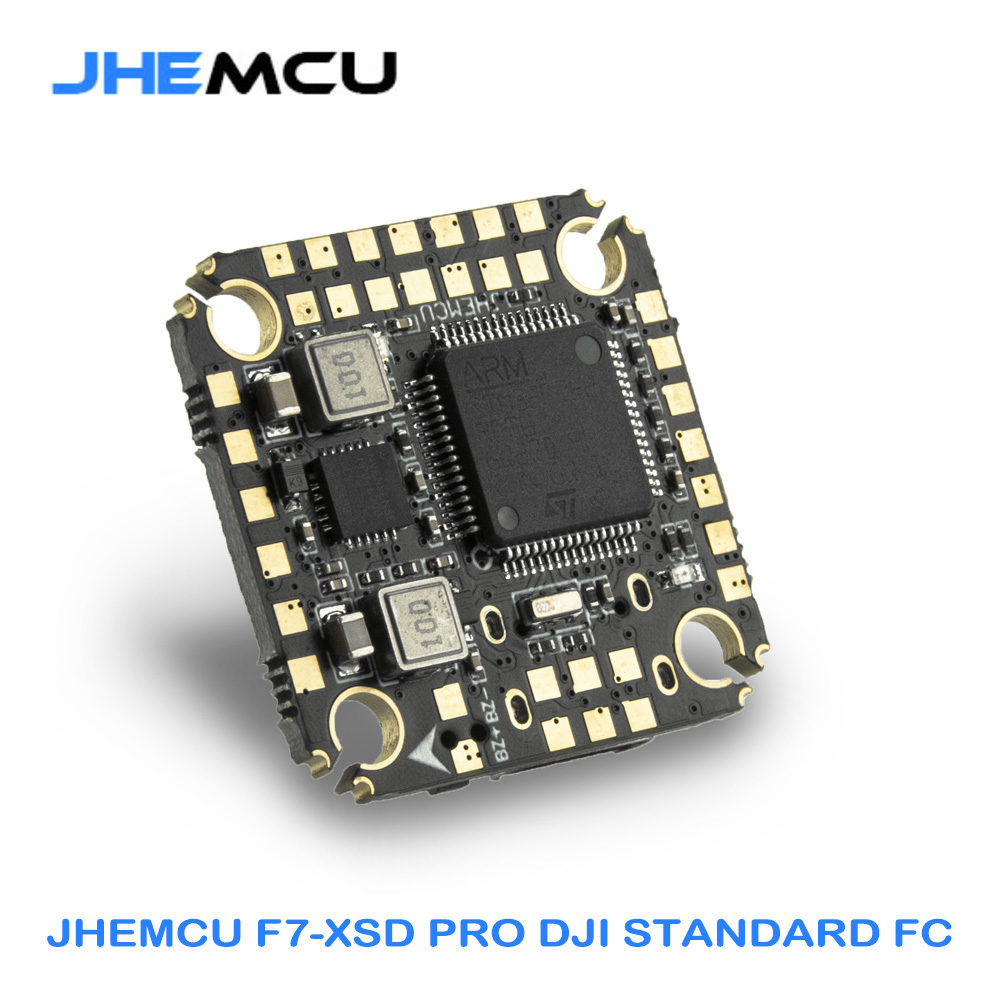

JHEMCU F7-XSD Pro DJI Flight Controller - Mini 20x20 - Standard
The JHEMCU F7-XSD Pro Flight Controller is designed with DJI pilots in mind! This standard version F7 FC is ultra-light at 4.7g and handles up to 6S batteries.
About this product
The JHEMCU F7-XSD Pro Flight Controller is designed with DJI pilots in mind! This standard version F7 FC is ultra-light at 4.7g and handles up to 6S batteries. This FC has a strong performance and works with Betaflight technology. Break through the limits of your quad and explore the possibilities!
VIDEO: F7 HD flight controller stack for drone - JHEMCU F7
Features
- Standard Version without Barometer or Blackbox.
- DJI Compatibility
- 6 UARTs
Specifications
- Input Voltage: 2-6S LiPo
- Firmware: JHEF7DUAL
- Dimensions: 27x27mm
- ESC Connections: Yes
- BEC: 5V 3A, 10V 2A
- Current Sensor: Yes
- DJI Compatible: Yes
- MCU: STM32F722
- Stack Size: 20x20
- Gyro: MPU6000
- UARTs: 6 Sets
- Barometer: No
- Black Box: No
- Weight: 4.7g
- Buzzer: Yes
- OSD: Yes
Includes
- 1x JHEMCU F7-XSD Pro DJI Flight Controller - Mini 20x20 - Standard
- 8x M2 Shock Absorbers
- 1x DJI VTX Cable
- 4x M2x20 Screws
- 1x 4in1 ESC
- 1x 8p Cable
- 8x M2 Nuts
More Information
| SKU | 17224 |
|---|---|
| UPC (GTIN) | 764613343489 |
| Manufacturer | JHEMCU |
| Mounting Pattern | 20x20mm |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
