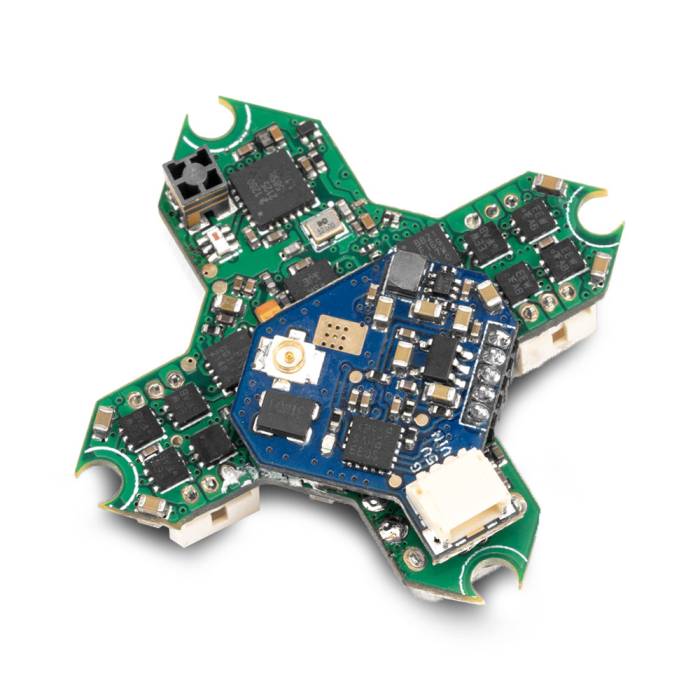

iFlight BLITZ F4 Whoop AIO Board - F411 FC + 5A 1S ESC + 50mW VTX + ELRS 2.4Ghz RX
In Stock
About this product
What if you could get the combined MCU speed and ESC power of a big stack, but carefully arranged on a 25x25 whoop size board? That would be crazy right? Well, iFlight just did it... This is the new iFlight BLITZ series AIO FC for your ultimate build. A future-proof all-in-one FC featuring an F411 flight controller, 5A ESC, 50mW VTX, and a built-in ELRS receiver. Lightweight, minimum size, minimum work.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing
Features
- Support BLHeliSuite programmable
- Built-in ELRS 2.4G Receiver
- 5A continuous current
- Super light only 4.8g
- MCU：STM32F411
- Power supply: 1S
- Gyro: BMI270
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
IFLIGHT BLITZ F411 FC + ELRS RX
- Weight: 4.8g (with power cable, VTX, and VTX antenna)
- Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)
- FC Firmware: IFLIGHT_BLITZ_F411RX
- Supported Protocols: ELRS 2.4Ghz
- BEC output: 5V 500mA
- Connector: Micro-USB
- MCU: STM32F411
- INA pad: n uart2
- Barometer: NO
- Size: 29*29mm
- Gyro: BMI270
- Blackbox: NO
IFLIGHT BLITZ 5A 1S ESC
- ESC Firmware: O-H-30 BLS 16.8 (BlheliS) / Bluejay Q-H-50 (Bluejay)
- Signal Support: Dshot, Oneshot, Multishot
- Current: 5A continuous and peak 6A
- Current sensor: yes
- ESC Telemetry: NO
- Current scale: 400
- Input: 1S
50MW VTX
- Protocol: Smart audio
- Power: PIT/25/50mW
- Connector: UFL/IPEX
- Input voltage: 5V
- Channels: 48CH
IMPORTANT NOTES
- F.PORT protocol RX input support, telemetry not supported.
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x iFlight BLITZ F4 V1 Whoop AIO Board - F411 FC + 5A 1S ESC + 50mW VTX + ELRS 2.4Ghz RX
- 4x M2 Dampers
- 1x Antenna
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 19437 |
|---|---|
| UPC (GTIN) | 764613352719 |
| Manufacturer | iFlight |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 5 Amps |
| Flight Controller Processor | F7 |
| Voltage | 1 Cell (3.7v) |
| ESC Firmware | BLHeli_S |
| Number of ESC's | 4 ESC's in 1 |
