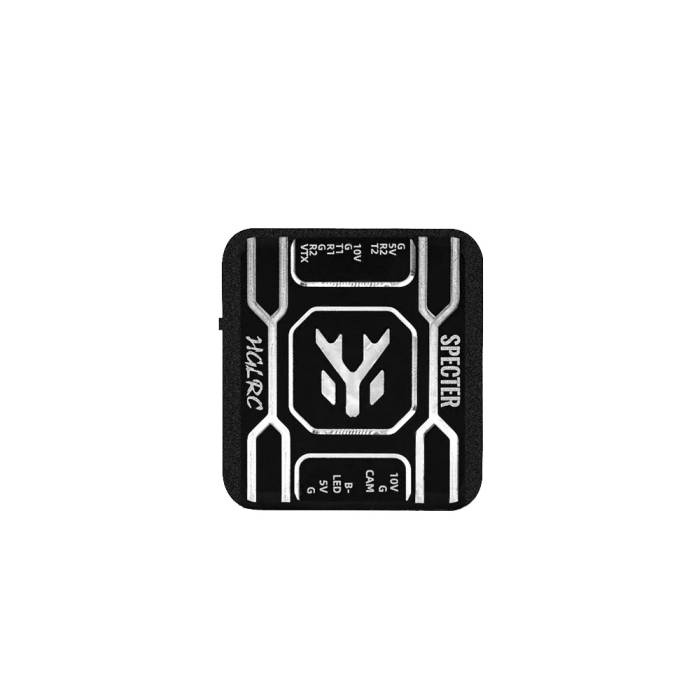

HGLRC Specter F722 Mini HD Flight Controller - MPU6000 - 20x20
HGLRC Specter F722 Mini HD Flight Controller - MPU6000 - 20x20
$59.99
In Stock
Only left for same day shipping. Order now!
HGLRC Specter F722 Mini HD Flight Controller - MPU6000 - 20x20
The HGLRC Specter F722 Mini HD Flight Controller - MPU6000 is a culmination of over a year's technology development, offering an optimized design and improved circuitry for a refined flying experience.
About this product
The HGLRC Specter F722 Mini HD Flight Controller - MPU6000 is a culmination of over a year's technology development, offering an optimized design and improved circuitry for a refined flying experience. This flight controller is designed for those who prioritize smooth control and a modular, plug-and-play setup.
Features
- Utilizes the high-performance STM32F722 processor, boasting a computing speed of up to 216 MHz, ensuring smooth control and rapid response.
- Features the high-performance MPU6000 gyroscope, enhancing usage stability, and also reserves 42688 gyroscope pads for versatility.
- Supports full module direct plug-in connection for a user-friendly, solder-free, modular setup.
- Personalized CNC heat sink shell design prevents debris intrusion and improves overall usage efficiency.
- Boasts a 16MB large-capacity black box for comprehensive recording of flight data.
- Integrated BF wireless Bluetooth for easy parameter adjustments via the SpeedyBee app, allowing modifications to serial port, PID, and other flight control parameters.
- Includes a 10V electronic switch, programmable through BF for convenient power management, particularly beneficial for addressing heating issues during prolonged operation.
- Enhanced with nano-scale coating on both sides of the board, offering waterproof, moisture-proof, and corrosion-resistant properties.
- Flight controller dimensions are 37mmx34mmx9.8mm with an installation hole pattern of 20x20mm, M3, and a weight of 18g, making it compact and lightweight.
Specifications
- Flight control firmware: HGLRCF722 MINI
- MCU: STM32F722
- GYRO:MPU6000
- OSD:AT7456E
- Barometer: BMP280
- Black box: 16MB
- UARTS: 5 groups
- BEC: 10V2A/5V2.5A
- Flight control size: 37mmx34mmx9.8mm
- Installation hole position: 20x20mm, M3
- Weight:18g
Includes
- 1x HGLRC Specter F722 Mini HD Flight Controller - MPU6000 - 20x20
- 1x 30AWG 25mm double-ended SH1.0-8P cable
- 1x 30AWG 70mm single-head SH1.0-7P/single-head SH1.0-6P DJI cable
- 1x 30AWG 70mm single-head SH1.0-7P/single-head GH1.25-6P VTX cable
- 1x 30AWG 60mm single-head SH1.0-3P/single-head 1.25-3P camera cable
- 1x 30AWG 100mm single-head SH1.0-4P receiver cable
- 4x M3*20 hexagon socket screws
More Information
SKU | 21365 |
---|---|
UPC (GTIN) | 724376357901 |
Manufacturer | HGLRC |
Mounting Pattern | 20x20mm |
NDAA Compliant | No |
Item Returns | This item can be returned |
