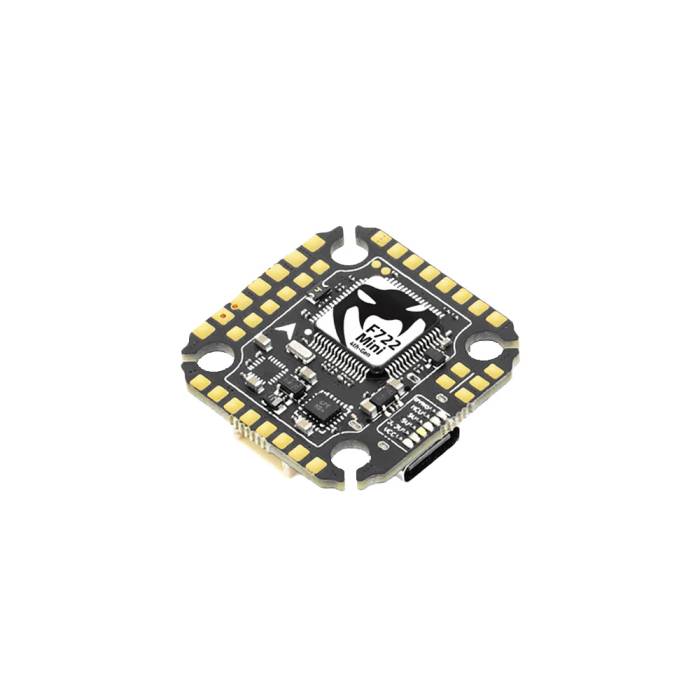

Diatone Mamba MINI MK4 F722 Flight Controller - MPU6000
Diatone Mamba MINI MK4 F722 Flight Controller - MPU6000
In Stock
About this product

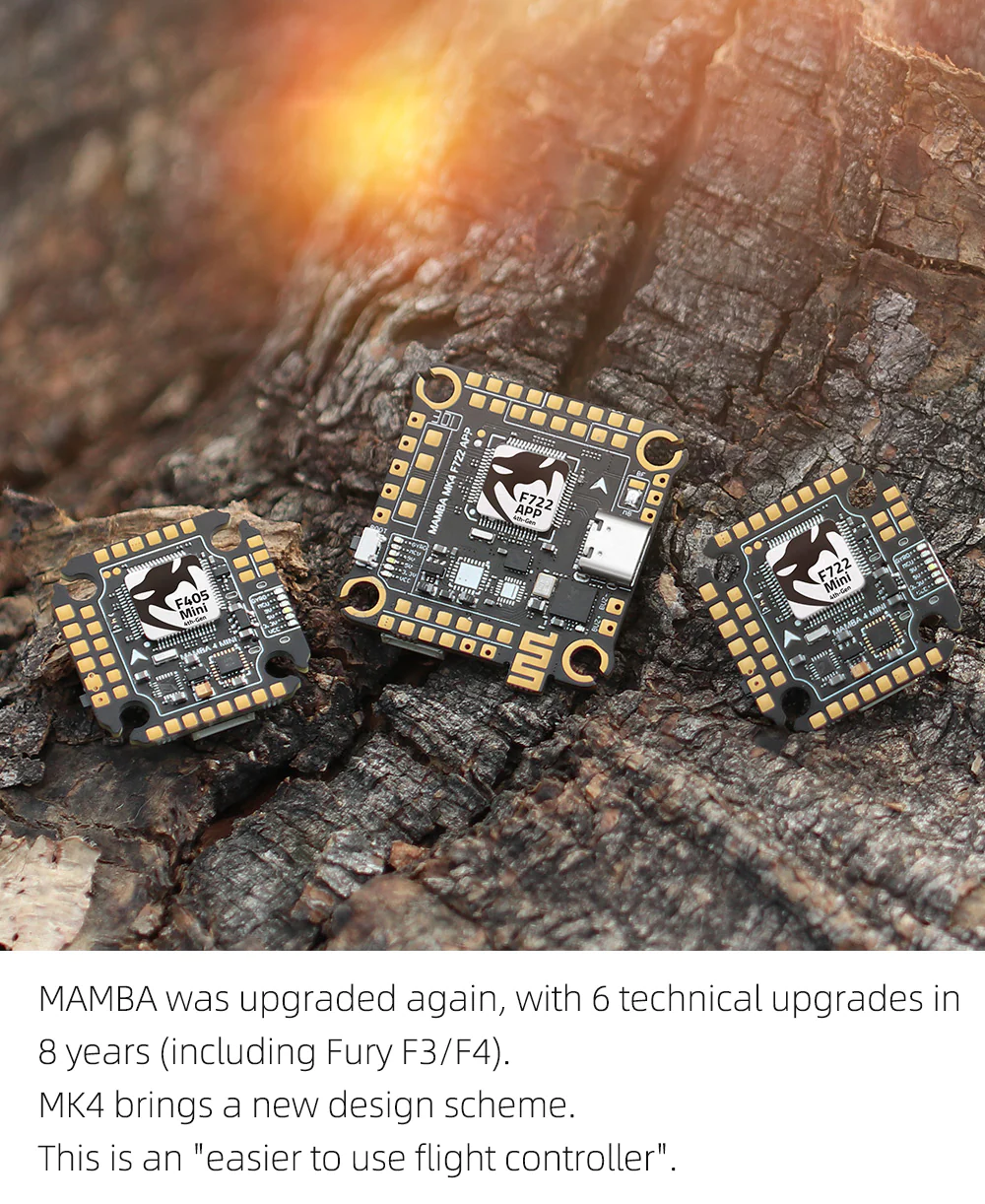

The Diatone MK4 F722 MINI FC (MPU6000) is the latest evolution in the renowned MK series, bringing forth a slew of improvements that enhance user experience and flight performance. Built with precision engineering and a focus on reliability, this flight controller is designed to elevate your FPV experience.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing

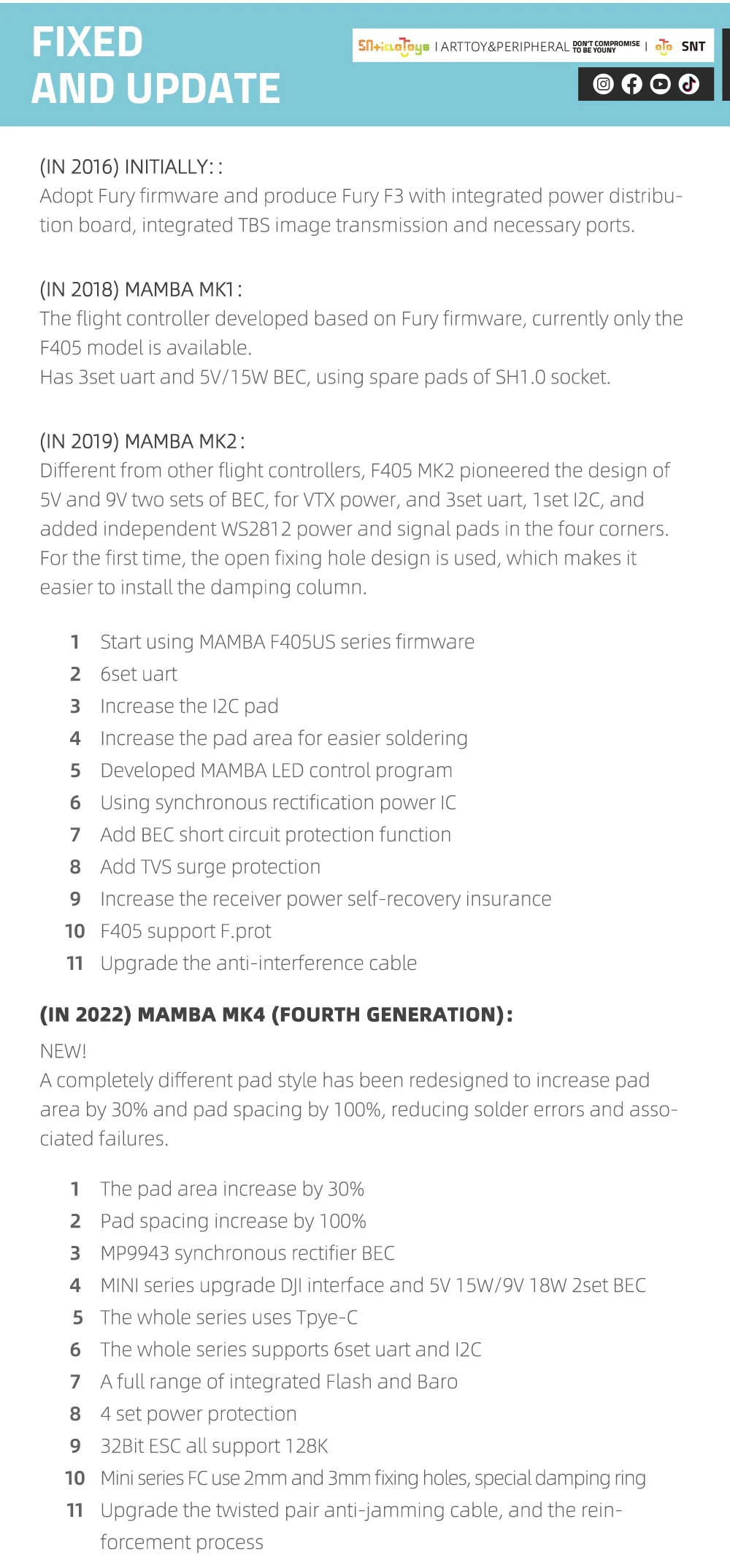

Features

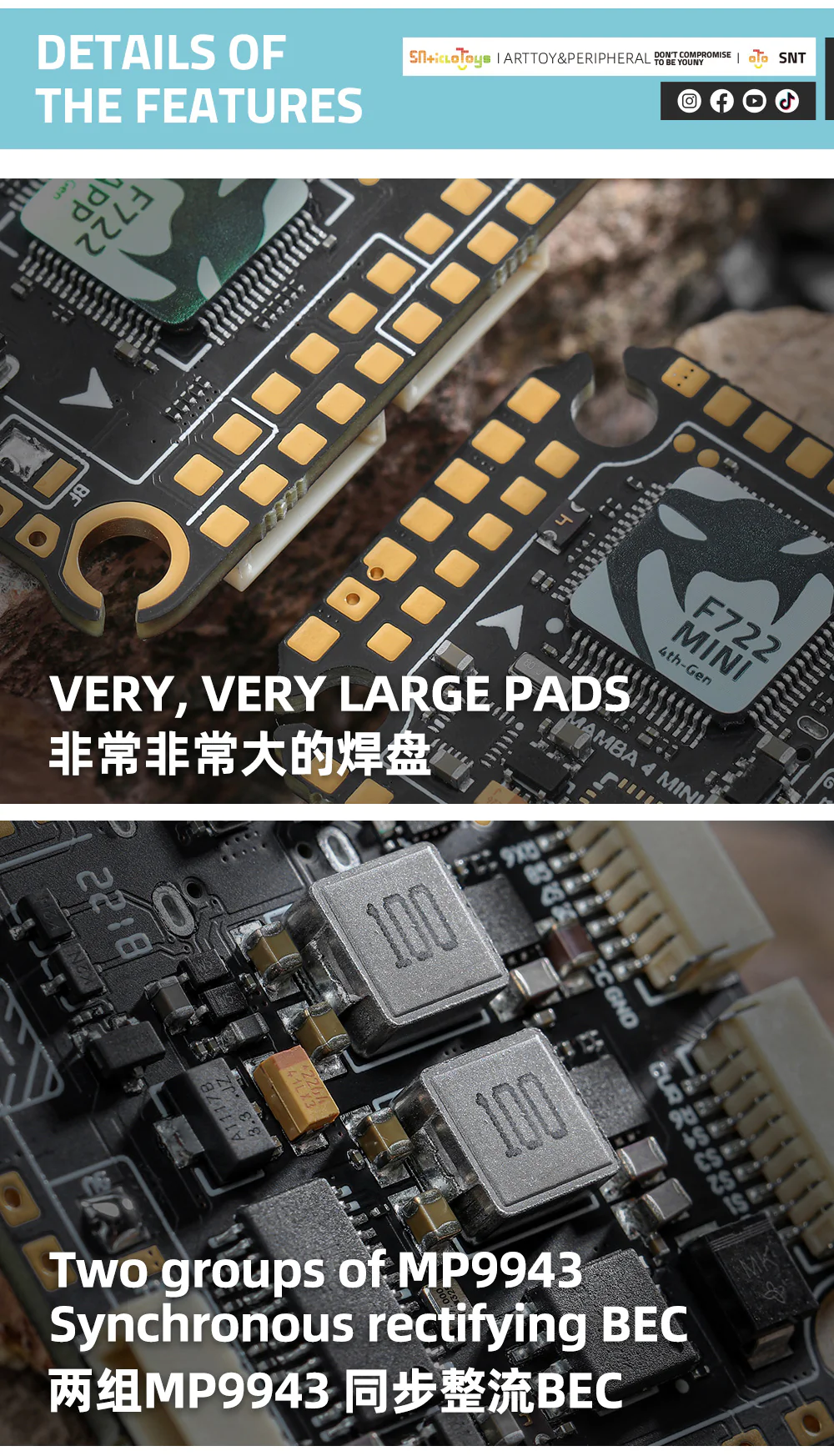

- Pad area has seen a significant 30% increase.
- Pad spacing benefits from a 100% boost.
- Incorporation of the MP9943 synchronous rectifier BEC.

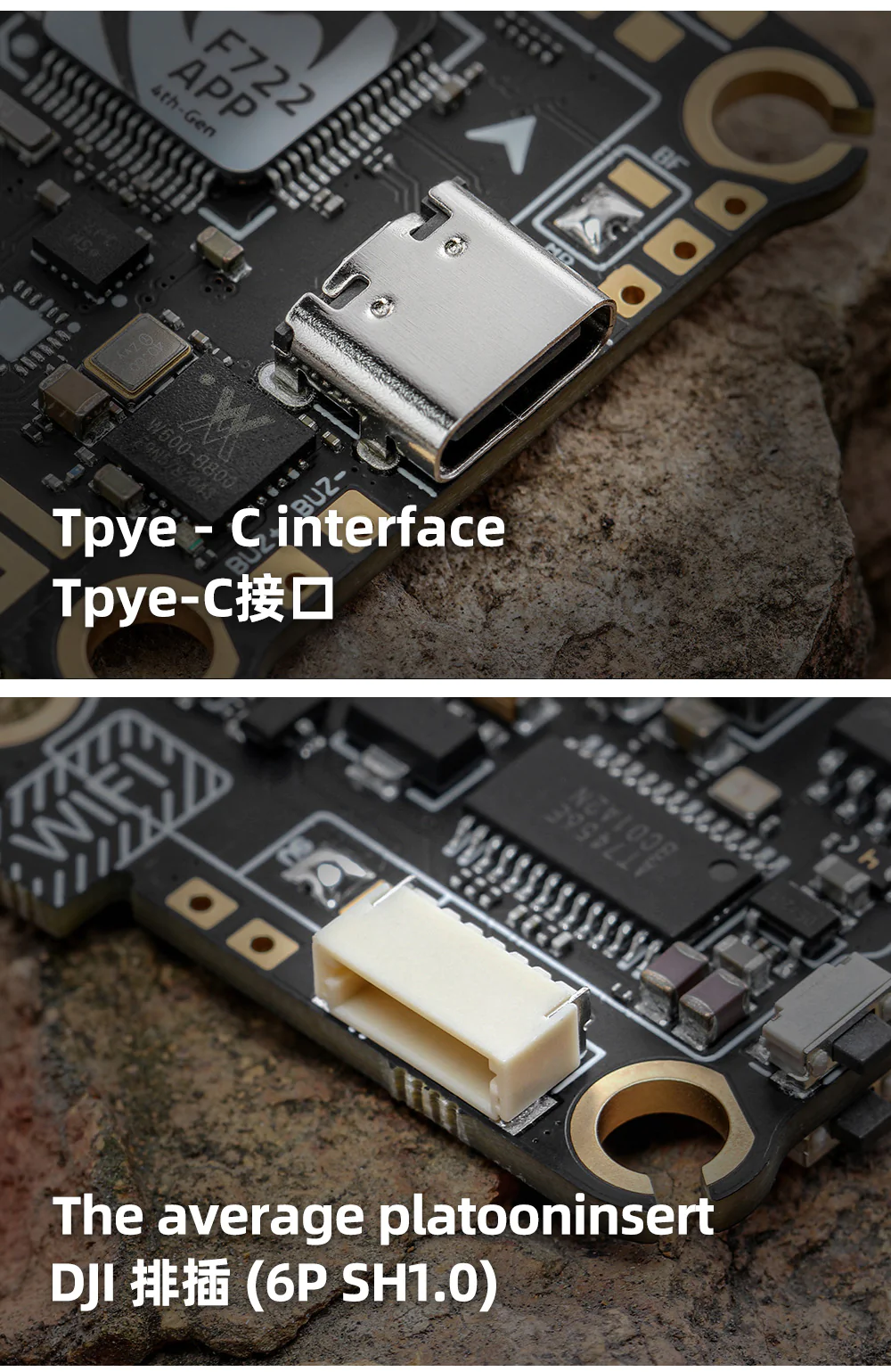

- Transition to Type-C connectivity for efficient interfacing.
- Comprehensive integration of flash and barometric sensor.
- 32Bit ESC compatibility with 128k support.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- MCU: STM32F722
- Frequency: 216MHz
- GYRO: MPU6000
- OSD: AT7456E
- Blackbox: 16M Memory
- Barometer: Yes
- UARTs: 6 sets

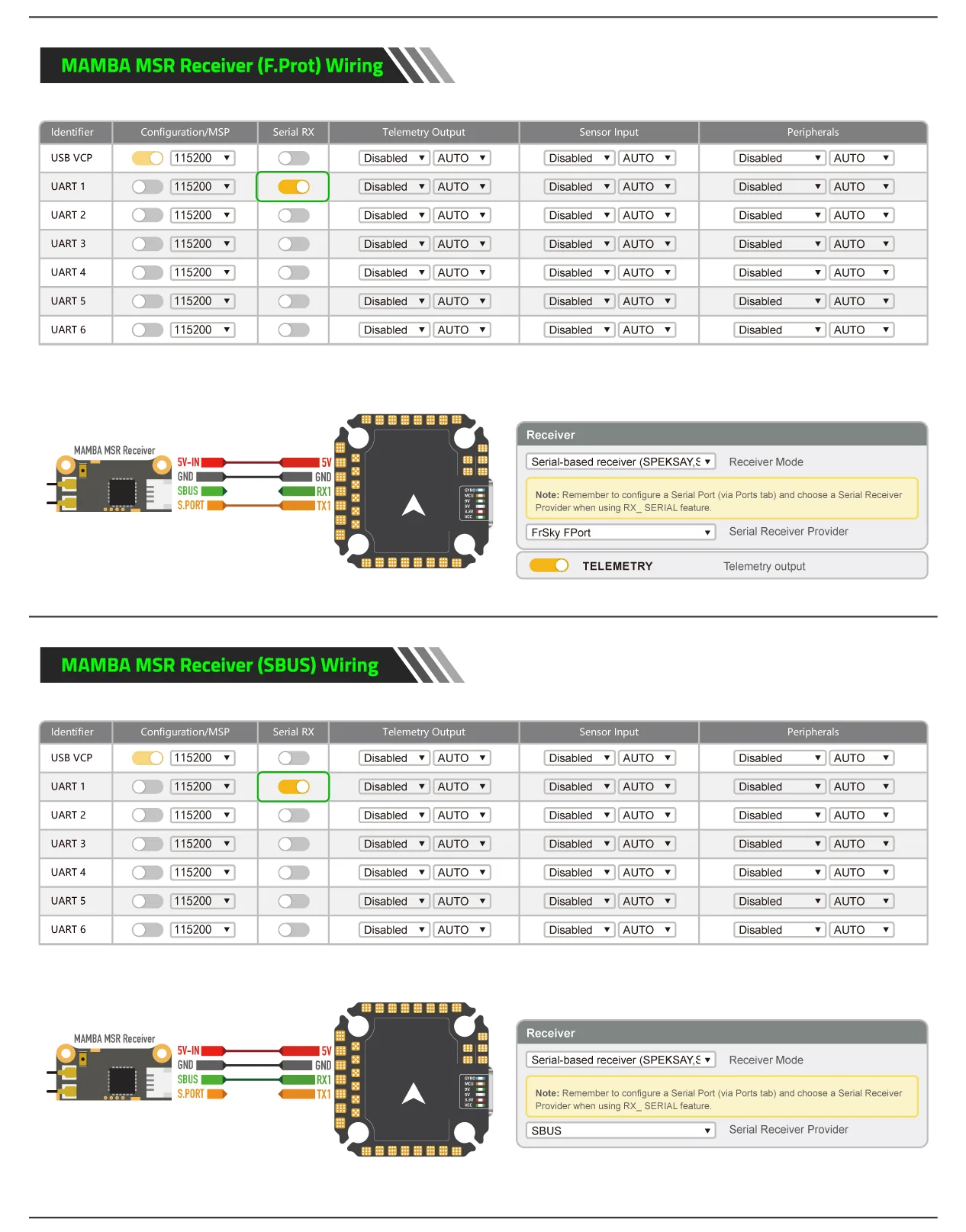

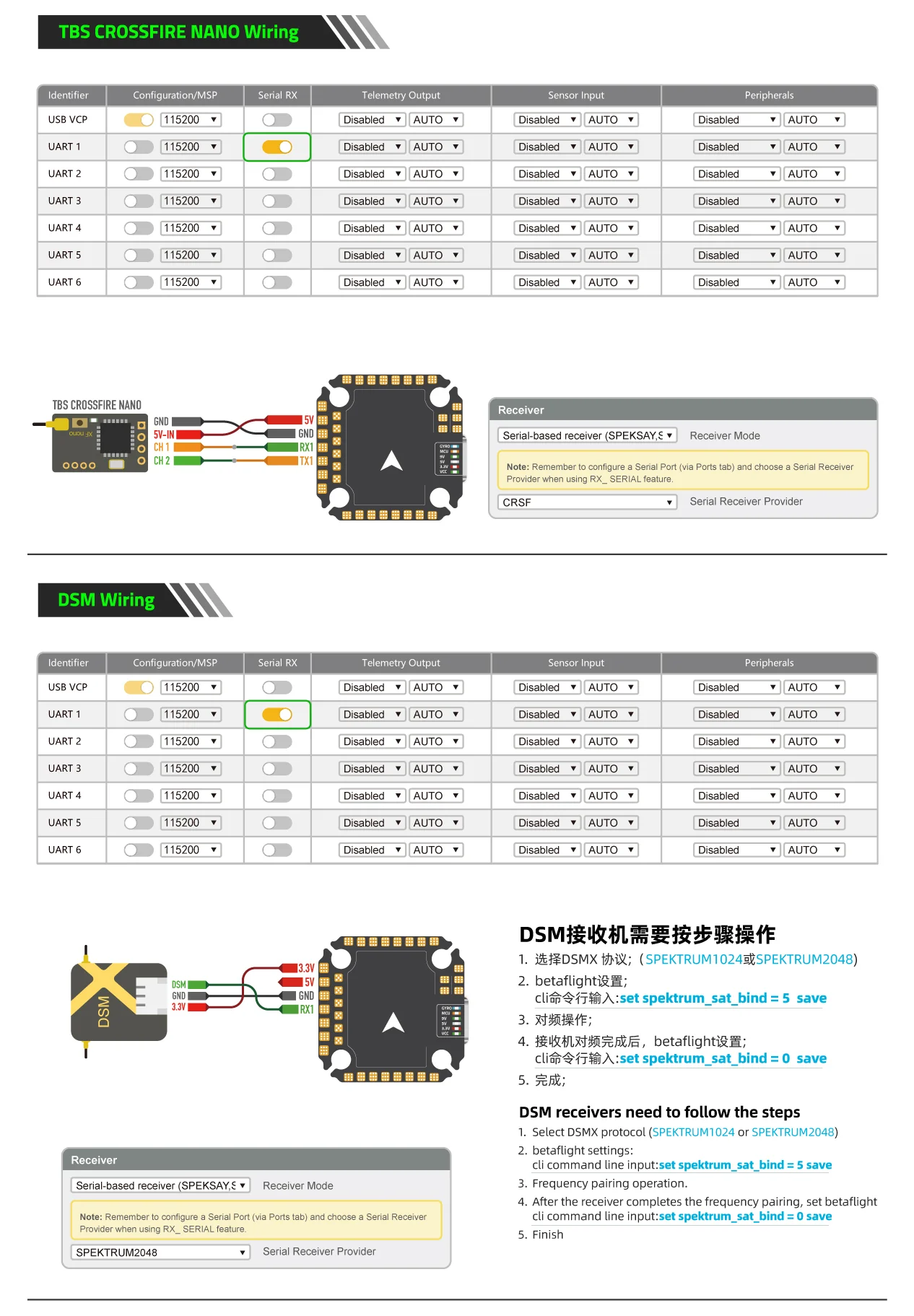

- Receiver: Compatibility includes TBS, SBUS, IBUS, and DSM.
- I2C: Yes
- F.Port: Yes

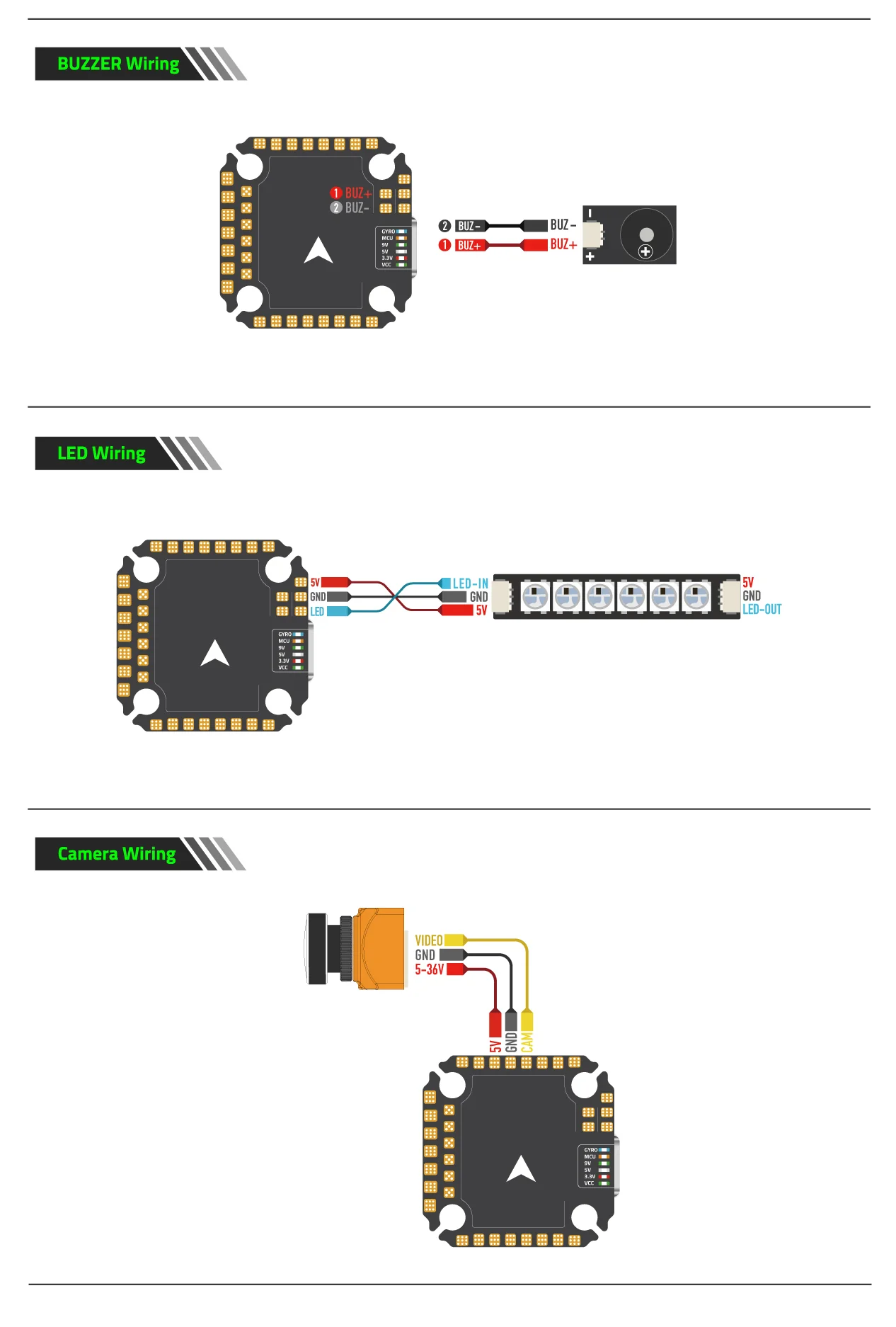

- Buzzer Pad: Yes
- CURR Pad: Yes
- ESC Signal: 8 set
- BEC 3.3V: 0.5A
- BEC 5V: 2.5A
- BEC 9V: 2A
- MB LED: Yes

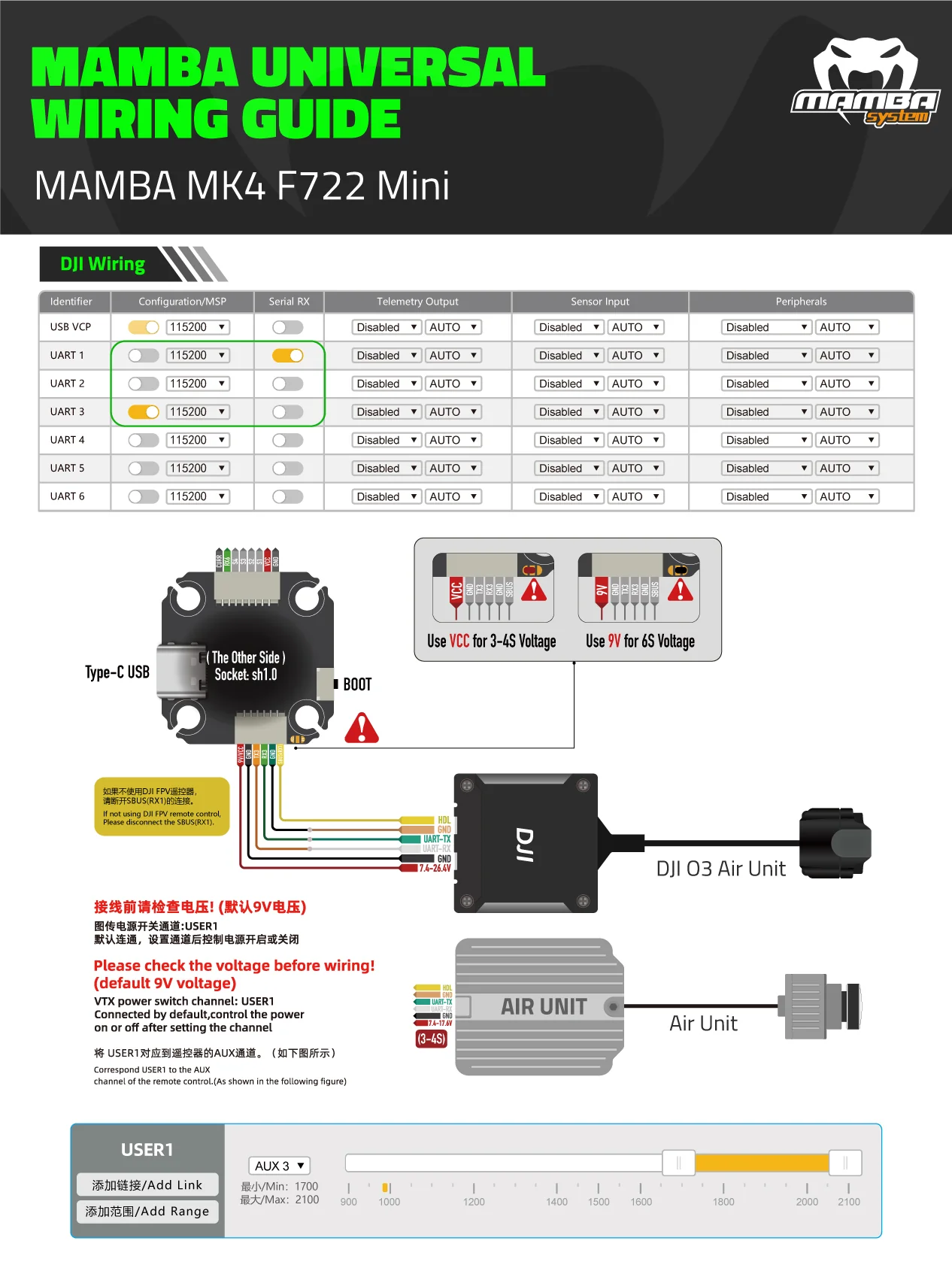

- AIR UNIT Port: Yes
- VTX Switch: Yes
- BEC Protection: Yes
- Receiver Protection: Yes
- TVS Protection: Yes
- Input: 6S
- Software: Betaflight.
- Mounting: The dimensions are 20.0x20.0mm and it can use either M3 or M2 screws.
- Size: 29.0x29.5x6.5mm
- Weight: 6.0g
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)

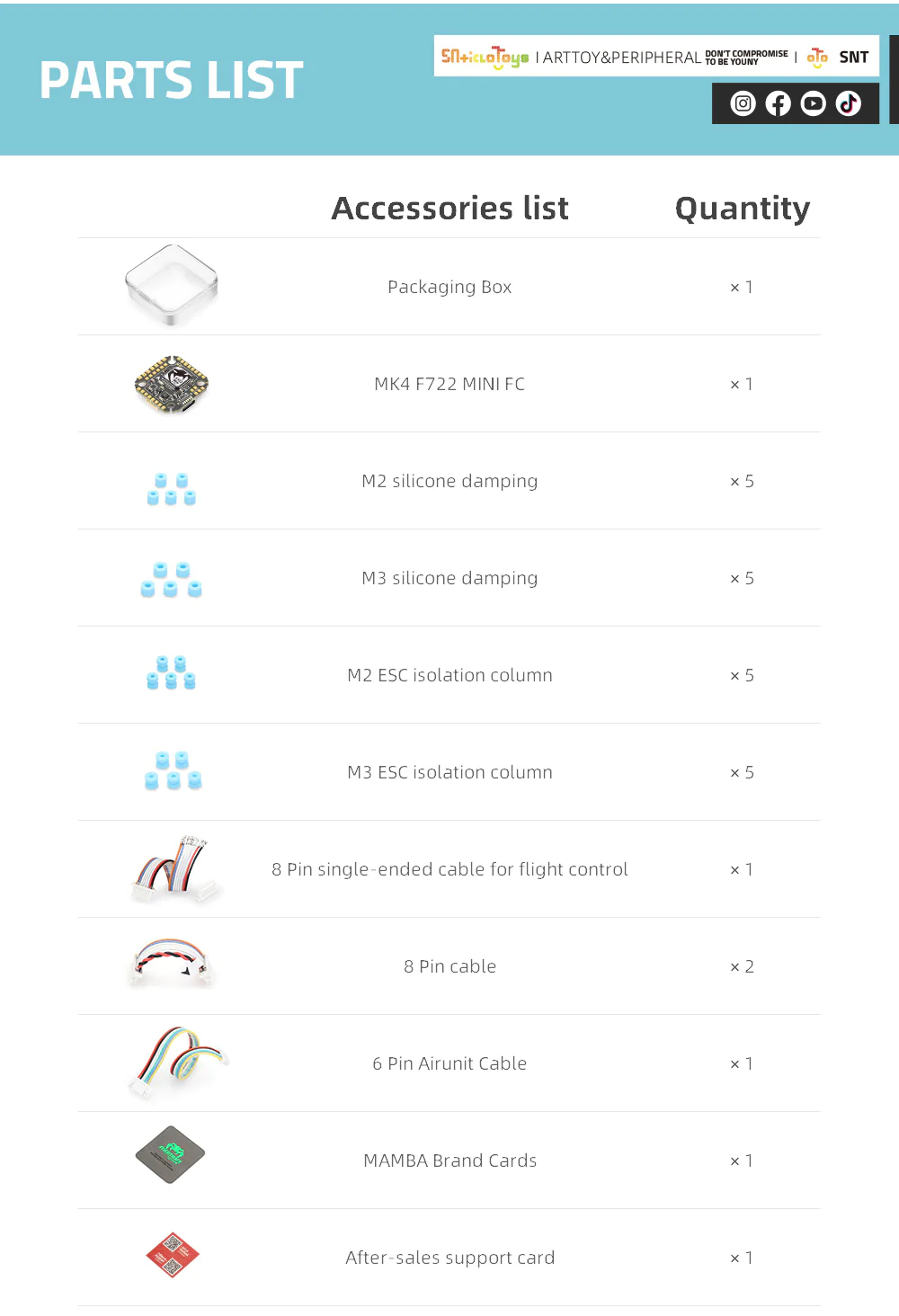

Includes
- 1x Diatone Mamba MINI MK4 F722 Flight Controller - MPU6000
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 20393 |
|---|---|
| UPC (GTIN) | 724376355587 |
| Manufacturer | Diatone |
| Mounting Pattern | 30.5x30.5mm |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
