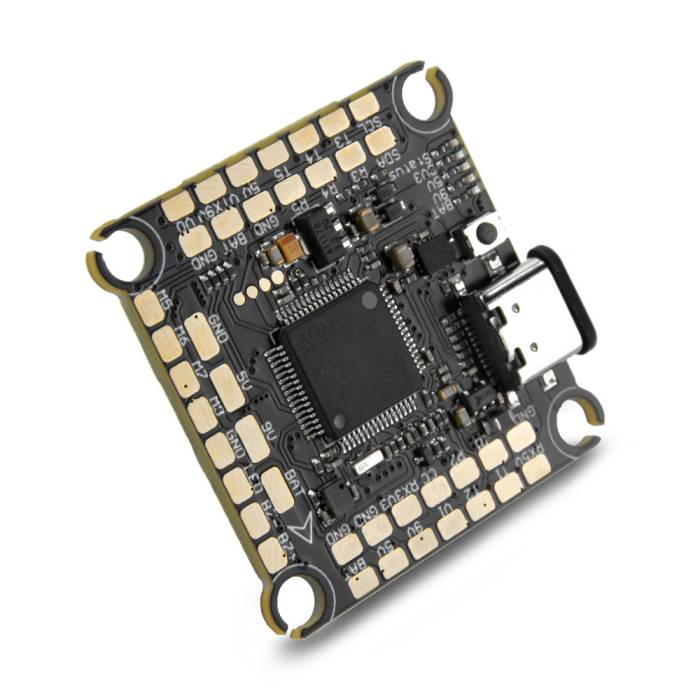

Bardwell F7 V2 3-6S 30x30 Flight Controller - JBF7 V2

The Bardwell F7 V2 Flight Controller (JBF7 V2) features an F7 processor, ICM20602 Gyro, several DC power outputs, and 8 motor pads. The V2 now features USB-C, a VTX pit switch, solderless plugs, a barometer, iNav support, and LEDs.

V2 CHANGELOG

• Small Status LEDs
• USB-C Connector
• Solderless Plugs
• VTX Pit Switch
• iNav Support
• Barometer

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: My new FC is here! JBF7 V2 has USB-C, solderless plugs, iNav support, and more!

• Board layout focused on flexibility and resilience. You can build what you want, how you want, without stress
• Plug-and-play support for DJI Air Unit. Voltage regulator allows up to 6S input
• 9V regulator rated for 3A verified to power HDZero Freestyle and DJI VTX
• Separate DJI and Analog targets with default customized for each use
• The Manual feature set is written and selected by Joshua Bardwell
• 4-in-1 plug also has solder pads for those who want to direct solder
• 8 motor pads for easy resource remapping (or build an octocopter)
• SD card for Blackbox logging
• Small Status LEDs
• USB-C Connector
• Solderless Plugs
• VTX Pit Switch
• iNav Support
• Barometer

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Plugs: 4in1 ESC, RX, Analog Cam, HD Cam, VTX, LED/Buzzer
• Power Outputs: 5V 3A, 9V 3A (w/ Pit Switch), 3.3V, vBat
• UARTs: 5 (I2C SDA/SCL shared with UART 3)
• Weight: 8.3g (w/ gummies & USB Protector)
• Mounting Pattern: 30.5x30.5mm
• Input Voltage: 3-6S LiPo
• Barometer: DPS310
• BF Target: JBF7 V2
• MCU: STM32F722
• Gyro: BMI270

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Bardwell F7 V2 3-6S 30x30 Flight Controller - JBF7 V2
• 1x DJI Air Unit / HD Camera Cable
• 1x Analog Camera Cable
• 1x LED / Buzzer Cable
• 1x Analog VTX Cable
• 1x 4-in-1 ESC Cable
• 1x USB-C Protector
• 1x Set of Dampers
• 1x Receiver Cable
