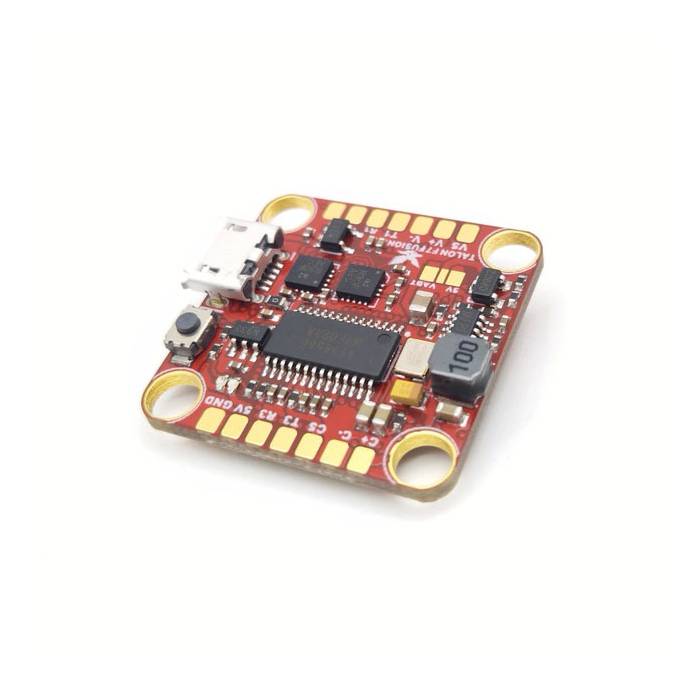

The Talon F7 Fusion is almost identical to the Talon F7 but with one key difference. The Fusion utilizes a dual gyro system set up in 90° phase to each other. These two ICM20602 gyros work in tandem to produce ultra-filtered data to your FC to give you the most locked-in flying experience yet!

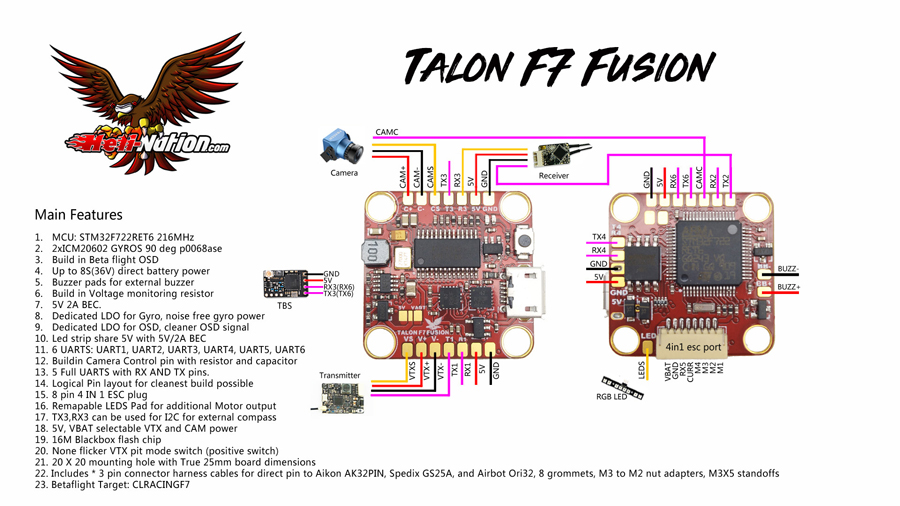

Features

• MCU: STM32F722RET6 216MHz
• 2x ICM20602 GYROS 90 deg phase
• Built-in Betaflight OSD
• Up to 8S (36V) direct battery power
• Buzzer pads for external buzzer
• Built-in voltage monitoring resistor
• 5V 2A BEC
• Dedicated LDO for Gyro, noise-free gyro power
• Dedicated LDO for OSD, cleaner OSD signal
• Led strip shares 5V with 5V/2A BEC
• 6 UARTS: UART1, UART2, UART3, UART4, UART5, UART6
• Built-in camera control pin with resistor and capacitor
• 5 Full UARTS with RX AND TX pins
• Logical pin layout for cleanest build possible
• 8 pin 4 IN 1 ESC plug
• Remappable LED pad for additional motor output
• TX3, RX3 can be used for I2C for external compass
• 5V, VBAT selectable VTX and CAM power
• 16M Blackbox flash chip
• No flicker VTX pit mode switch (positive switch)
• M4 Can be selected either led_strip signal or M4 signal for RPM filtering
• 20 X 20 mounting hole with true 25mm board dimensions

Note: To get Motor 4 to work please use the CLI command below using Betaflight V4.0.4. A custom hex is coming soon for 3.5.7 and 4.0.4.

Resource MOTOR 6 None

Resource MOTOR 4 C08

Save

To get 5V to your VTX please go to the mode tab in Betaflight and setup a mode switch for vtx_pit

Videos

Includes

• 1x Flight Controller
• 1x Hardware Kit
• 1x 8pin Harness
• 1x XT30 Connector
