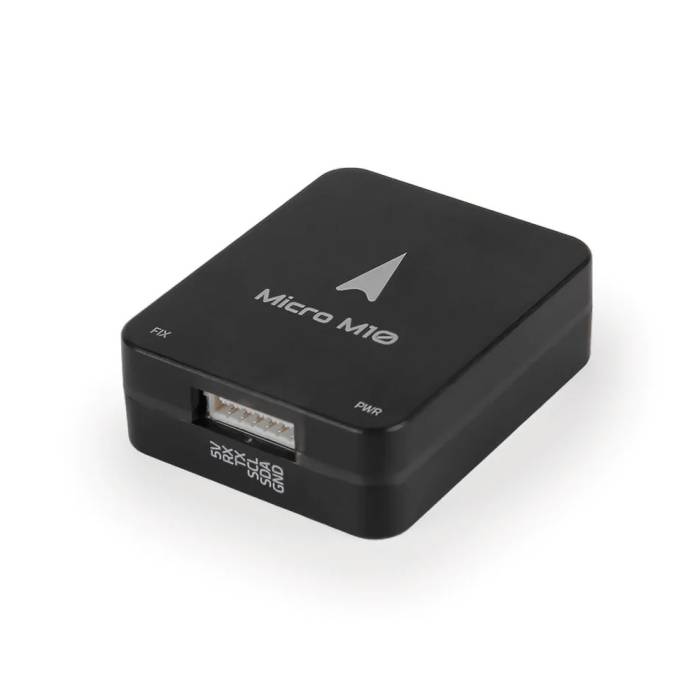

This Holybro Micro M10 GPS unit utilizes multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver capable of receiving and tracking multiple GNSS systems. Thanks to the multi-band RF front-end architecture, all four major GNSS constellations - GPS, Galileo, GLONASS, and BeiDou - can be received concurrently. Additionally, it comes equipped with the IST8310 compass.

The high-gain 25 x 25 mm² patch antenna delivers excellent performance, while the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.

Note: Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

VIDEO: (Insert Video Title here in Bold)

• Newest u-blox 10th Gen GNSS
• Fast & Accurate Positioning
• IST8310 Compass
• Small Form Factor

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Antenna: 25 x 25 x 4 mm ceramic patch
• Operating Temperature: -40°C ~ 80°C
• Nav. Update Rate: Up to 25 Hz
• Output Protocol: UBX, NMEA
• Dimensions: 34 x 28 x 11 mm
• GNSS Receiver: u-blox M10
• Default Baud Rate: 115200
• Input Voltage: 4.7V - 5.2V
• Port Type: JST-GH-6P
• Compass: IST8310
• Weight: 16g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x JST-GH 6-pin Colored Silicone Cable, 15 cm
• 1x JST-GH 6-Position Connector, 15 cm
• 1x Holybro Micro GPS Module w/ Case
