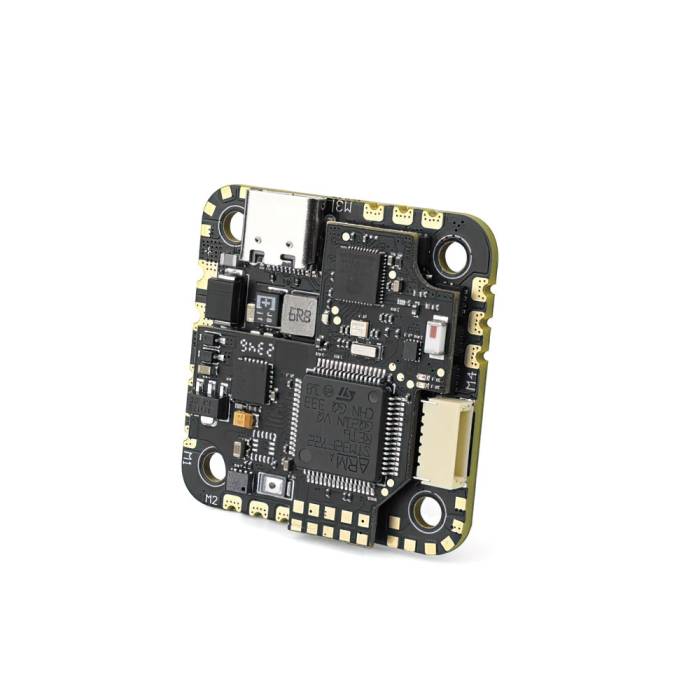

HGLRC Specter AIO - F722 FC - 25A 3-6S ESC - 25x25
In Stock
About this product
Experience unparalleled flight performance with the HGLRC Specter AIO, designed to elevate your flying experience. This advanced flight controller features the high-performance STM32F722 processor, boasting a computing speed of up to 216 MHz. This ensures smoother control, enhanced responsiveness, and a superior feel during operation.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- High-Performance Processor
- Dual Camera Signal Outputs
- Large-Capacity Black Box
- Enhanced Stability
- Modular Design


USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Installation Hole Position: 25.5 x 25.5 mm, M2
- Flight Control Firmware: HGLRCF722AIOV2
- Flight Controller: HGLRC SPECTER 25A AIO
- Input Voltage: 11.1V-22.8V / 3-6S LiPo
- Flight Control Size: 34 x 34 x 6.7mm
- ESC Firmware: Q-H-30-Bluejay
- Barometer: DPS310
- MCU: STM32F722
- Black Box: 16MB
- UARTs: 5 groups
- Gyro: MPU6000
- Weight: 12.05g
- OSD: AT7456E
- BEC: 5V 2A
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x 30AWG 75mm Single-Headed 1.25-3P Camera Cable
- 1x HGLRC Specter AIO - F722 FC - 25A 3-6S ESC - 25x25
- 1x 30AWG 70mm Double-Ended SH1.0-6P DJI Cable
- 1x 14AWG 100mm XT60 Power Cord
- 1x 18AWG 70mm XT30 Power Cord
- 1x Hardware Kit
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 22334 |
|---|---|
| UPC (GTIN) | 724376363452 |
| Manufacturer | HGLRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 25 Amps |
| Flight Controller Processor | F7 |
| Voltage | 3-6 Cell (12.6-25.2V) |
| ESC Firmware | BLHeli_S |
| Number of ESC's | 4 ESC's in 1 |
