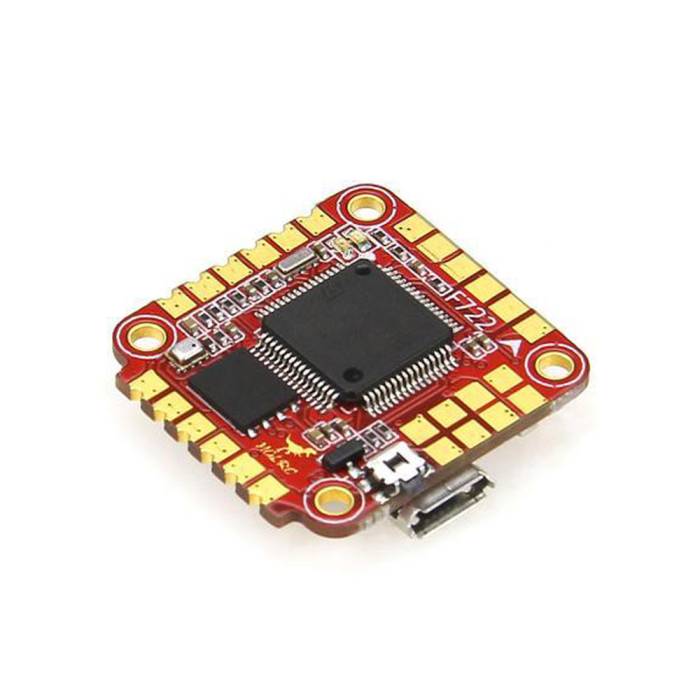

HGLRC Forward F722 Mini 2-6S 20x20 Flight Controller

The HGLRC Forward F722 Mini 2-6S 20x20 Flight Controller comes with an integrated barometer and 16M black box. Features MPU6000, includes 5 UARTS, STM32F722 RET6 CPU, and can easily be connected to your DJI Digital HD FPV System.

Features

• Integrated barometer and 16M black box.
• Maximum BEC 5V / 3A output
• Easy direct soldering for XM+, NANO receiver
• Quickly Connect DJI Air Unit (with DJI Version)

Specifications

• Item Name: Forward F722 mini Flight Control (or mini with DJI plug)
• MPU: MPU6000
• UARTS:5
• CPU:STM32F722 RET6
• Input Voltage:2-6S Lipo
• Built-in Betaflight OSD to adjust PID
• BEC Output:5V/3A
• BlackBox:16M
• Size:23.7x26.6mm
• Installing Hole:20X20mm.M2
• Weight:3.7g

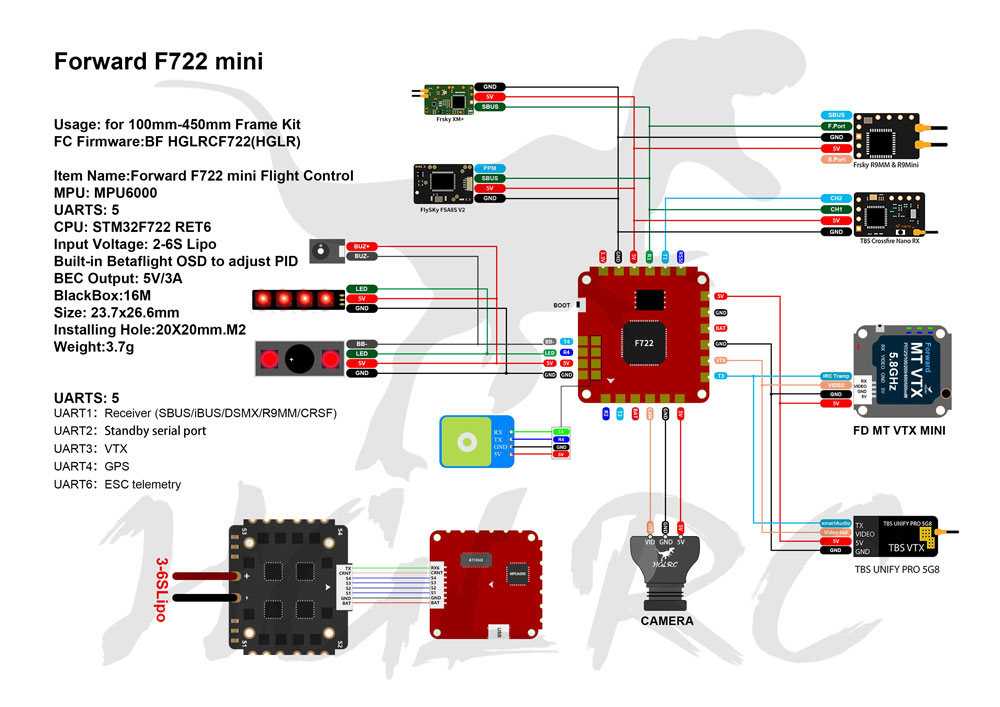

Diagram

Includes

• 1 x Forward F722 Mini Flight Controller
• 5 x M3 Shock absorption（red）
• 5 x M3 to M2 Stack Mount Adapter
• 1 x SH1.0 8PIN 60mm Cable
• 1 x DJI AIR UNIT PORT CABLE 90mm (with DJI Version)

Manual
