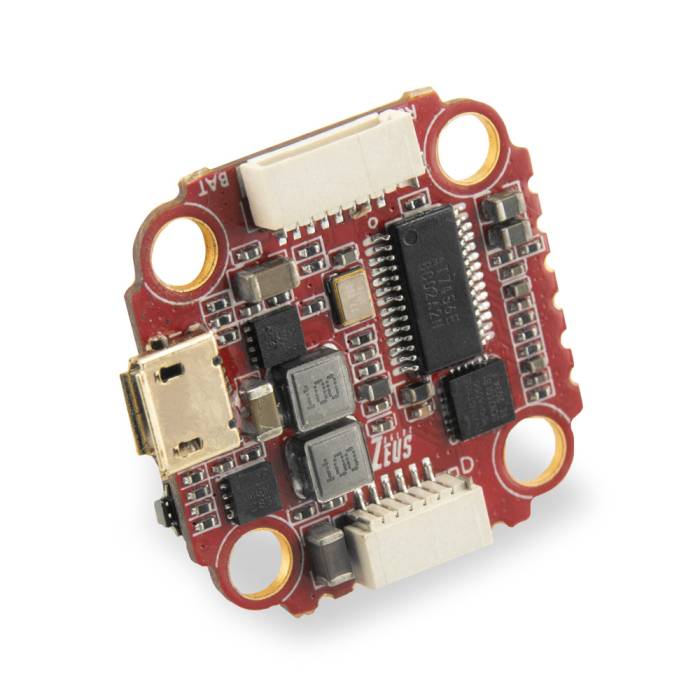

HGLRC DJI Zeus F722 Mini 3-6S F7 Flight Controller

The HGLRC DJI Zeus F722 Mini is a 20x20 flight controller that houses an BMI270 gyro and 3-6S direct LiPo support. Comes with an integrated barometer, 8M black box, and DJI connector.

VIDEO: HGLRC F722 Flight Controller - Setup & Review

Features

• Maximum BEC 9V/1A and BEC 5V/2A output
• Easy direct soldering for XM+, Nano receiver
• Integrated barometer and 8M black box
• Built-in Betaflight OSD to adjust PID
• DJI Plug-N-Play Ready
• Support I2C function
• Quickly connect DJI
• F722 Chip

" />

Specifications

• Item Name: Zeus DJI F722 Mini Flight Controller
• Usage: for 100mm-450mm Frame Kit
• FC Firmware: BF HGLRCF722(HGLR)
• Mounting Hole: 20X20mm - M3
• Support Compass: Support
• Support I2C function: Yes
• Barometer: BMP280(I2C)
• CPU: STM32F722 RET6
• Input Voltage: 3-6S Lipo
• Size: 28.2x28.1mm
• BEC Output: 9V/1A
• MPU: BMI270
• Voltage: 5V/2A
• Black Box: 8M
• Weight: 4.2g
• UARTS:5

Manual

• F722 ZEUS DJI MiniFlight controller
• Hex File for  iNAV 2.5.1
• Hex File for Emuflight
• Note: Or use target "HGLRCF722" on iNAV 2.5.2 and future versions.

Includes

• 1x HGLRC DJI Zeus F722 Mini 3-6S F7 Flight Controller
• 1x 90mm DJI AIR UNIT Port Cable
• 5x M3 Shock Absorber (Red)
• 1x 60mm SH1.0 8PIN Cable
