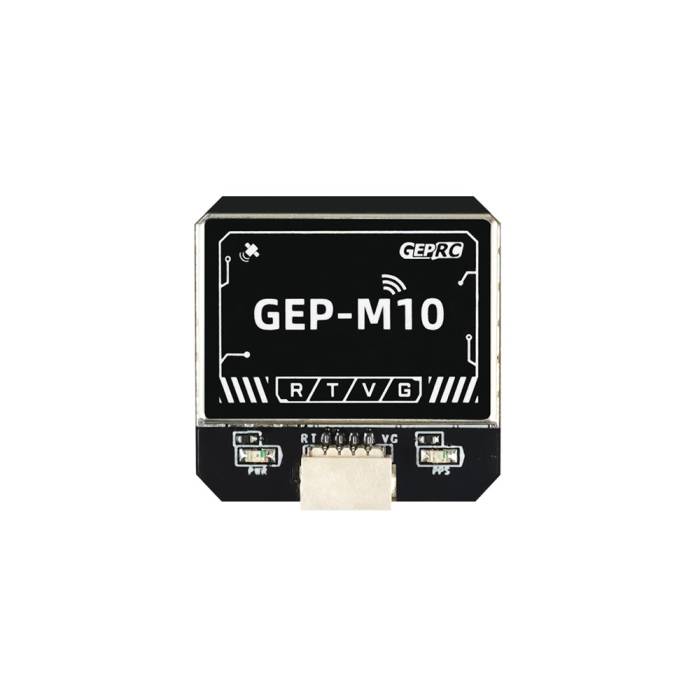

GEPRC M10 GPS Module
GEPRC M10 GPS Module
In Stock
About this product
The GEP-M10 GPS module offers a compact size, fast and stable positioning, and user-friendly operation. It uses the u-blox M10 chip to support GPS, BDS, Galileo, QZSS, and SBAS for joint positioning with up to 32 satellites. It also features a built-in Flash chip and farad capacitor for quick hot starts, a small ceramic antenna for excellent reception, and an integrated QMC5883L magnetometer for precise azimuth and altitude data, making it suitable for a wide range of FPV drones and model products.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
Features
- U-blox M10 series chip
- Fast positioning speed
- GPS+BDS+Galileo+QZSS+SBAS joint positioning
- Up to 32 satellites
- Stable connection quality
- Unique appearance design
- Small size and lightweight
- Built-in Flash chip and Farad capacitor
- Onboard indicator light, easy to use
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Model: GEP-M10
- GPS chip: u-blox M10
- Magnetometer: GEP-M10: No
- Barometer: GEP-M10: No
- Input voltage: 3.3V-5V
- Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
- Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
- Channel: 72ch
- Navigation satellites: Up to 32 pieces
- Output protocol: GEP-M10: UART(ublox)
- Baud rate: 115200bps
- Output Frequency: 10Hz
- Speed Accuracy: 0.05 m/s
- Horizontal positioning accuracy: 2D ACC1.5m(Weather)
- Timing accuracy: 30 ns
- Receiver sensitivity: Trace-162dBm, Capture-160dBm
- Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
- Maximum acceleration: 4G
- Size: GEP-M10: 22*22*8.2mm
- Weight: GEP-M10:7.8g
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x GEPRC M10 GPS Module
- 1x Instruction manual
- 1x Heat shrink tubing
- 1x GEPRC sticker
- 1x Terminal wire
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 20922 |
|---|---|
| UPC (GTIN) | 724376355846 |
| Manufacturer | GEPRC |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
