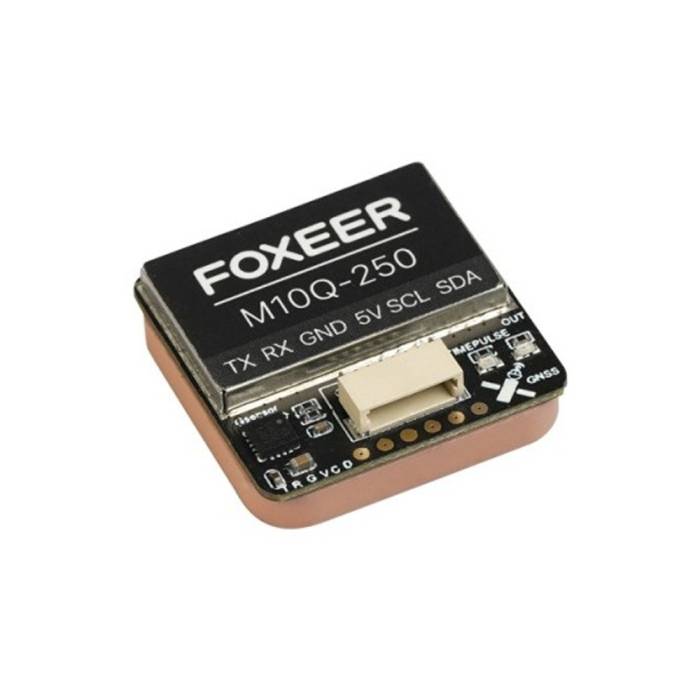

Foxeer M10Q-250 GPS w/ 5883 Compass
The Foxeer M10Q-250 GPS boasts a powerful 10th-generation chip and support for multiple satellite systems.

About this product

Enhance your drone's navigation with the Foxeer M10Q-250 GPS. This compact GPS receiver boasts a powerful 10th-generation chip and support for multiple satellite systems, ensuring precise and dependable positioning. Its lightweight design and broad operating temperature range make it an ideal choice for FPV enthusiasts.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

Features

  • Broad Operating Range
  • Compact Design
  • Multi-Frequency
  • High Sensitivity
  • 10th Gen Chip

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

  • Chip: M10 (10th Generation Chip)
  • Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO ESBAS L1, QZSS L1
  • Input Voltage: 5V
  • Antenna: Ceramic Antenna
  • Channel: 72
  • Battery: Built-in
  • Compass: QMC5883
  • Compass Orientation: Plug facing the direction of flight with the antenna up, BF: CW 90° Flip
  • Baud Rate: 115200bps
  • Protocol: Dual NMEA/UBLOX
  • Output Frequency: 1Hz-10Hz (10Hz default)
  • Speed Accuracy: 0.05m/s
  • Horizontal Positioning Accuracy: 2D ACC 1.5m (outdoor)
  • Receiver Sensitivity: Trace -166dBm; Capture -160dBm
  • Dynamic Characteristics: Height 50000m; Speed 500m/s; Acceleration 4G
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +105°C
  • Weight: 12g
  • Size: 25x25x8mm

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 1x Foxeer M10Q-250 GPS w/ 5883 Compass
