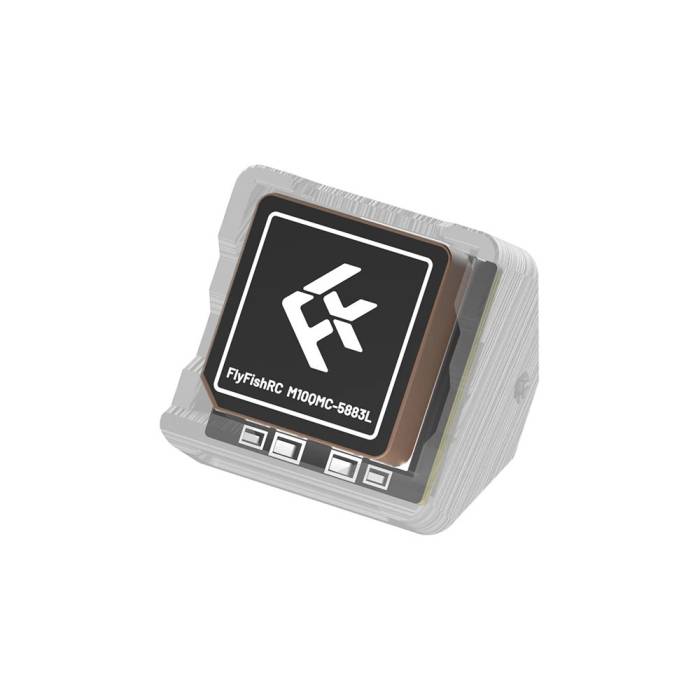

FlyFishRC M10QMC-5883L GPS & Compass Module

The FlyFishRC M10QMC-5883L GPS & Compass Module is a small size, fast positioning, easy-to-use GPS. It adopts 18*18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity. The built-in QMC5883L high-precision magnetometer provides precise azimuth pointing. Ideal for use with FPV drones, multi-rotors, fixed wing and other model products.

• 72 channel 10 Hz Refresh rate
• Built-in TCXO crystal and farad capacitor for faster hot start
• High sensitivity 18x18mm GPS patch antenna
• SH1.0-6Pin terminal design, no soldering required.
• QMC5883L Magnetometer chip, Precise pointing

• GPS module: FlyFishRC M10QMC-5883L GPS Module
• Frequencies: 72 channel
• Refresh Rate: 10 Hz
• Compass module: QMC5883L
• Baud Rate：4800bps-115200bps (Default - 9600bps)
• Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
• Accuracy:  Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
• Cold start: <24s
• Hot start: <2s
• Maximum height: 50000m
• Maximum speed: 500 m/s
• Speed accuracy: 0.05 m/s
• Maximum acceleration: ≦ 4G
• Input Voltage: 3.3V-5V，current 25mA
• Output Connector: SH1.0-6P
• Weight: 8.8g
• GPS pin definition: RX/TX UART
• Compass pin definition: SDA/SLA
• GPS patch antenna size: 18 x 18 mm
• Total dimensions：20 x 20 x 11 mm

• 1x FlyFishRC M10QMC-5883L GPS
• 1x Compass Module
• 1x SH1.0-6Pin Cable
• 1x SH1.0 Connector
• 1x GPS Manual
