The Matek GNSS M8Q-CAN, UAVCAN & MSP GPS features AP F303 CAN node, SAM-M8Q, QMC5881L, DPS310, I2C, Uart1 & Uart3 breakout. UAVCAN protocol & UART_MSP.

Specifications

• ArduPilot AP_Periph F303 CAN node
• GPS SAM-M8Q (GPS, GLONASS, Galileo)
• Magnetic Compass QMC5883L
• Barometer DPS310
• UART1, Firmware update
• UART2, onboard GPS
• UART3, MSP Protocol (To be supported)
• CAN, UAVCAN Protocol
• I2C, onboard QMC5883L & DPS310
• I2C JST-GH connector, external AirSpeed sensor
• CAN bootloader LED, Blue
• Fast blinking, No communication between CAN node and Flight Controllers
• Slow blinking, Communicating between CAN node and Flight Controllers
• GPS PPS LED, Green
• blinking(1Hz) when GPS has 3D fixed
• Boot button
• Input voltage range: 4~6V
• Power consumption: 100mA
• Operating Temperatures: -20~80 °C
• 29mm*29mm*9.7mm
• 11.3g

Tips

• u-blox M8Q series has no external flash memory
• Compass Alignment(Arrow forward and flat mounting): Ardupilot/Mission Planner: Rotation None
• Make sure to have compass/magnetometer 10cm away from power lines/ESC/motors/iron-based material
• The scratches on the ceramic antenna are the result of tuning the antenna by ublox.
• UART3 MSP Protocol is not implemented for now.

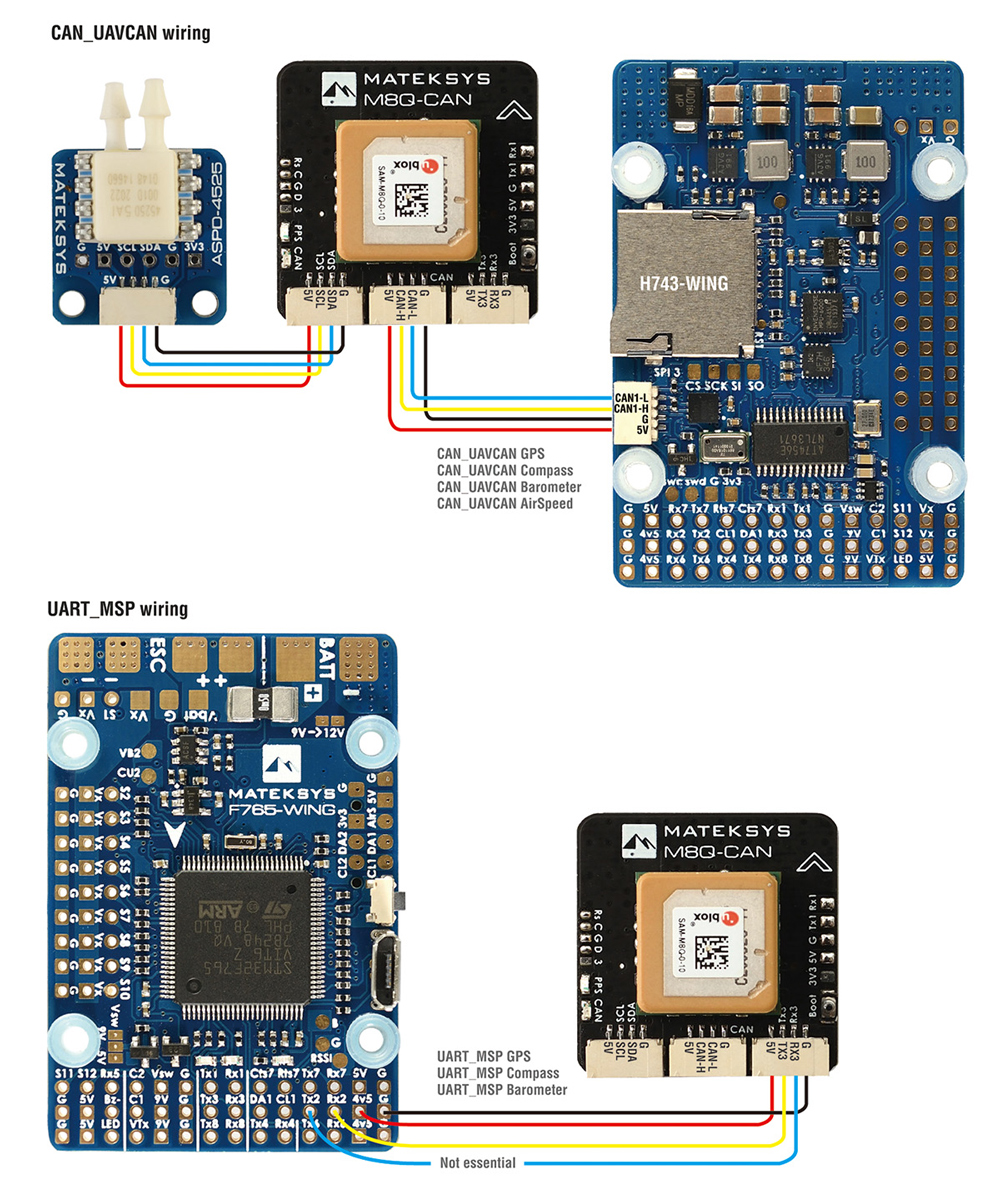

Diagram

Includes

• 1 x M8Q-CAN
• 2 x JST-GH-4P to JST-GH-4P 20cm silicon wire
