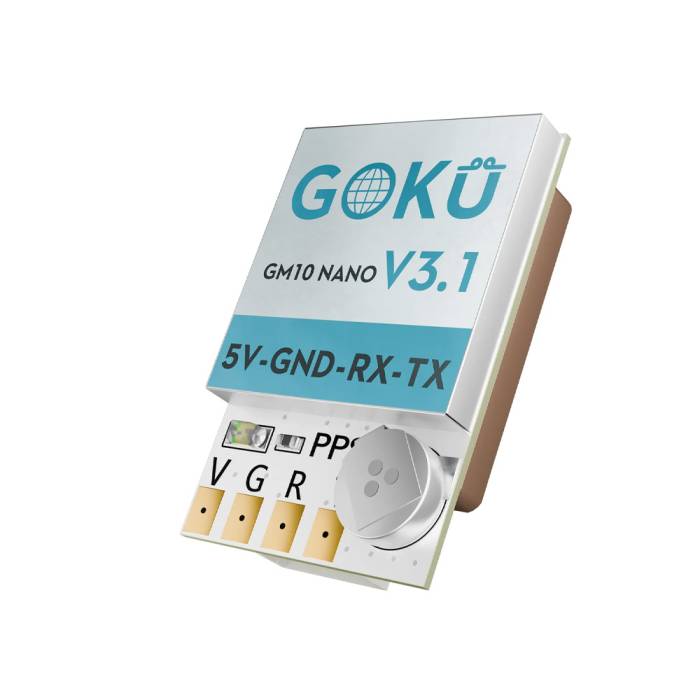

Flywoo GOKU GM10 Nano V3.1 GPS Module

The V3.1 version of the GOKU GM10 Nano GPS retains its extremely small size and adds a new plug. No soldering is required, making it plug-and-play for easy installation. It features the latest M10050 chip, supports multiple satellite systems, offers high sensitivity and a fast data update rate, and weighs only 2.5g.

Note: (Insert any product options here in black text with options in bold.)

Example: "Choose from two KV's: 1800KV (4S) or 2500KV (6S)."

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: DJI O3 Air Unit / FLYWOO GM10 V3 GPS Series test

• Ultra lightweight and small
• Three Module
• GPS Module
• 4-Pin Pad
• PPS LED

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

PRE-TUNED AND PRE-SETUP

This RTF is fully built and test-flown by build technicians at our Florida facility.

• Dimension: 12mm x 16mm x 4.5mm
• Model: GM10 NANO V3 GPS
• Connector: 4-pin Pad
• Brand: FLYWOO
• Weight: 2.5g

INDICATOR

• PPS LED: Yellow. The LED is not bright when the GPS is not fixed and flashes when the GPS is fixed.
• Module’s Pins: RX, TX, 3.3-5V, GND

ELECTRICAL CHARACTERISTICS

• Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS
• Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
• Chipset: M10050 (Tenth Generation Chip)
• Default Protocol: GPS, Galileo, BeiDou
• Channels: 72 Searching Channels

DATA AND UPDATE RATE

• Support Rate: 4800 bps to 921600 bps, Default 115200 bps
• Data Protocol: BF4.3.X (UBLOX) / BF4.2.X (NMEA)
• Output Frequency: 1 Hz to 10 Hz, Default 10 Hz
• Data Level: TTL or RS-232, Default TTL level

POWER CONSUMPTION

• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +105°C
• VCC: DC Voltage: 3.3-5V

OPERATIONAL LIMITS

• Acceleration: Less than 4g
• Altitude: Max 50,000 m
• Velocity: Max 500 m/s

SENSITIVITY

• Reacquisition: -160 dBm
• Tracking: -162 dBm

IMPORTANT NOTES

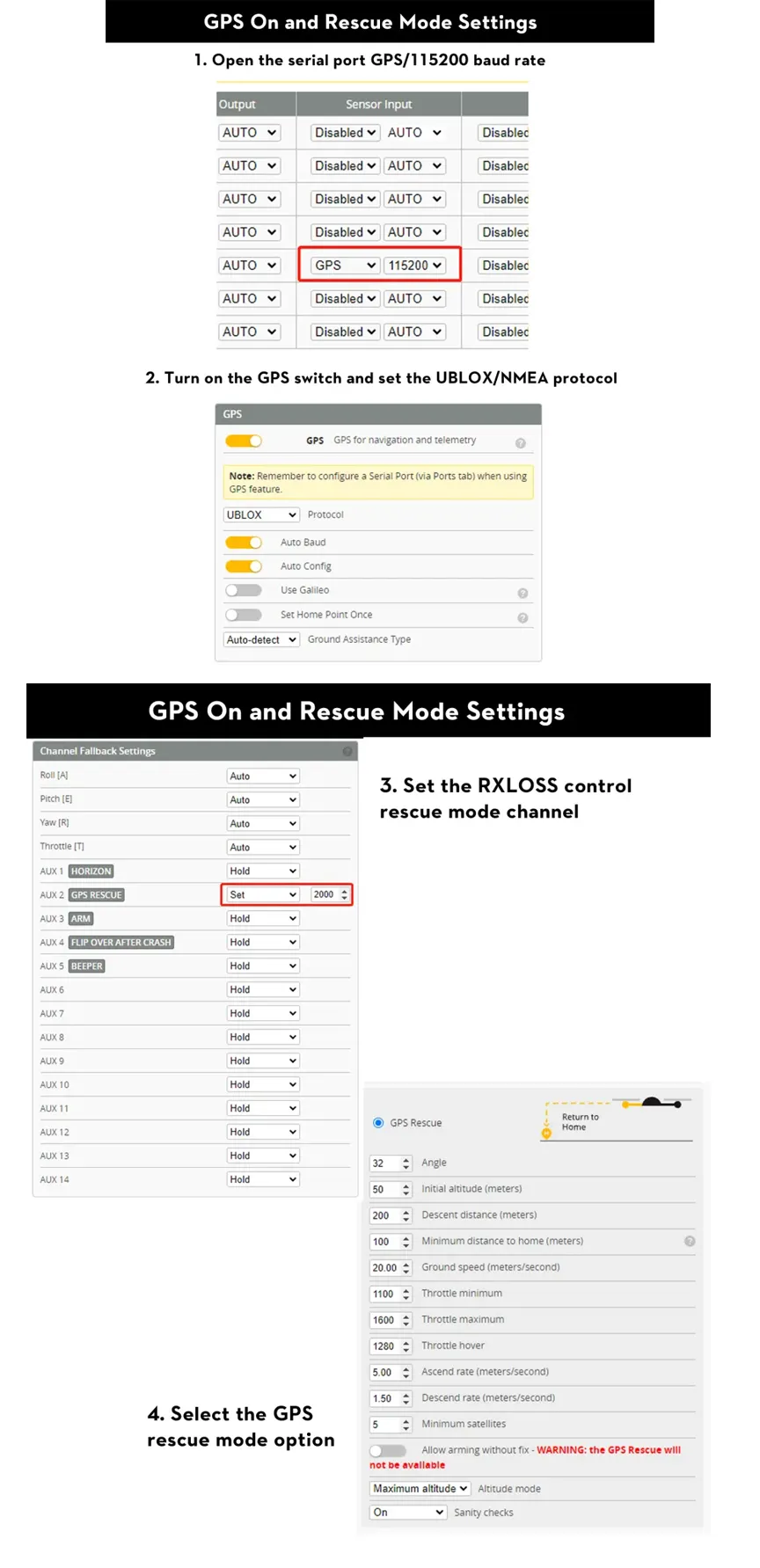

• BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols
• INAV - Use the latest 6.0.0 configurator, the latest firmware above 5.0.0
• Only BF4.3x version firmware can use the Ublox protocol.
• The chip of GOKU GM10 V3 GPS is M1005.
• BETAFLIGHT - Use firmware above 4.3.0

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Flywoo Goku GM10 NANO V3.1 GPS
• 1x 100mm Cable
• 1x Copper Foil
