CUAV X7+ Standard Autopilot Flight Controller - PX4/APM
CUAV X7+ Standard Autopilot Flight Controller - PX4/APM
In Stock
About this product
The X7+® Standard Autopilot Flight Controller is a high-performance autopilot. It is an ideal choice for industrial drones and large-scale heavy-duty drones. The X7+ features an H7 processor, an upgraded sensor with a redundancy design, a temperature compensation system, and a CORE separate design. The X7+ adopts a modular design and can be matched with different base plates. You can design a dedicated carrier board for your UAV to improve the integration of commercial systems, reduce wiring, improve system reliability, and enhance your UAV competitiveness (for example, by integrating airspeed sensors, telemetry, or even a companion computer, in the carrier board).
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: CUAV client X7 Flight Control Vertical Take-off and Landing Aircraft
Features
- Supports USB_HS, downloads logs faster (PX4 not yet supported)
- Supports IMU heating, making the sensor work better
- Modular design can be DIY carrier board
- Supports temperature compensation
- Dedicated uavcan battery port
- Supports more DSHOT output
- Car-grade RM3100 compass
- High-performance processor
- Internal shock absorption
- Internal shock absorption
- 3 sets of IMU sensors
- Three imus
OVER-CURRENT PROTECTION
The X7+ has over-current protection on the 5 Volt Peripheral and 5 Volt high power, which limits the current to 2.5A. The X7 has short circuit protection. Up to 2.5 A can be delivered to the connectors listed as pin 1 (although these are only rated at 1 A).
BUILDING FIRMWARE
The system's serial console and SWD interface operate on the DSU7 port. Simply connect the FTDI cable to the DSU7 connector (the product list contains the CUAV FTDI cable). CUAV provides a dedicated debugging cable, which can be connected to the DSU7 port. This splits out an FTDI cable for connecting the PX4 System Console to a computer USB port, and SWD pins used for SWD/JTAG debugging. The provided debug cable does not connect to the SWD port Vref pin (1).
TRIPLE REDUNDANT
The X7+ AutoPilot can be triple-redundant on the power supply if three power sources are supplied. The power rails are POWERA, POWERC, and USB. The output power rails PWM OUT (0V to 36V) do not power the flight controller board (and are not powered by it). You must supply power to one of POWERA, POWERC, or USB or the board will be unpowered.
DEBUG PORT

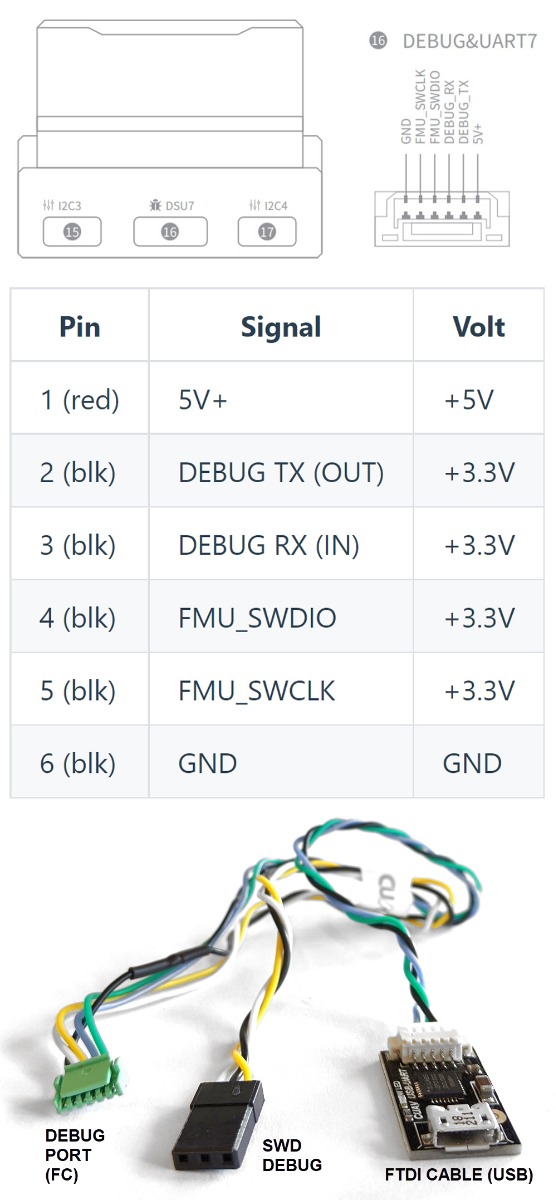

The system's serial console and SWD interface operate on the DSU7 port. Simply connect the FTDI cable to the DSU7 connector (the product list contains the CUAV FTDI cable). CUAV provides a dedicated debugging cable, which can be connected to the DSU7 port. This splits out an FTDI cable for connecting the PX4 System Console to a computer USB port, and SWD pins used for SWD/JTAG debugging. The provided debug cable does not connect to the SWD port Vref pin (1).
