BETAFPV Toothpick F722 AIO V1.1 - F722 FC + 35A BLHeli_S 2-6S ESC
BETAFPV Toothpick F722 AIO V1.1 - F722 FC + 35A BLHeli_S 2-6S ESC
Out of Stock
About this product

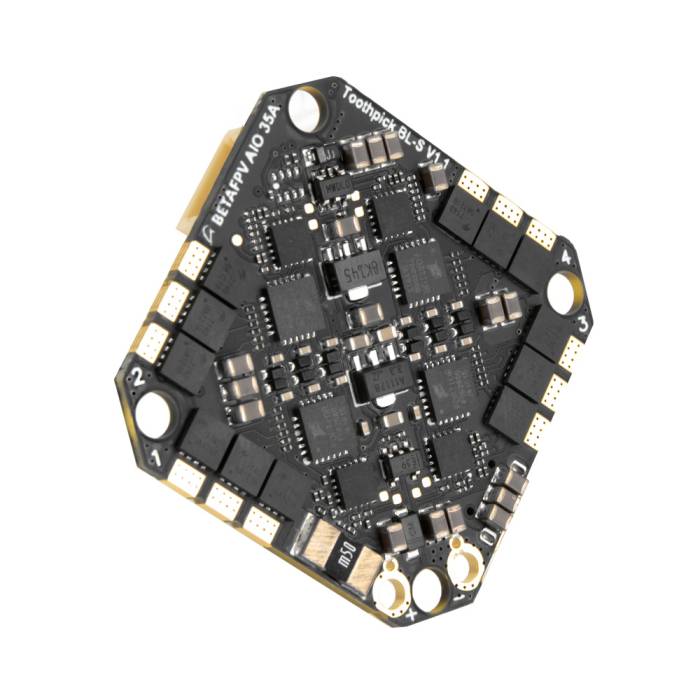

The BETAFPV F722 35A 2-6S AIO is a very reliable FC that is made to meet your advanced FPV needs. This AIO comes with an F722 chip and BLHeli_S ESC firmware. This board has a 6-pin connector for DJI Digital VTX for plug & play and can handle up to 6S of input voltage. This AIO is highly recommended for 4-5'' toothpick quads such as the X-Knight 5'' Toothpick Quadcopter.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: BetaFPV F722 Toothpick Whoop AIO FC
Features
- Better performance capability and higher calculation speed
- F722 FC's firmware upgraded from F411 to F722
- Supports programmable LED like WS2812 etc
- 35A continuous current (40A burst)
- 6-pin connector for DJI Digital VTX
- Supports a 2-6S lipo battery
- ICM42688 Gyro
- F4 AIO 35A FC
- 6 full UARTs
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
F722 TOOTHPICK FLIGHT CONTROLLER
- OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
- Firmware version: betaflight_4.3.0_STM32F7X2
- Mounting hole size: 26mm* 6mm
- Item: F722 35A AIO FC(BLHeli_S)
- Dimensions: 33x33mm
- Built-in current sensor
- CPU: STM32F722RET6
- Six-Axis: ICM42688
- Weight: 7.06g
35A 2-6S ESC
- Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)
- Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Indicators: 2 indicators: receiver indicator (green)/Flight control power indicator (red)
- Connector: 80mm 14AWG silicone cable with XT60
- Capacitance: CS|5*10*13mm|470μF|35V
- Input voltage: 2S-6S Lipo
- Continuous current: 35A
- ESC firmware: BLHeli_S
- Peak current: 40A
(INSERT VTX TITLE HERE IN BOLD CAPS)
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
Includes
- 1x BETAFPV Toothpick F722 AIO - F722 FC + 35A BLHeli_S 2-6S ESC
- 1x High-Frequency 470uf/35V Capacitor
- 1x Amass XT60 Connector
- 1x FC Connecting Wire
- 1x Hardware Kit
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 19767 |
|---|---|
| UPC (GTIN) | 724376346325 |
| Manufacturer | BETAFPV |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Item Returns | This item can be returned |
