Skystars Jupiter AIO - F4 FC + 45A 3-6S BLHeli_S ESC - 25x25
Out of Stock
About this product

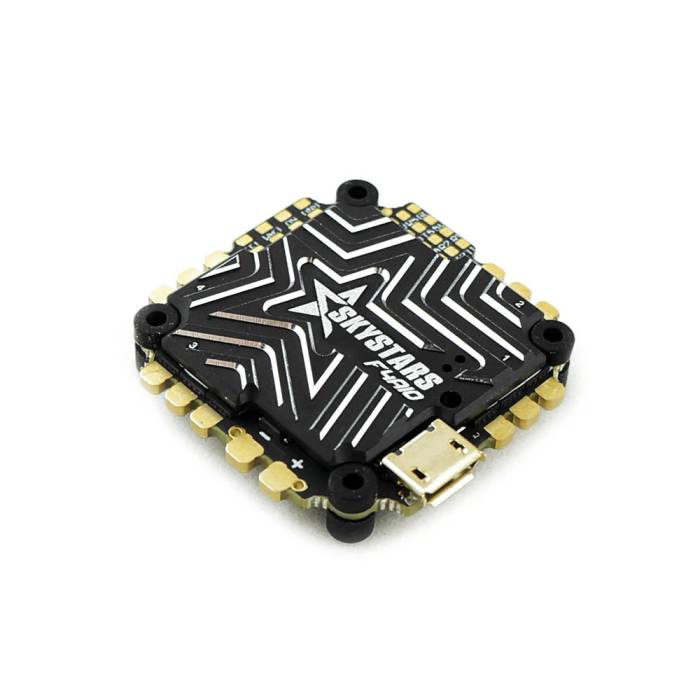

The Skystars Jupiter F405 45A AIO is a robust board that combines a flight controller and ESCs, with a 25.5 x 25.5mm mount, suitable for 3-4" and lightweight 5" drones. It features an F405 processor, MPU6000 gyro, barometer, 5V 3A BEC, 16MB blackbox memory, I2C pins, and connectors for digital video transmission and RC receivers. The board can handle up to 45A, is powered by 3-6S Lipo batteries, and includes an aluminum heat sink and external USB-C connector for easy access.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Combines flight controller and ESCs in a single board
- I2C pins for compass connection
- Supports 3-6S Lipo batteries
- Handles current up to 45A
- Uses BlHeli_S firmware
- Integrated barometer
- Heat Management
- Compatibility
- Connectivity
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
FLIGHT CONTROLLER
- Receiver: ELRS/CRSF/IBUS/TBS Crossfire Supported
- USB Connector: Micro USB and TYPE-C
- FC Firmware: SKYSTARSF405AIO
- LED Trip & Buzzer: Support
- CPU: STM32F405RGT6
- Barometer: BMP280
- BEC Output: 5V/3A
- Size: 35.5 x 36mm
- BlackBox: 16MB
- IMU: MPU6000
- Weight: 13.5g
- OSD: Support
- UART: 6ch
ESC
- Mounting Hole: 25.5 x 25.5mm, 3mm/M2
- DJI/Vista Connector: Support
- Default Protocol: Dshot300
- Continuous Current: 45A
- Current Sensor: Support
- ESC Firmware: BLHeli_S
- Power Supply: 3-6S
- Burst Current: 55A
- ESC Telemetry: No
- Current Scale: 400
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Skystars Jupiter AIO - F4 FC + 45A 3-6S BLHeli_S ESC - 25x25
- 4x M2 6.6 Anti-Vibration Grommets
- 1x 470uF 35V Ruby Capacitor
- 1x External USB-C Board
- 1x XT60 Cable
- 1x Cable Set
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 22168 |
|---|---|
| UPC (GTIN) | 724376364220 |
| Manufacturer | SkyStars |
| Country of Manufacture | United States |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 45 Amps |
| Flight Controller Processor | F4 |
| Voltage | 3-6S |
| ESC Firmware | BLHeli_S |
| Number of ESC's | 4 ESC's in 1 |
