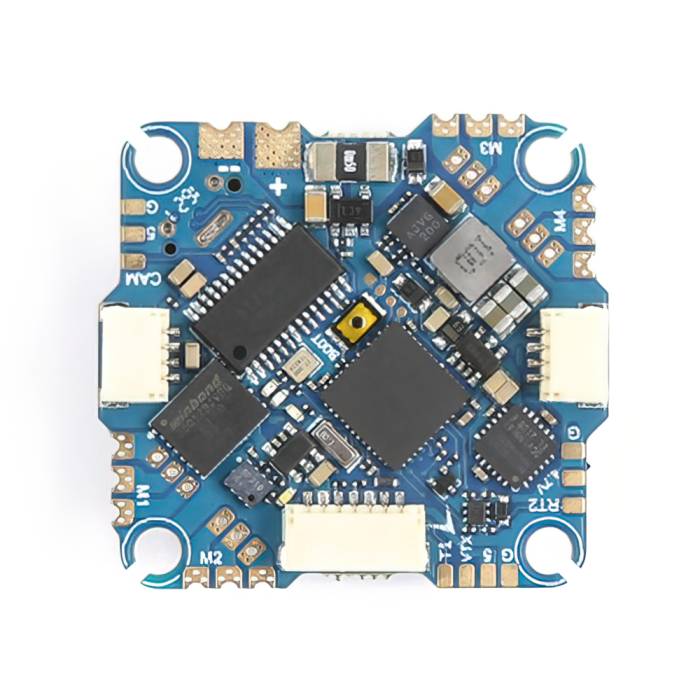

This iFlight SucceX-D V3.2 AIO Board has an F4 flight controller with a 20A BLHeli_S ESC. This whoop style board from iFlight is plug-n-play with the DJI Air Unit and Caddx Vista HD system. This all-in-one board is perfect for ultra-light and micro HD builds that use whoop-style 25.5x25.5mm mounting!

VIDEO: iFlight SucceX-A F4 AIO FC Review

Features

• DJI Plug-and-Play - No need to soldering required!
• Perfect for the iFlight Protek25 CineWhoop
• Updated V3.2 Version
• F7411 PRO FC
• 20A ESC

CHANGELOG

• V3 - V3.2: Due to some global supply issues, the Barometer and Flash components were updated as well as some circuit improvements implemented.
• 24th June 2021: Circuit design optimized, the exterior design changed.
• The barometer can only be used with Betaflight 4.3.0 and above!
• Before 8MB Flash changed to 16MB Flash
• Before BMP280 changed to DPS310

Specifications

• Firmware Target: IFLIGHT_F411_PRO
• Mounting pattern: 25.5*25.5mm/φ3mm
• Constant current: 20A，25A (Burst)
• ESC Firmware: G-H-30 BLS
• Connector: Micro-USB
• MCU：STM32F411
• Current sensor: yes
• ESC Telemetry: no
• BEC output: 5V 2A
• Blackbox：16MB
• BLHeli: BLHeli-S
• Gyro: MPU6000
• Size: 33*33mm
• INA pad：nR2
• Barometer: no
• Input: 2-4S

Includes

• 1x iFlight SucceX-D Whoop V3.2 AIO Board - F4 FC + 20A BLHeli_S ESC (MPU6000)
• 1x Wire harness for DJI Air Unit( plug-n-play)
• 1x Capacitor 470uF/16V
• 4x M2 silicon grommets
• 1x XT30 18awg cable
• 4x M2 damping balls
• 4x M2*8mm Screws
