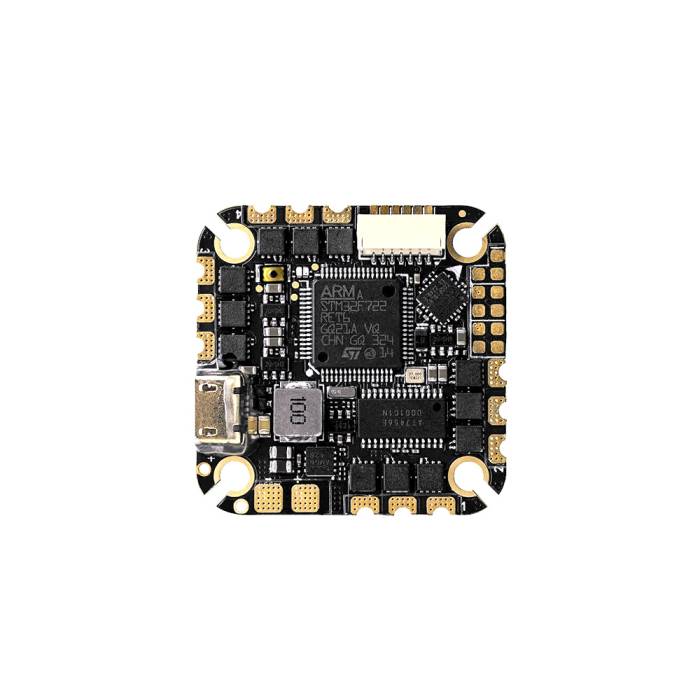

HGLRC Specter AIO - F722 FC + 40A 4-6S ESC - MPU6000

The HGLRC Specter 40A 4-6S AIO - MPU6000 is a high-performance all-in-one flight controller, integrating advanced control and gyroscopic features. It's designed for seamless operation with both HD and analog systems, making it a versatile choice for various drone builds.

• Employs STM32 F722 as the main controller and MPU6000 gyroscope, ensuring precise and stable flight control.
• Offers direct plug interfaces for cameras, receivers, and HD/analog systems, simplifying the setup process.
• Supports GPS integration for advanced navigation and tracking capabilities.
• Comes pre-flashed with Bl firmware, with the option to flash Bluejay firmware for enhanced flight efficiency.
• Compatible with mainstream 2-4 inch cinewhoop and toothpick frames, offering flexibility for different drone designs.
• Supports a wide input voltage range from 4-6S (14.8V-22.2V), catering to high-power applications.
• Provides a continuous current of 40A and a peak current of 50A for 10 seconds, suitable for demanding flight conditions.
• Supports various electrochemical protocols including DSHOT600, Oneshot, and Multishot.
• Features an integrated BEC of 5V2A, OSD, LED support, and Bee Narrator for comprehensive flight information and customization.
• Compact size of 34x34mm with installation holes of 25.5x25.5mm.M2, fitting snugly in various drone setups.
• Lightweight design, weighing only 9.8g, adding minimal weight to your build.

• Product name: SPECTER 40A 4-6S AIO
• MCU: STM32F722
• MPU: MPU6000
• BEC: 5V2A
• OSD: Support
• LED: Support
• Bee Narrator: Support
• Continuous current: 40A
• Peak current: 50A (10S)
• Electrochemical protocol: DSHOT600, Oneshot, Multishot
• Flying control firmware: HGLRCF722AIO
• Electrochemical firmware: BLS (brushing Bluejay 96K)
• Electric: 8 -bit electrical
• Input voltage: 4-6S 14.8V-22.2V (lipo)
• Size: 34x34mm
• Install holes: 25.5x25.5mm.m2
• Weight: 9.8g

• 1x Specter 40A 4-6S AIO
• 1x XT60 16AWG 100MM Gongtou Power Cable
• 1x 30AWG, line length 60mm, single head SH1.0-3P/single head SH1.25-3P camera head line
• 1x 30AWG, line length 70mm, double head SH1.0-4P receiving machine line
• 1x 30AWG line length 70mm, single head SH1.0-7P/single head SH1.0-6p HD map passing line
• 1x 30AWG line length 70mm, single head GH1.25-6P/single SH1.0-7P simulation map passing line
• 4x m2*6.6 shock reduction column
• 4x m2*12 black nickel screws
• 4x self -lock M2 nut
