Flywoo GOKU GN405S AIO - F405 BMI270 FC + 40A BLHeli_S ESC
Flywoo GOKU GN405S AIO - F405 BMI270 FC + 40A BLHeli_S ESC
About this product

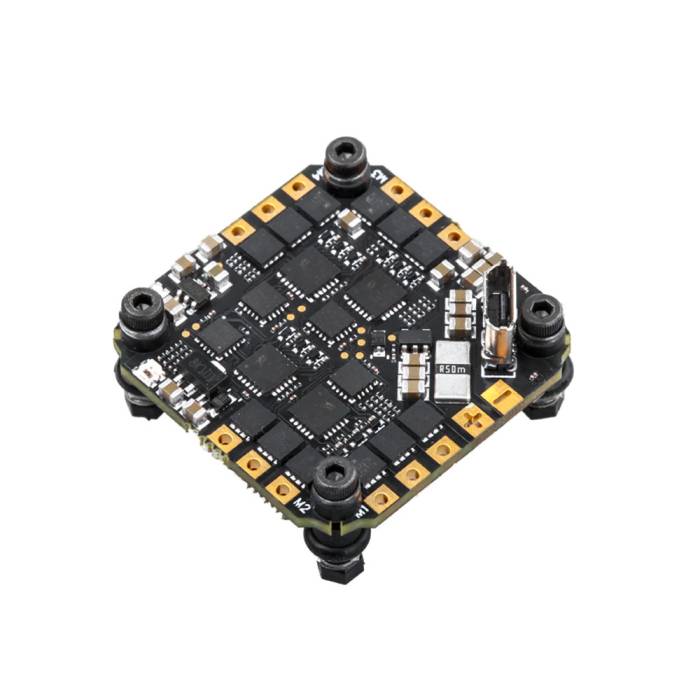

The Flywoo GOKU GN405S Flight Controller is an economical and durable AIO, which can meet most of your FPV needs. This AIO boasts a powerful F405 Flight Controller and 40A BLHeli_S Electronic Speed Controller.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- F405 BGA MCU
- Current Sensor
- 40A 8Bit ESC
- Barometer
- Black Box
- 6 UARTS
- 5V BEC
- LED
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Mounting Holes: Standard 25.5/26.5mm square to center of holes
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only
- PPM and PWM receivers are not supported
- Onboard 8Mbytes for Blackbox logging
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Dimensions: 33.5x33.5mm
- 3.3V Power Out: 0.5A max
- Onboard LED: WS2812*4
- Input Voltage: 2-6S Lipo
- Continuous Current: 40A
- 5V Power Out: 2.0A max
- MCU: STM32F405 BGA
- Firmware: BLHELI_S
- Barometer: BMP280
- IMU: BMI270 (SPI)
- Support BLHELI_S
- Weight: 8.5g
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- Â (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- Â (Insert links such as manuals, firmware, etc)
Includes
- 1x Flywoo GOKU GN405S AIO - F405 BMI270 FC + 40A BLHeli_S ESC
- 1x XT60H-M 14AWG Connecting Wire
- 1x UPL 470 25V Capacitor
- 4x Dampers
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 19152 |
---|---|
UPC (GTIN) | 764613349177 |
Manufacturer | Flywoo |
Mounting Pattern | 25.5x25.5mm (Whoop) |
Item Returns | This item can be returned |
