About this product

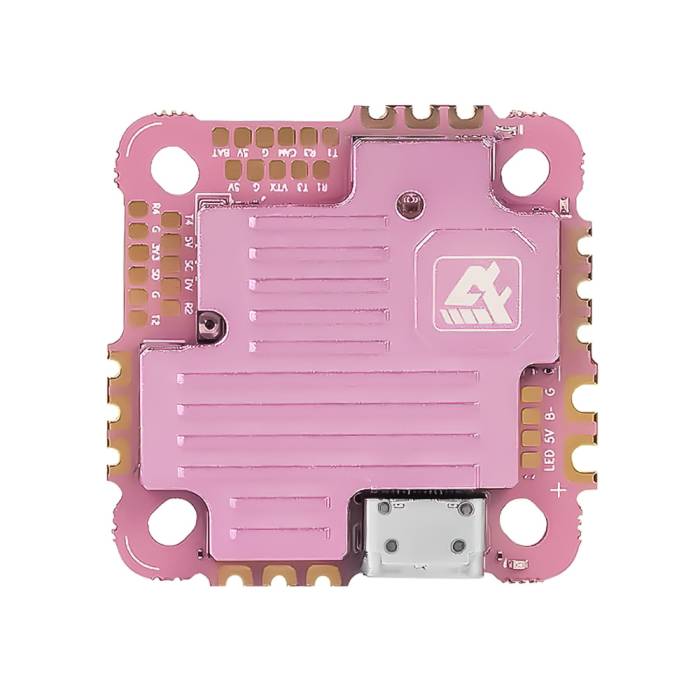

The Axisflying Argus F7 AIO is a top-tier flight control system encased in a durable aluminum shell, boasting high-quality circuit technology. With its innovative desyncs solution, this AIO ensures seamless performance, particularly when paired with 20/21 motors. Equipped with a CNC heat sink on both sides and undergoing rigorous testing, it guarantees optimal cooling and reliability, making it an ideal choice for discerning drone enthusiasts.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing
Features
- High-quality circuit technology and aluminum shell casing
- Desyncs solved by the Argus F7 AIO
- Works well with 20/21 motors
- CNC heat sink on both sides
- Every AIO thoroughly tested
- F722 Flight Controller
- 40A ESC
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Mounting Hole: 25.5*25.5mm /26.5*26.5 mm M3
- Amperage meter: 210 Scale
- Flight Controller: F722
- BlueJay: Pre-Flashed
- Size: 36*36*7.2mm
- Soldering Pad: 12C
- Buzzer: Supported
- Burst Current: 50A
- OSD: Supported
- BlackBox: 16MB
- GPS: Supported
- LED: Supported
- Barometer: Yes
- Gyro: BMI 270
- Weight: 14.7g
- Heatsink: Yes
- Voltage: 3-6S
- Current: 40A
- BEC: 5V/3A
- Color: Pink
- ESC: 40A
- UARTs: 5
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Axisflying Argus F7 AIO - F722 FC + 40A 3-6S BLHeli_S ESC - 25x25
- 1x High-Frequency 270uf/35V Capacitor
- 1x Amass XT60 Connector
- 2x 10AWG 100mm Wire
- 4x Rubber Grommets
- 2x 8-Pin SH1.0
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 20959 |
|---|---|
| UPC (GTIN) | 724376352265 |
| Manufacturer | Axisflying |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
