Zeez 55A 3030 V3 3S-6S BLHELI32 4-in-1 ESC
Zeez 55A 3030 V3 3S-6S BLHELI32 4-in-1 ESC
Back Ordered
About this product
The ZEEZ 55A 4-in-1 ESC is an improved version of last year’s 3030 ESC. Zeez took all the positive feedback from our users around the world along with the new advancements in technology and we truly raised the bar with this one.
The ZEEZ 55A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32, the STM32G0. It supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).
Zeez took advice from some of the newer pilots and has improved the solder pads by giving them more clearance, which makes soldering as easy as 1,2,3. Zeez also added additional copper around the pads for greater strength.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Comes with the fastest MCU available, which fully supports BLHELI32 and STM32G0.
- Supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600)
- Supports 96KHz PWM drive frequency to the MOSFET
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Â LiPo Power input: 3S-6S
- Continuous Current: 55Amps x 4
- Burst Current: 75Amps x 4
- Input wires: 12AWG-130mm* (Red/Black)
- Output Wire: solder pads and 8P connector
- Mounting holes: 30.5x30.5mm
- High-quality MOSFET with RDS(on) 0.75 mΩ 30V rated
- ESC Firmware: BLHeliSuite32
- Current Sensor Scale: 250
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- Â (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- Â (Insert links such as manuals, firmware, etc)
Includes

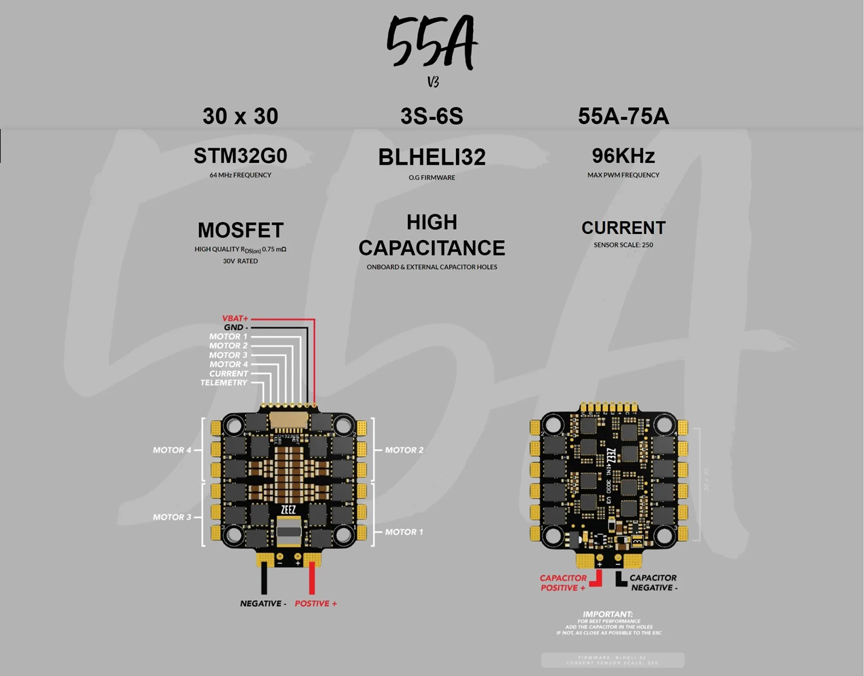

- 1x Zeez RC 55A BLHeli_32 3030 4-In-1 ESC V3
- 4x Aluminum Standoff
- 1x ESC to Flight Controller 8 Pin to Servo Connector JST SH 1mm Connector
- 2x 470uF 35V Low ESR Capacitor
- 1x XT60 with 12AWG Silicon Cable for Battery Connection
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 19382 |
---|---|
UPC (GTIN) | 764613348170 |
Manufacturer | Zeez Design |
NDAA Compliant | No |
Mounting Pattern | 30.5x30.5mm |
Item Returns | This item can be returned |
