The ZEEZ 45A 4-in-1 ESC is an improved version of last year’s 2020 ESC. Zeez took all the positive feedback from our users around the world along with the new advancements in technology and raised the bar with this one!

The ZEEZ 45A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32, the STM32G0. It supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).

Zeez took advice from some of the newer pilots and has improved the solder pads by giving them more clearance.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• Comes with the  fastest MCU available which is fully supported by BLHELI32, the STM32G0
• Supports 96KHz PWM drive frequency to the MOSFET
• Supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600)

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

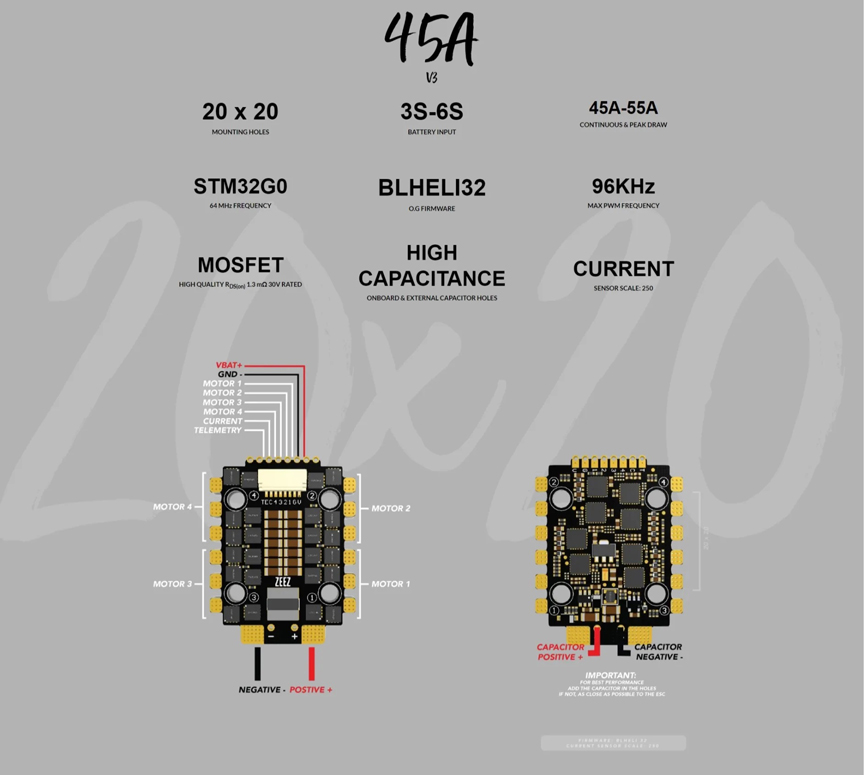

•  LiPo Power input: 3S-6S

• Continuous Current: 45Ax4

• Burst Current: 55Ax4

• Input wires: 14AWG-130mm* (Red/Black)

• Output Wire: solder pads and 8P connector

• High-Quality MOSFET 30V rated with RDS(on) 1.3 mΩ

• Mounting holes: 20x20mm

• ESC Firmware: BLHeliSuite32

• Firmware: BLHeli_32

• Current Sensor Scale:  250

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Zeez RC 45A BLHeli_32 2020 4-In-1 ESC V3
• 4x Aluminum Standoff
• 1x ESC to Flight Controller 8 Pin to Servo Connector JST SH 1mm Connector
• 2x 470uF 35V Low ESR Capacitor
• 1x XT60 with 12AWG Silicon Cable for Battery Connection
