Hobbywing XRotor Micro 45A 6S 4-in-1 ESC Dshot1200

More Views

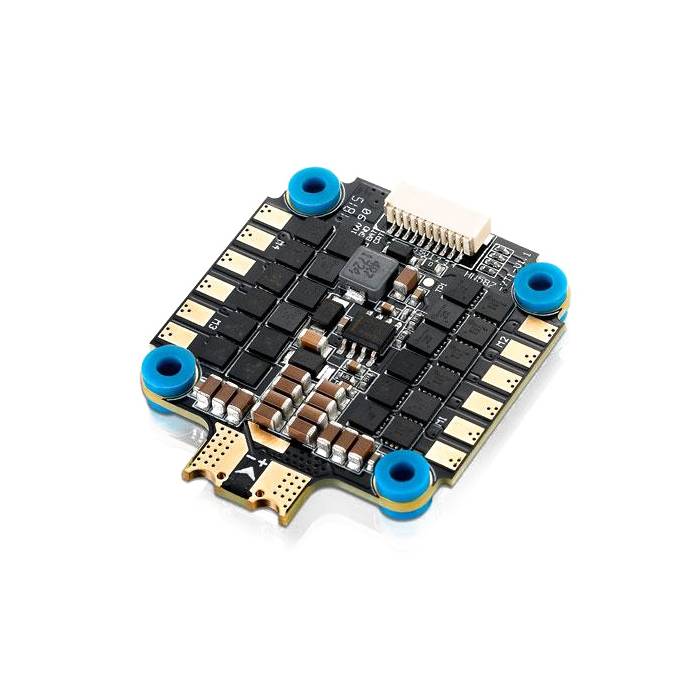

The Hobbywing Xrotor Micro 45A 6S 4 in 1 ESC Dshot1200

Out of Stock

$65.99

Description

The Hobbywing Xrotor Micro 45A 6S 4 in 1 ESC Dshot1200. A powerful ESC with 32bit BLHeli capabilities. Tons of power, with reliable performance.

High performance 32-bit microprocessor with the running frequency of up to 48MHz for excellent performance.
BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli-S.
All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.
The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.
On board 10V &5V BEC , powering different accessories such as FC , VTX ,Camera and LED lights and etc.

Model	XRotor Micro 45A 4in1 BLHeli32 6S
SKU	30902090
Application	FPVs with 130-280mm Diagonal Wheelbase
LiPo Power input	3S-6S
Cont.Current	45Ax4
Burst Current	60Ax4
BEC Output	5V@1.5A / 10V@1.5A
Input wires	12AWG-130mm* (Red/Black)
Output Wire	No wires but solder tabs
Connectors (In/Out)	XT60 (w/ Wires Soldered on) /no
Weight / Size	11.5g / 32.7x18.4x6.2mm
Mounting holes	30.5x30.5mm

Throttle Calibration	Supported
ESC Programming	BLHeliSuite32
DEO	Supported
OneShot Mode	Supported
Timing	Supported
Motor Rotation	Supported

* Note: All the wire length above is the original length, not the length you see from the outside.
