Tiger Motor Flame 80A HV V2 ESC

More Views

Tiger Motor Flame 80A HV V2 ESC
A professional level 80A 6-12s ESC by Tiger Motors.
In Stock
$119.99
OR
Description

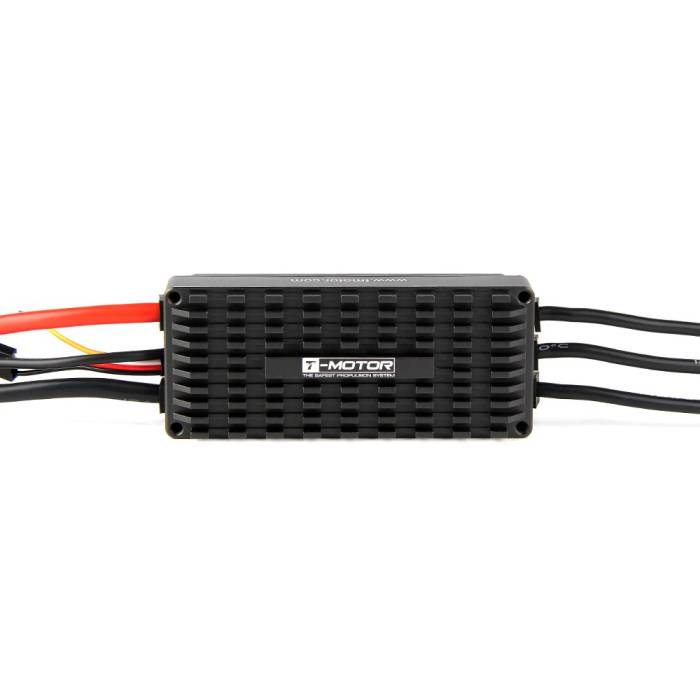

The Flame 80A HV V2 ESC by Tiger Motor provides professional-level power for large multi-rotor aircraft. The ESC is housed in a machined aluminum case providing both heat dissipation and protection.

Features

  • High-performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
  • Throttle range can be configured to be compatible with all transmitters currently available on market.
  • Smooth, linear, quick and precise throttle response.
  • CNC Aluminum alloy enclosure, IP55 PCB with nanotechnology, widely used in UAV agriculture, search and rescue, etc.
  • Separate voltage regulator IC for microprocessor to get a better anti-jamming capability.
  • Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
  • USB supported. The firmware of the ESC can be updated by the USB adapter.
  • Several kinds of Program Cards are supported. Very easy to program the ESC at home or at the field.

Specs

  • Output: Continuous 80A, Burst 105A up to 10 Secs.
  • Input Voltage: 6-12 cells lithium battery.
  • BEC: None
  • Signal Frequency: Up to 621Hz
  • Size: 77mm (L) * 35mm (W) * 18mm (H).
  • Weight: 94g.

Additional Information
SKU 1628
Manufacturer Tiger Motors
UPC (GTIN) 704817764895
