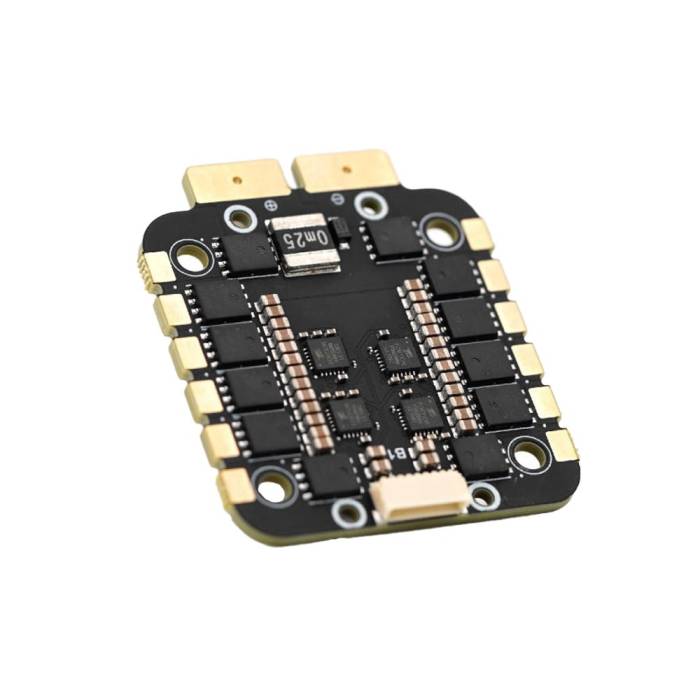

TBS Lucid 60A 8S AM32 4-in-1 ESC

The TBS Lucid 60A 8S AM32 4-in-1 ESC is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

Featuring an 8-layer high-current density board with twice the market average on-board capacitance, the ESC is built to withstand the harshest punishment of everyday FPV flying while delivering buttery-smooth flight characteristics paired with face-melting acceleration. By focusing on thermal dissipation from the ground up, the flight stack achieves excellent power-to-weight density without the need of heavy heat sinks.

• 8-Layer High Current Density Board
• Enhanced On-Board Capacitance
• Optimized for Racing & Freestyle
• Exceptional Thermal Dissipation
• Robust & Reliable ESC
• Powerful Acceleration
• AM32 Collaboration

• Mounting: Gorilla-mount (39.5mm x 16.0mm) & 30.5mm x 30.5mm, or Brackets for 20mm x 20mm
• Protocol: Bi-directional Dshot (300/600), KISS ESC Telemetry
• Propellers: Up to 11"; over 7" requires good airflow
• ESC Software: AlkaMotors32 (AM32)
• Rated Current: 60A x 4 (60 seconds)
• Peak Current: 85A x 4 (10 seconds)
• Weight: 17.58g (22g with brackets)
• Brackets for 20mm x 20mm
• ESC Target: tbslu8s4in1
• ESC Current Port: Yes
• Size: 50mm x 42mm
• Input: 3-8S LiPo
• BEC: No

• Frame developer pack for Gorilla mounting pattern
• AM32 Online Configurator
• Gorilla mounting pattern
• TBS Lucid Manual
• AM32 Firmware

• 1x TBS Lucid 60A 8S AM-32 4-in-1 ESC
• 4x 2.2x4mm standoffs
• 1x Aluminum top bracket for 20x20 FCs
• 1x XT60 power connector
• 1x 560uF 8S Capacitor
• 4x M2x12 screws
• 4x M2x14 screws (for 30x30 mount)
