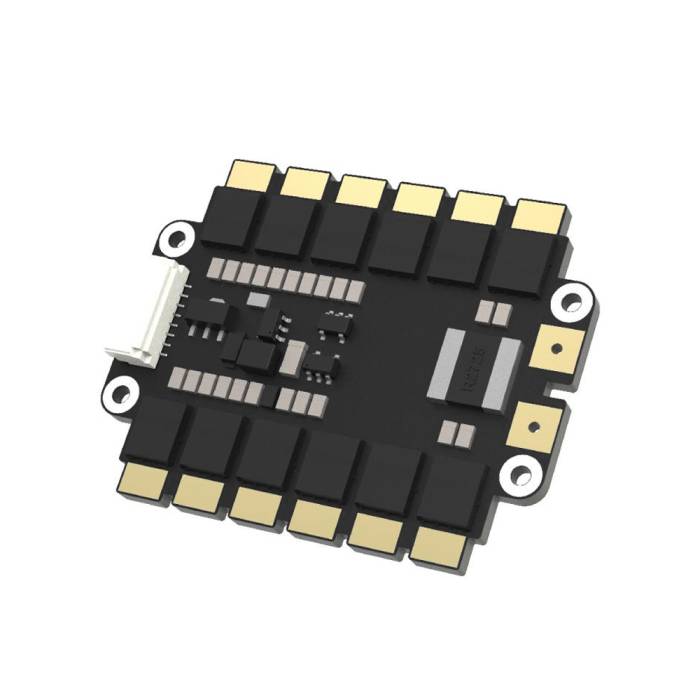

TBS Lucid 60A 3-6S AM32 4-in-1 ESC - Gorilla 39x16
In Stock
About this product
The TBS Lucid ESC is TBS's latest engineering feat, designed for racing and freestyle. It features an 8-layer high-current-density board with double the market average capacitance, ensuring durability in intense FPV flying. With optimized thermal dissipation, it achieves an impressive power-to-weight ratio without bulky heat sinks, thanks to collaboration with AM32 for optimal performance without high costs.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Innovative Mounting Solution
- Advanced Technology
- Professional Options
- Versatile Design
- Compatibility
GORILLA MOUNT
Superior power delivery is additionally achieved by the innovative mounting brackets, which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the "Gorilla" mount. Frame developers are encouraged to integrate the Gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Mounting: Gorilla-mount 39.5 x 16.0mm (Brackets for 20x20 mm, 30.5x30.5 mm are sold separately)
- Protocol: Bi-directional Dshot 300/600, KISS ESC Telemetry
- Propellers: Up to 9"; over 7" requires good airflow
- ESC software: AlkaMotors32 (AM32)
- Rated current: 60A x 4, 300 seconds
- Peak current: 70A x 4, 60 seconds
- Weight: 13.81g; 19g incl. brackets
- ESC target: tbslu6s4in1
- ESC current port: Yes
- Size: 34mm x 44mm
- Input: 3-6S Lipo
- BEC: No
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Includes
- 1x TBS Lucid 60A 3-6S AM_32 4-in-1 ESC - Gorilla 39x16
- 1x TBS Gorilla Adapter Plate
- 1x XT60 Power Connector
- 1x 470uF 6S Capacitor
- 1x Hardware Set
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 22303 |
|---|---|
| UPC (GTIN) | 703674150797 |
| Manufacturer | Team BlackSheep |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | Gorilla 39x16 |
| ESC Firmware | AM32 |
| Amps | 60 Amps |
| Voltage | 3-6 Cell (12.6-25.2V) |
| Number of ESC's | 4 ESC's in 1 |
