T-Motor Mini F45A 3-6S 32-Bit 20x20 4-in-1 ESC

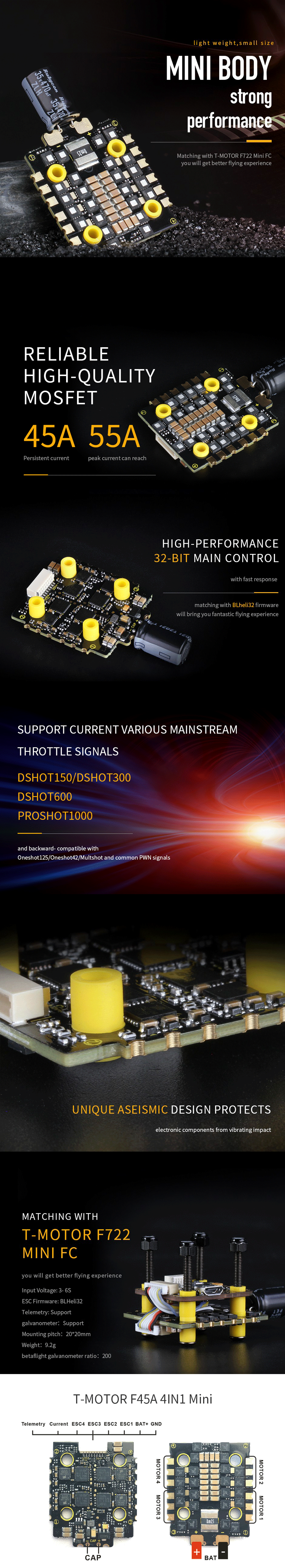

The T-Motor Mini F45A 6S is a 4-in-1 ESC that comes with a 20x20 mounting pattern and 32-BIT for high performance and fast response!
Share

About this product

The T-Motor Mini F45A 6S is a 4-in-1 ESC that comes with a 20x20 mounting pattern and 32-BIT for high performance and fast response! Supports DSHOT150/DSHOT300, DSHOT600, PROSHOT1000, Oneshot125, Oneshot42, Multishot, and common PWN signals. Matching with the T-Motor F722 Mini FC and BLheli32 firmware for a better flying experience!

Specifications

  • Input Voltage: 3~6S
  • ESC Firmware: BLHeli32
  • Continuous Current: 45A
  • Telemetry: Support
  • Galvanometer: Support
  • Betaflight galvanometer ratio: 200
  • Mounting pitch: 20*20mm
  • Weight: 9.2g

Package Includes

  • 1 x T-Motor Mini F45A 2-6S BLHeli_32 20x20 4-in-1 ESC
  • 2 x Capacitor
  • 4 x Rubber Grommets

More Information

SKU 13163
UPC (GTIN) 789862852988
Manufacturer Tiger Motors
NDAA Compliant No
Mounting Pattern 20x20mm
