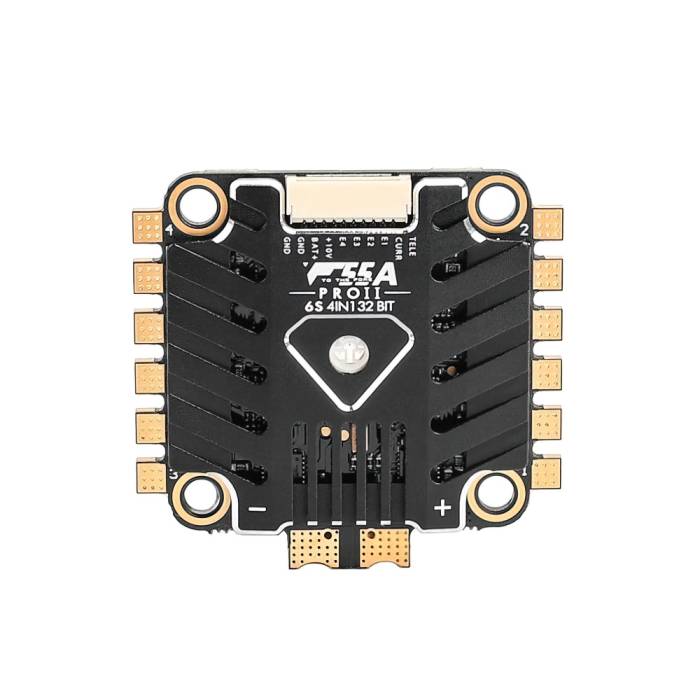

T-Motor F55A Pro II 55A 3-6S AM32 4-in-1 ESC w/ BEC - 30x30
$117.99
Out of Stock
Only left for same day shipping. Order now!
T-Motor F55A Pro II 55A 3-6S AM32 4-in-1 ESC w/ BEC - 30x30

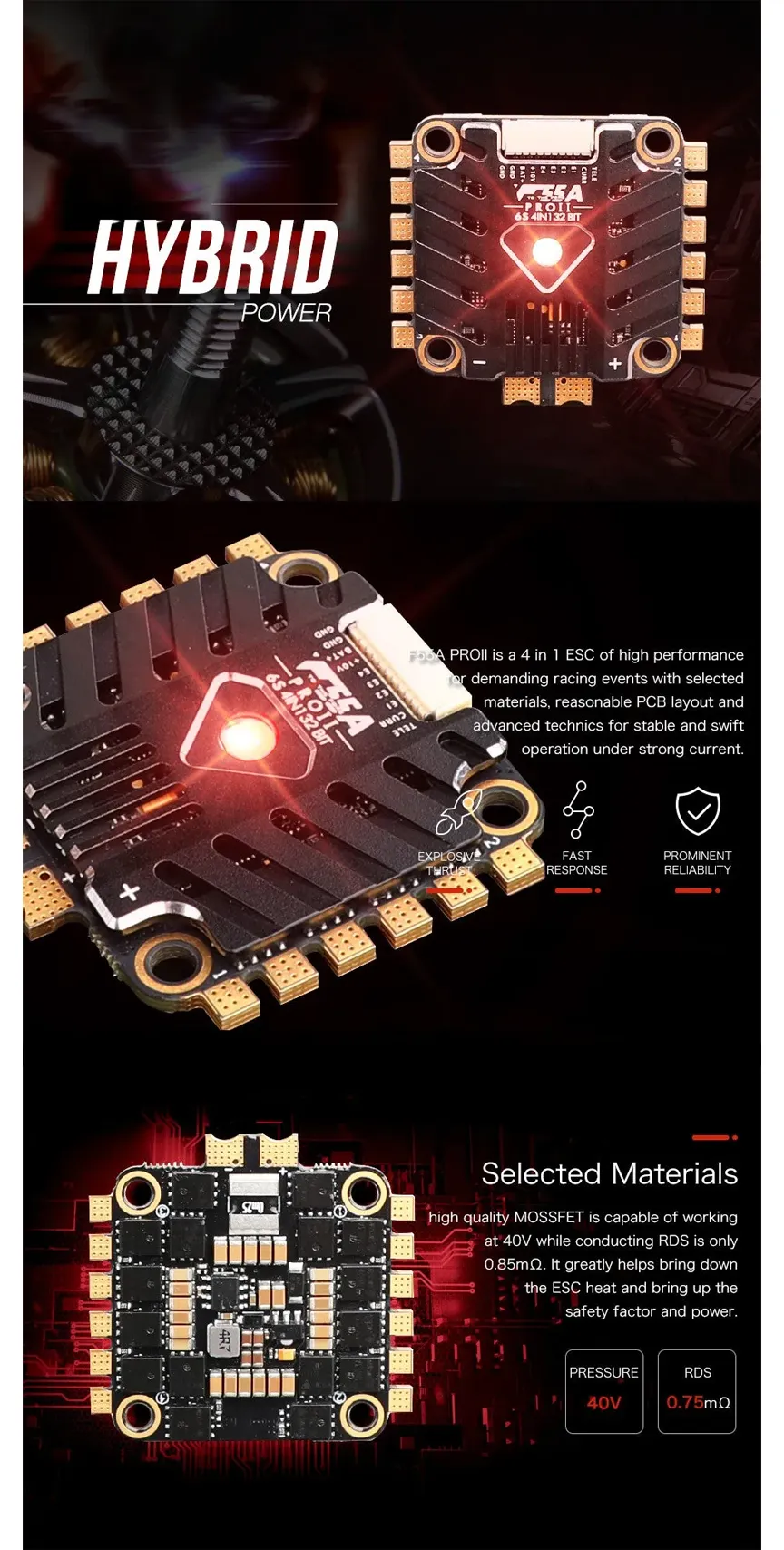

The T-Motor F55A Pro II upgrades the original with a redesigned heatsink, LED, and improved 10V@2A BEC.
About this product
The T-Motor F55A Pro II upgrades the original with a redesigned heatsink, LED, and improved 10V@2A BEC. Built for high-demand setups, it handles 6S power with 75A bursts and 55A sustained. Featuring 32-bit architecture and AM32 firmware, it delivers precise throttle response in a compact 30x30mm design—perfect for performance-driven pilots. Elevate your FPV builds with the F55A Pro II!
Features
- 30x30mm Mounting Pattern
- Upgraded Heatsink Design
- High Power Handling
- 32-Bit Architecture
- AM32 Firmware
- Durable Design
- 10V@2A BEC
- Built-in LED
Specifications
- Support: DSHOT150/300/600/1200
- Weight: 17.5g (Including Heatsink)
- Continuous current: 4*55A
- Firmware: BLHeli_32 32bit
- Burst current: 4*75A
- BEC Output: 10V @2.0A
- Size: 45x41x7.3mm
Includes
- 1x T-Motor F55A Pro II 55A 3-6S AM32 4-in-1 ESC w/ BEC - 30x30
- 1x 12AWG-130MM with XT60 Soldered input wires
- 3x SH0.1mm Plugs(6/8/10)
- 5x Damping Rubbers
- 2x 61mm Signal wire
- 5x Cable Protectors
- 1x Capacitor
More Information
| SKU | 22675 |
|---|---|
| UPC (GTIN) | 6977814600792 |
| Manufacturer | Tiger Motors |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30x30mm |
| ESC Firmware | AM32 |
| Amps | 55 Amps |
| Voltage | 3-6 Cell (12.6-25.2V) |
| Number of ESC's | 4 ESC's in 1 |
