T-Motor Cine 55A BLHeli_32 3-8S 8-In-1 ESC - 30X30
T-Motor Cine 55A BLHeli_32 3-8S 8-In-1 ESC - 30X30
In Stock
About this product
Introducing T-Motor Cine 55A BLHeli_32 8-In-1 3-8S ESC (30X30). This ESC is perfect for large Cinelifters running 8 motors and up to 8S voltage! This ESC makes building a breeze as you no longer need to wire up two 4-in-1 ESCs. Combine this ESC with the T-Motor F7 Pro Flight Controller and make wiring even easier as the ESC and FC can connect with just one wire harness!
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)

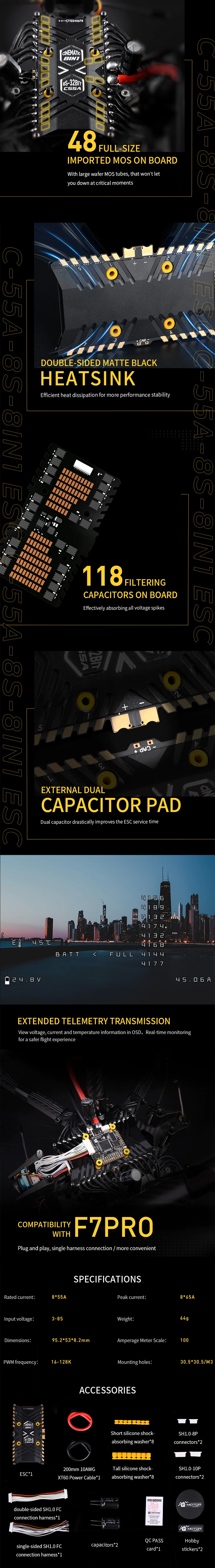

Features
- Perfect for large Cinelifters running 8 motors and up to 8S voltage
- Combine this ESC with the T-Motor F7 Pro Flight Controller and make wiring even easier as the ESC and FC can connect with just one wire harness
- 48 full-size imported MOs on board
- Doubled-sized matte black heatsink
- 118 filtering capacitors on board
- External dual capacitor pad
- Extended telemetry transmission
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Input Voltage: 3-8S
- Current: 8x55A
- Burst Current: 8x65A
- Amp Meter Scale: 100
- ESC Software: BLHeli_32
- PWM Frequency: 16-128KHz
- Weight: 64g
- Mounting Pattern: 30.5x30.5mm
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x T-Motor Cine 55A BLHeli_32 3-8S 8-In-1 ESC - 30X30
- 1x 200mm 10AWG XT60 Power Cable
- 8x Short silicone shock-absorbing washer
- 8x Long silicone shock-absorbing washer
- 2x SH1.0-8P connectors
- 2x SH1.0-10P connectors
- 1x Double-sided SH1.0 FC connector hardness
- 1x Single-sided SH1.0 FC connector hardness
- 2x Capacitor
- 1x QC PASS Card
- 2x Stickers
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 19517 |
|---|---|
| UPC (GTIN) | 6971360357902 |
| Manufacturer | Tiger Motors |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Item Returns | This item can be returned |
