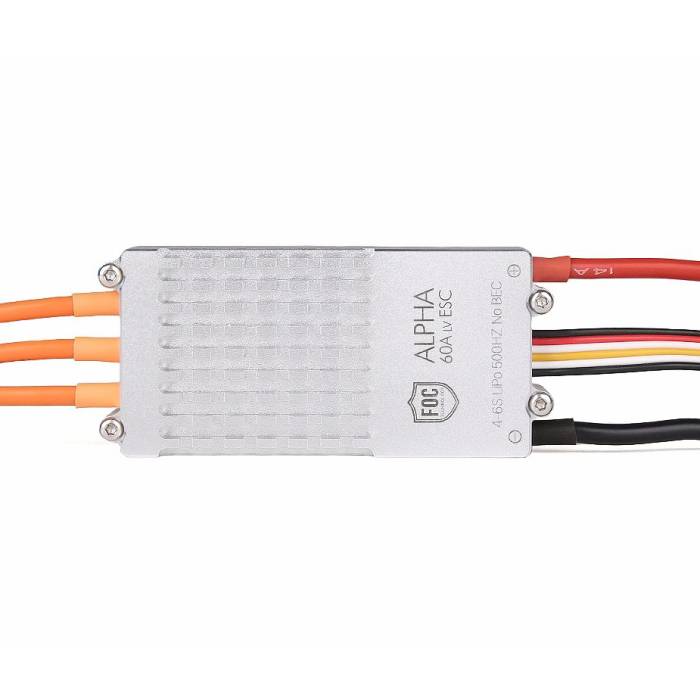

T-Motor ALPHA 60A LV ESC
With fast response and high efficiency complimented by low noise and interference, the T-Motor Alpha 60A LV is the ultimate ESC for complete control over your quadcopter.
Share

About this product

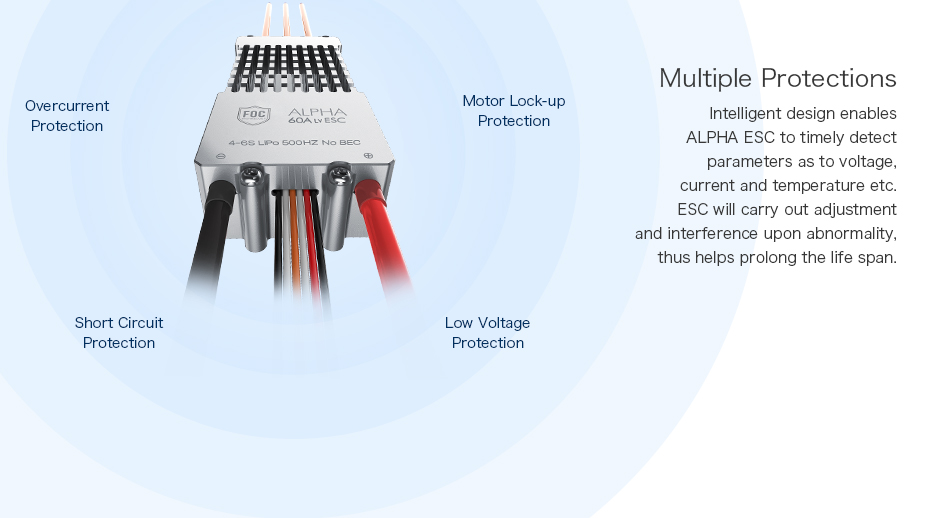

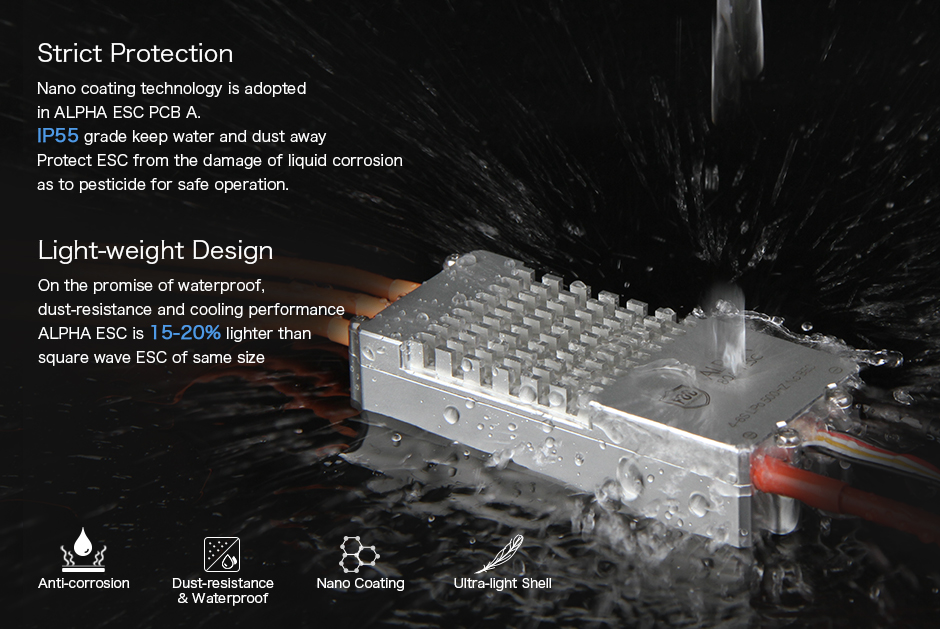

T-Motor's Alpha 60A ESC is perfect for professional applications. Large UAVs demand reliable components and the Alpha has numerous levels of protection to keep your gear safe.

Note: ALPHA 60A LV Match MN505S 320KV, MN505S 380KV, MN601S 320KV, MN605S 320KV, U8II/Lite 150KV, U8II/Lite 190KV Only

Specifications

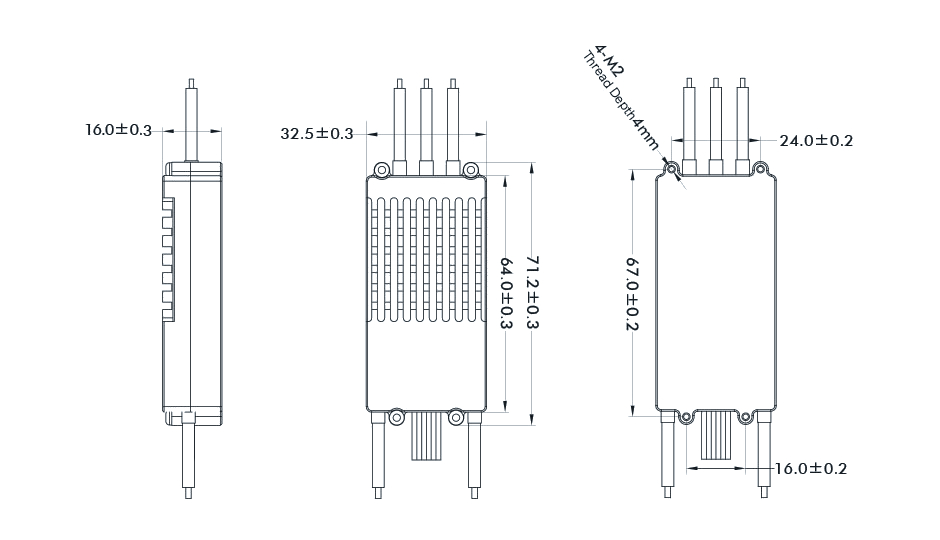

  • Size: 71.3x32.5x15.9mm
  • Weight (Incl. Cable): 62.8g
  • Motor Cable: Silicone wire-deep orange- 16AWG-70MMx3Pcs
  • Power Cable: Silicone wire-red/black-14AWG-175MM
  • Signal Cable: PVC flat cable- 30 core wires-- 2-355MM (white, blank, black/JP 3P male connector)
  • Upgrade Cable: PVC flat cable-30 core wires--3-50MM (black, red, white/JP 3P male connector)
  • Support Voltage: 6S/18-25.2V
  • Cont. Current: 40A
  • Peak Current (10s): 60A
  • Standby Consumption: <= 50mA
  • BEC: No
  • Throttle Pos. Range: 110-1900μs
  • Throttle Refresh Frequency: 500Hz
  • Throttle Response Speed: 50ms

How to program ALPHA ESCs with DATA LINK?

Includes

  • 1x Alpha 60A LV ESC
  • 1x Manual


More Information

SKU 8542
UPC (GTIN) 6971360350583
Manufacturer Tiger Motors
Country of Manufacture China
NDAA Compliant No
Mounting Pattern N/A
Amps 60 Amps
Number of ESC's Single ESC
