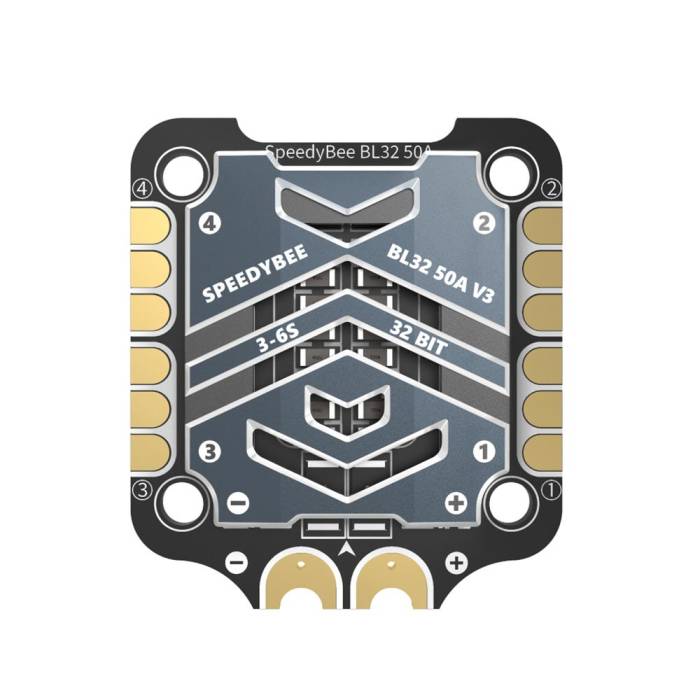

SpeedyBee 50A V3 3-6S BLHeli_32 128K ESC - 30x30

The SpeedyBee 50A V3 128K ESC features 50A output for real performance with your toughest 6S motors and is equipped with a protective CNC heat sink for overheat protection. The ESC is built with TVS protective diode to absorb the voltage spike when you plug in the battery, or during crashes that block your props. Supports up to 128KHz PWM frequency, and solder-free connectivity.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: SpeedyBee F7 V3 Flight Stack - Everything But The Kitchen Sink

• 1500uF Low ESR Capacitor with TVS Protective Diode
• 30.5 x 30.5mm Mounting Pattern
• CNC Heatsink Shield
• 128KHz PWM
• 50 Amperage

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Current Sensor: Supported (Scale=490 Offset=0)
• Mounting: 30.5x0.5mm, 4mm hole size
• Dimension: 45.6(L)x40(W)x8.8mm(H)
• Firmware: SpeedyBee BL32 50A
• Protocol: DSHOT300/600
• Weight: 19.2g with heat sink
• Continuous Current: 50Ax4
• Power input: 3S - 6S LiPo
• Burst Current: 55A(5S)
• Power output: VBAT

(INSERT VTX TITLE HERE IN BOLD CAPS)

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

• SpeedyBee F7 V3 Stack Manual
• GitHub Configurator Download

• 1x SpeedyBee 50A V3 BLHeli_32 128K ESC
• 1x 35V 1500uF Low ESR Capacitor
• 5x M3 8.1mm Silicone Grommets
• 1x SH 1.0mm 8-Pin Cable -30mm
• 5x M3 Silicone O-Ring
• 1x XT60 Power Cable
