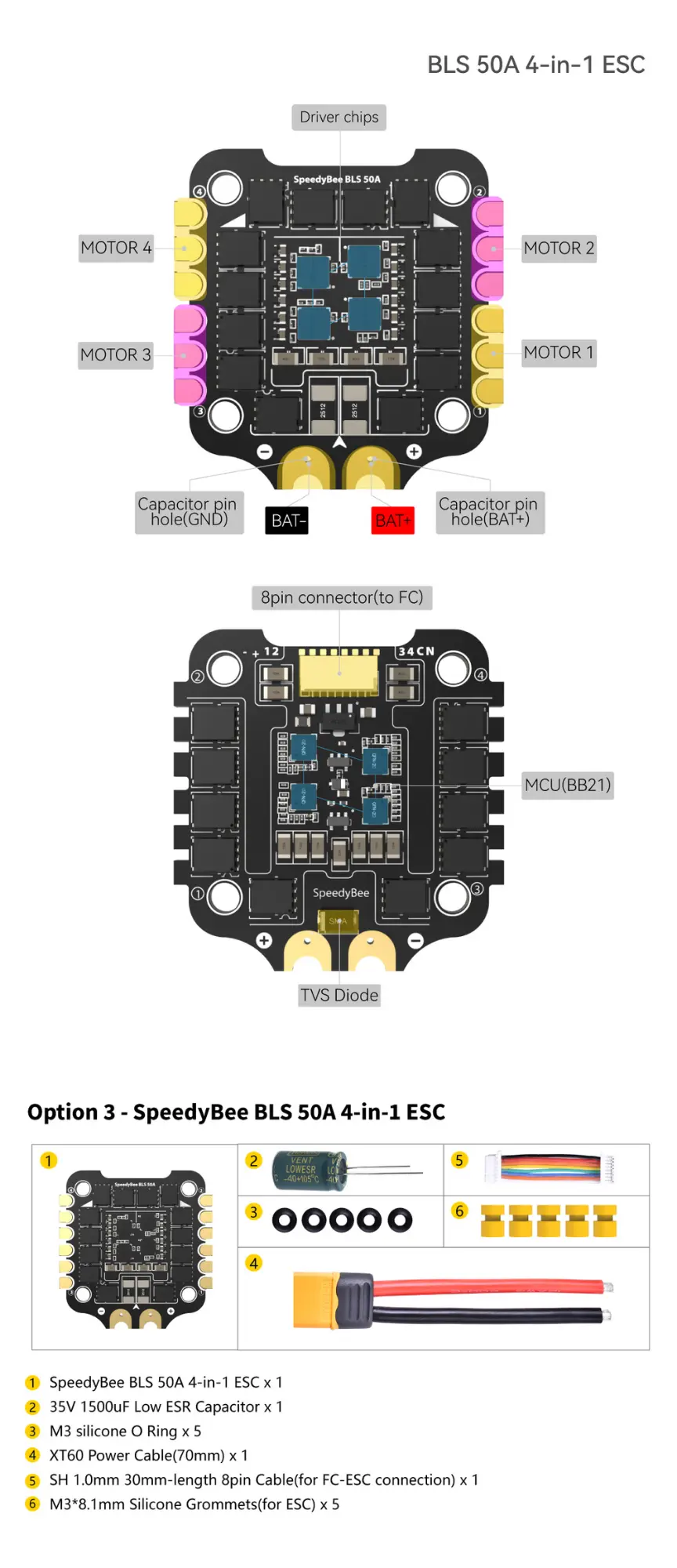

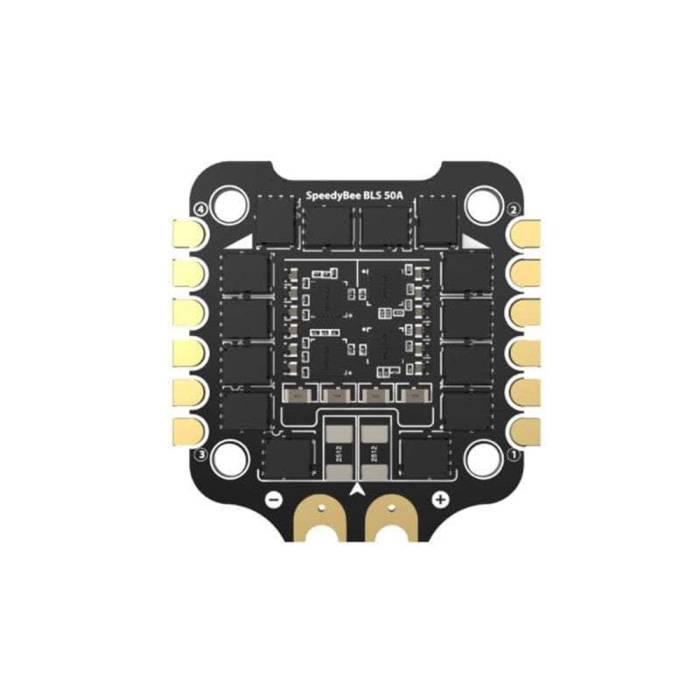

The SpeedyBee 50A 3-6S BLHeli_S 4-in-1 ESC - 30x30 features a TVS diode, which protects the board from voltage spikes. Built with the robust BB21 MCU and large motor pads for easy soldering. Built with Japan-made TDK filtering SMT capacitors + onboard TVS protective diode, brings a smooth flight experience.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• Large motor pads for easy soldering
• Smooth flight experience
• 1500uF ESR Capacitator
• 30x30 mounting holes
• Robust BB21 MCU
• BLHeli_S JH50
• TVS diode

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Wireless Configuration: Full Configuration Supported in the SpeedyBee app
• External Capacitor: 1500uF Low ESR Capacitor(In the package)
• PC Configurator Download Link: https://esc-configurator.com/
• Mounting: 30.5 x 30.5mm( 4mm hole diameter)
• Current Sensor: Support (Scale=386 Offset=0)
• Dimension: 45.6(L) * 44(W) * 6.1mm(H)
• ESC Protocol: DSHOT300/600
• Continuous Current: 50A * 4
• TVS Protective diode: Yes
• Firmware: BLHeli_S JH50
• Burst Current: 55A(5S)
• Power Input: 3-6S LiPo
• Power Output: VBAT
• Weight: 13.8g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

• Manual

•   (Insert links such as manuals, firmware, etc)

• 1x SH 1.0mm 30mm-length 8pin Cable(for FC-ESC connection)
• 1x SpeedyBee 50A 3-6S BLHeli_S 4-in-1 ESC - 30x30
• 5x M3x8.1mm Silicone Grommets(for ESC)
• 1x 35V 1500uF Low ESR Capacitor
• 1x XT60 Power Cable(70mm)
• 5x M3 Silicone O Ring
