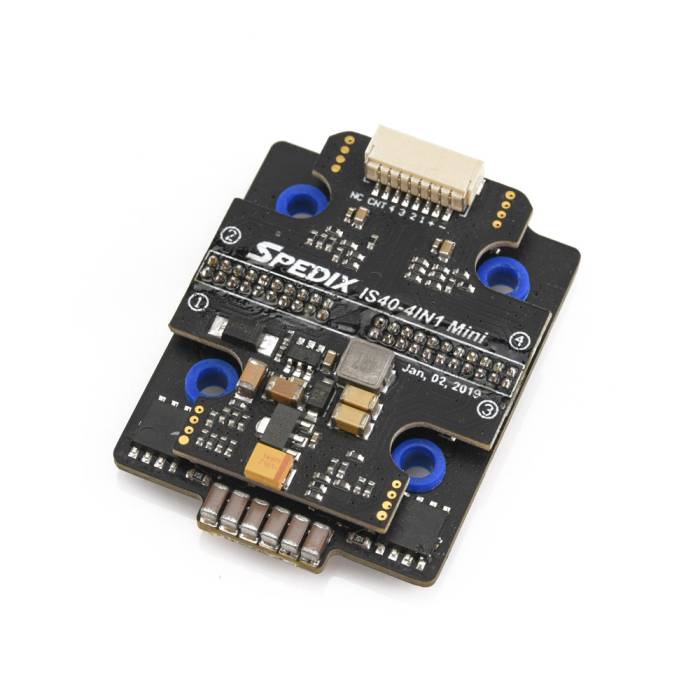

Spedix IS40 40A 3-6S BLHeli_S 4-in-1 ESC

The Spedix IS40 40A 4-in-1 20x20 ESC (3-6S) is one of the most reliable 20mm ESCs in the market and can support up to 6S racing drones! The IS40 4-in-1 ESC is a powerful and responsive ESC that features a full-sized 5x6mm MOSFETs into a 20x20mm ESC.

This 4-in-1 ESC will go great with the BrainFPV Radix LI or any other 20×20mm or full-sized flight controller.

Features

• Innovative double-deck design enables the implementation of full-size 5*6 MOSFET on 20*20mm mini 4-in-1 ESC.
• 40V MOSFET improves the overall reliability in fast response to throttle signals，making the 6 cell input capable in the real world.
• Silicone rings insulate standoffs, PCB, and parts.
• The extremely small size makes mounting on smaller frames easier than ever.

Specifications

• Input:3-6 Cell LiPo
• Continuous Current: 40A
• Burst Current: 50A≤10S
• BEC: No
• Current Detection: YES
• Firmware: BLHeli_S
• Dimensions: 40x31x8mm
• Mount Holes: 20x20mm
• Weight：13.2g
• Application: 200-300mm racing drone

Includes

• 1 x Spedix IS40 4-In-1 Mini 3-6S 40A ESC
• 4 x Grommets
• 4 x Standoffs
• 1 x Wire set
• 1 x 470uF 35V Capacitor
