NewBeeDrone Infinity305 45A 3-6S BLHeli_32 4-in-1 30x30 ESC
$79.99
Out of Stock
Only left for same day shipping. Order now!
NewBeeDrone Infinity305 45A 3-6S BLHeli_32 4-in-1 30x30 ESC

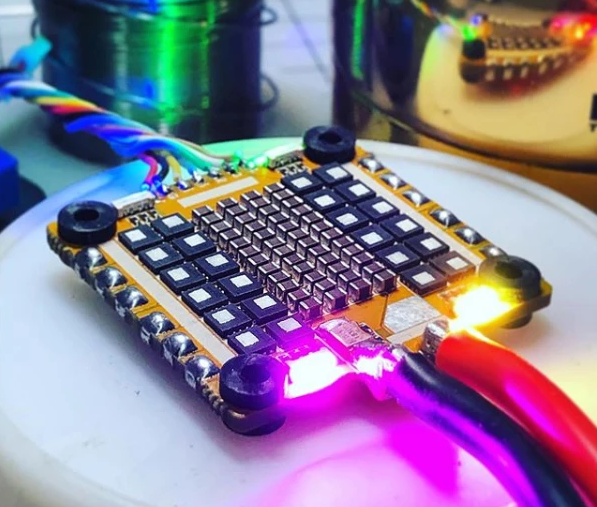

The NewBeeDrone Infinity305 ESC is a solid 30.5x30.5 ESC that is also plug-and-play with the DJI Digital FPV System!
About this product
The NewBeeDrone Infinity305 ESC is a solid 30.5x30.5 ESC that is also plug-and-play with the DJI Digital FPV System! Comes with LEDs, tons of capacitance, and a thick 10 layer PCB with 2Oz copper.
Build Video: NewBeeDrone Infinity 30x30 Stack:
Note: Stack not included, ESC Only.
Features
- Heatsink
- Solder pad ready for signal and power
- Smoov Performance Design by TeamNBD
Specifications
- LiPo Power input: 3S-6S
- ESC Programming: BLHeliSuite32
- Cont.Current: 45Ax4
- Burst Current: 55Ax4
- Weight / Size: 15.0g / 41x37.5x6mm
- Mounting holes: 30.5x30.5mm
- Signal plug JST1.0 8pin plug with NBD Infinity30FC
- 10 Layer PCB with 2Oz Copper Only PCB weight: 9grams
- Onboard capacitor: 10uf x 48 Total 480uF, (no need for external capacitor)
- BLHeli32 Programable Sided RGB LED x4
Includes
- NewBeeDrone Infinity 305 45A BLHeli_32 4-in-1 2 30.5x30.5 ESC
- 4x Grommets short 4x Grommets Long
- 5x Steel Screw 25mm
- 13x Nylon Locknut
- 1x Infinity305 FC to Infinity305 ESC cable 30mm
- 1x Infinity305 FC to Infinity305 ESC cable 50mm
- 1x Infinity305 FC to Infinity305 ESC cable 85mm
- 470uf 35v Electrolytic capacitor
More Information
| SKU | 15416 |
|---|---|
| UPC (GTIN) | 751313222251 |
| Manufacturer | NewBeeDrone |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Amps | 45 Amps |
| Voltage | 3-6 Cell (11.1v-22.2v) |
| Number of ESC's | 4 ESC's in 1 |
