NewBeeDrone Infinity 200 V2 55A 3-6S BLHeli_32 4-in-1 ESC w/ Heatsink - 20x20

The NewBeeDrone Infinity 200 V2 is a 55A 3-6s BLHeli_32 4-in-1 20x20 ESC that has been upgraded to include a full aluminum shield for complete coverage. Building upon the design of the first-generation 200 ESC, the layout and power support for the entire system have been optimized. The new configuration features a double-sided heatsink and aluminum shield, providing superior protection and enhanced heat dissipation compared to the previous single-sided heatsink solution.

• Upgraded version of the first-generation Infinity 200 ESC
• Double-sided heatsink for improved heat dissipation
• Optimized layout and power support
• Enhanced durability and reliability
• Full aluminum shield coverage

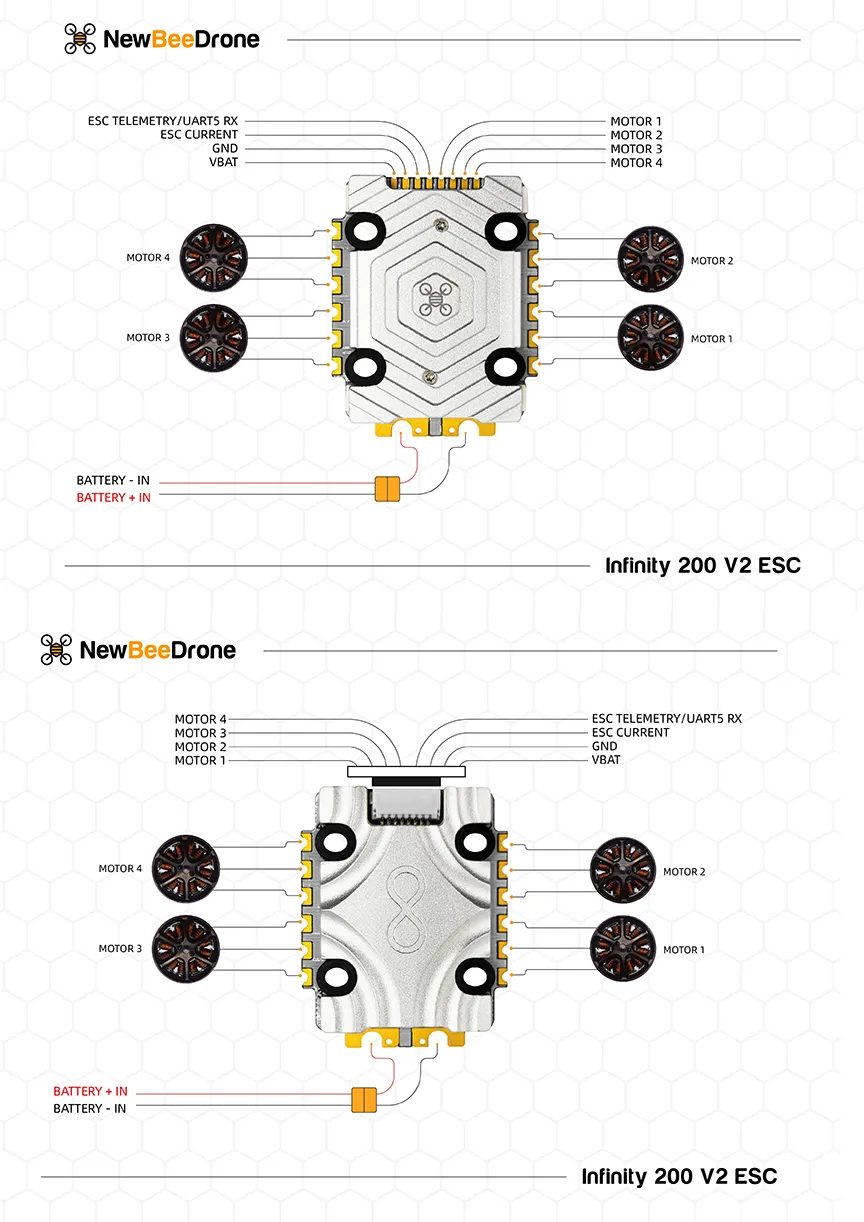

• Signal plug JST1.0 8pin plug with Infinity200
• Smoov performance design by Team NBD
• Solder pad ready for signal and power
• Weight / Size: 13.0g / 39x29.5x8mm
• 8 Layer PCB with 2Oz Copper
• ESC Programming: BLHeli32
• Mounting holes: 20x20mm
• LiPo Power input: 3S-6S
• Burst Current: 65Ax4
• Cont.Current: 55Ax4
• Heatsink design

• 1x Infinity 200 4 in 1 ESC BLHeli32 55A
• 1x FC to ESC cable 30mm
• 1x FC to ESC cable 50mm
• 1x FC to ESC cable 85mm
• 4x Short Grommets & 4x Long Grommets
• 470uf 35v Electrolytic capacitor
• 5x Steel Screw 25mm
• 13x Nylon Nuts
