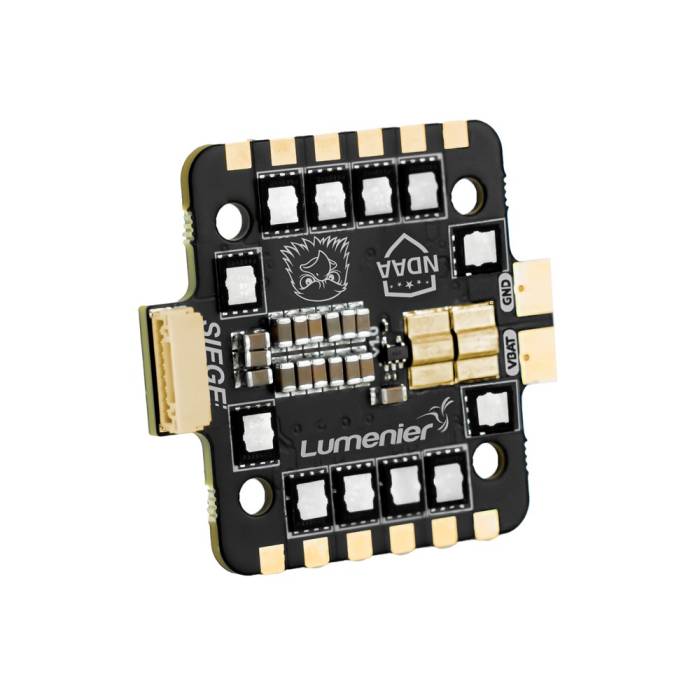

Lumenier Siege 80A 3-8S AM32 4-in-1 ESC - NDAA

The Lumenier Siege 80A ESC features some of the latest power-electronics technology, including best-in-class power transistors. Additionally, the Siege 80A ESC features dense PCB copper power planes to help mitigate heat during high-performance flight. The board also includes a TVS diode to help protect sensitive electronics from transient voltage spikes. The Siege 80A 4-in-1 ESC runs AM32 on a powerful STM32G071 Arm Cortex-M0+ MCU, which ensures compatibility with your favorite flight stacks, like Betaflight, INAV, PX4, and Ardupilot.

VIDEO: NDAA Compliant 8s Stack for FPV Drone Builds: Lumenier Lux FC & Siege ESC

• TVS Protection Diode to Mitigate Transient Voltage Spikes
• Best-in-Class 60V MOSFETs with Dual-Side Cooling
• Robust PCB with Dense Copper Power Planes
• Betaflight Connector Standard
• Analog Current Sensor
• AM32 Firmware

• AM32 Firmware
  • Motor Protocol Support - Servo PWM and DSHOT 300/600
  • Bi-directional DSHOT
  • Betaflight and KISS Standard ESC Telemetry
  • Variable PWM Frequency
  • Sinusoidal Startup Mode
  • Stuck Motor Protection
  • Firmware upgradable via Betaflight passthrough
• Betaflight Connector Standard

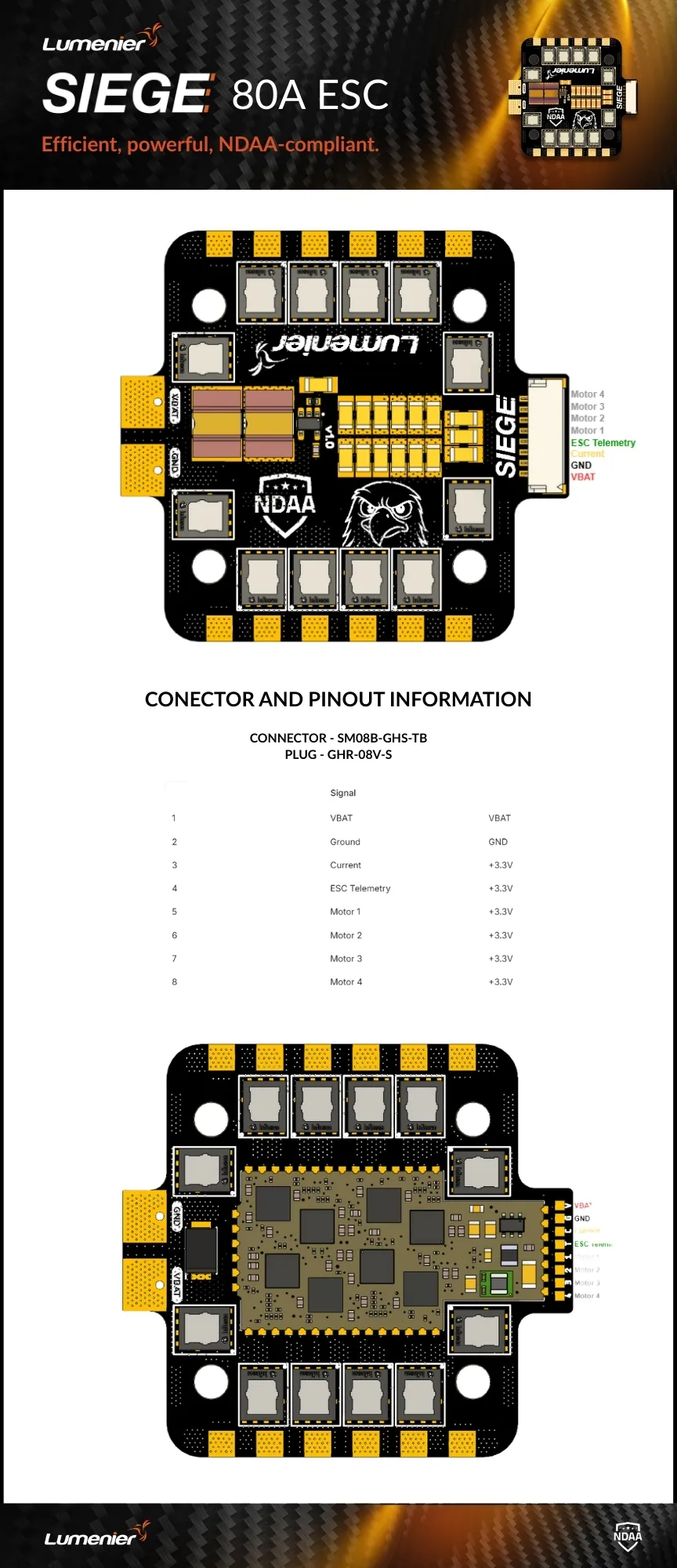

  • JST-GH - 1.25mm Pitch - 8-pin Connector - SM08B-GHS-TB
  • Pinout: VBAT/GND/CURR/TELEM/M1/M2/M3/M4
• Mounting holes: 30.5mm x 30.5mm
• Input: 3S to 8S battery voltage
• Constant Current: 80A
• Size: 52.4mm x 48mm
• Peak Current: 100A
• MCU: STM32G071
• MOSFETs: 60 V
• Weight: 27.5g

MANUAL

• Lumenier Siege 80A ESC NDAA Manual

NDAA DECLARATION

• Lumenier Siege 80A ESC NDAA Declaration

AM32

• AM32.ca Configurator
• AM32 Github
• *Please remember to always use AM32.ca to modify ESC settings to match the motor poles and KV prior to first flight. Motor pole and KV match is required for all AM32 ESCs.

• 1x Lumenier Siege 80A 3-8S AM32 4-in-1 ESC - NDAA
• 1x 80mm 8-pin JST-GH to 8-pin JST-GH Cable
• 1x 80mm 8-pin JST-GH to 8-pin JST-SH Cable
• 4x Plastic Hex Nut (Black)
• 1x 63V 2200uF Capacitor
• 4x M3 Rubber Grommets
