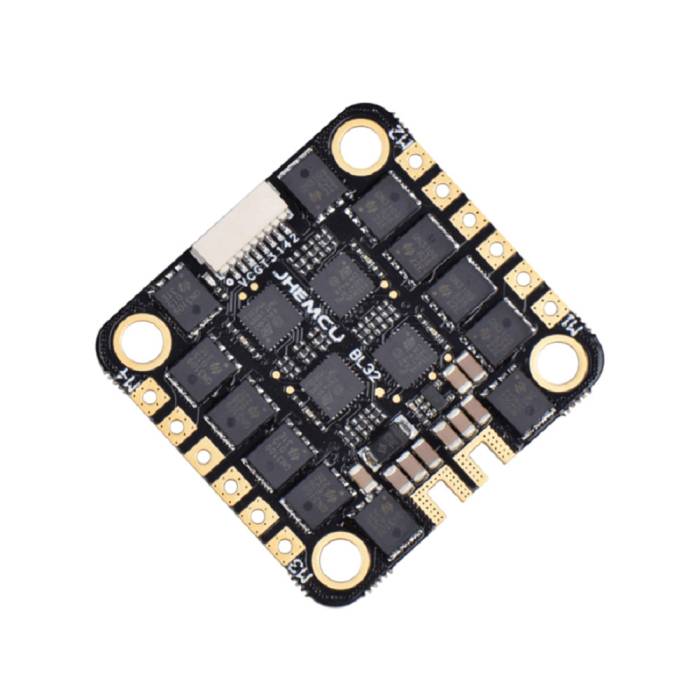

JHEMCU 55A 2-6S BLHeli_32 4-in-1 ESC

The JHEMCU BLheli 32 55A 4-in-1 ESC uses 32-bit ARM Cortex MCU STM32F051 48MHZ processor, 2048-level throttle resolution, unique algorithm control, and strong anti-interference ability. You can upgrade the firmware online or change the configuration parameters through the signal line.

The ESC comes with a current detection module, which can work with the flight control to detect the current value.

Specifications

• Supports: Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
• Power supply voltage: 3-6S (12-26V)
• Continuous working current: 55A
• BEC: No built-in 5V BEC output
• Firmware: BLHELI 32 ESC
• Mounting hole spacing: 30.5*30.5MM
• Weight:10.9g

Includes

• 1 x BL32 55A 4IN1 ESC
• 1 x 8P*1.0MM plug cable
• 1 x Filter capacitor
• 1 x 12awg red wire
• 1 x 12awg black wire
