Holybro Tekko32 F4 Metal 65A BLHeli_32 4-in-1 ESC

The all-new Tekko32 Metal is the first 4-in1- ESC in the market to adapt to the fast F4 MCU. Powerful & reliable metal-cased MOSFET 4-in-1 ESC with smooth control and quick response.

Note: Airflow for the ESC is very important if you want to run this 4in1 in a high current.
The battery wire (from Lipo to 4in1 ESC) should be at least 12AWG and well soldered.

Features

• New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
• PWM output up to 96K (default 48K)
• Metal-cased MOSFET for excellent heat dissipation
• Massive on-board capacitance for noise filtering at 2068uf
• 3 oz copper PCB design to allow bigger current and better heat dissipation
• A separate drive & control circuit broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

Specification

• Continuous Current: 65A x4
• Burst Current: 75A x4
• Supports 4-6S battery
• Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
• ESC telemetry Supported
• Onboard analog current sensor
• No output BEC
• BLHeli_32 firmware
• 1000uf 35v capacitor included (highly recommended for 6s setup)
• Amperage meter scale ratio: 168
• Dimensions: 43 x 44mm / Weight: 15.8g
• Mounting holes: M4 30.5x30.5mm (M3 grommets included)

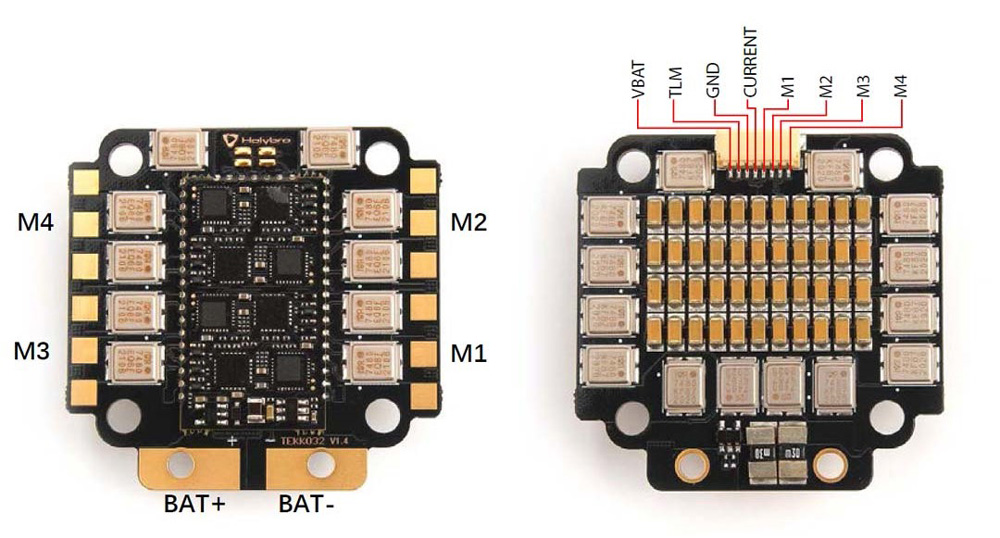

PIN MAP

Includes

• 1 x Tekko32 F4 Metal 4in1 65A ESC
• 4 x M3 Anti-Vibration Silicone Grommet Insert
• 1 x Electrolytic capacitor: 1000uF 35v
• 1 x 8pin to 8pin 1mm pitch 65mm cable
• 1 x 8pin to 8pin 1mm pitch 25mm cable

Downloads

• Tekko32 F4 Metal 4in1 ESC(65A) SPEC V1.4

Some Tips
