HGLRC Mini V1 60A 8S BL32 4-in-1 ESC
$56.99
In Stock
Only left for same day shipping. Order now!

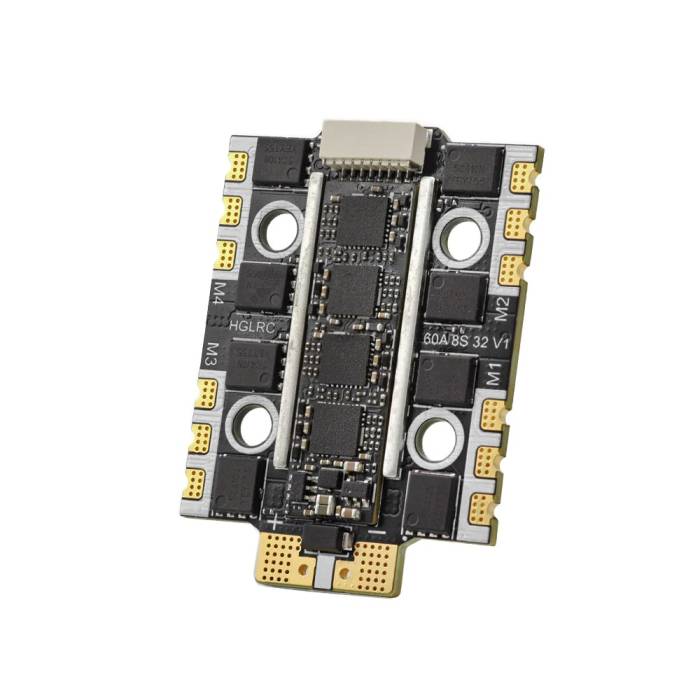

HGLRC Mini V1 60A 8S BL32 4-in-1 ESC
The HGLRC Mini V1 60A 8S BL32 ESC is a compact 4-in-1 speed controller built for reliable 3–8S performance.
About this product
The HGLRC Mini V1 60A 8S BL32 ESC is a compact 4-in-1 speed controller built for reliable 3–8S performance. With 60A per channel output and a lightweight 14g design, it delivers smooth power for freestyle and racing builds while fitting standard 20mm mounting patterns.

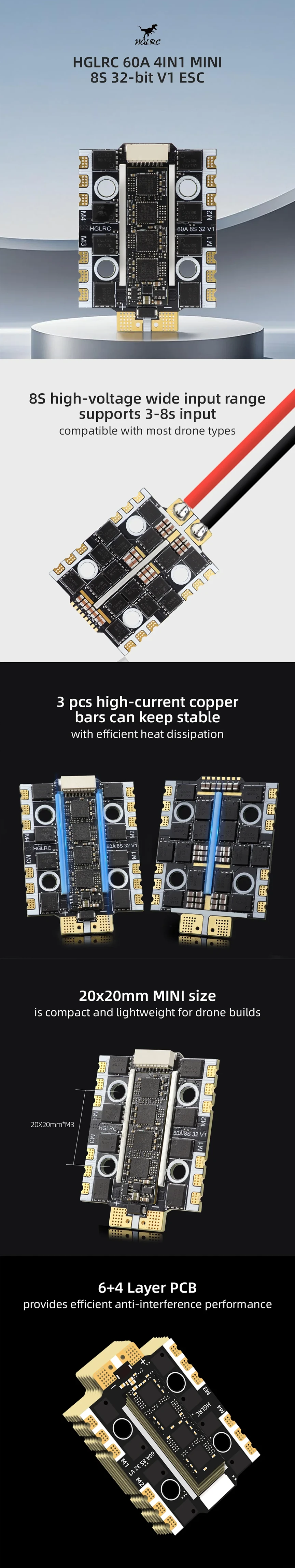

Features
- 3-8S high-voltage wide input range compatible with most drone types
- High-current copper bars provide efficient heat dissipation
- Compact and lightweight 20x20mm size
- Compatible with BL32 and AM32 firmware (shipped with BL32)
- 6+4 Layer PCB provides efficient anti-interference performance
Specifications
- Input Voltage: 3-8S
- Continuous Current: 60A
- Peak Current: 65A (for 10 seconds)
- Firmware: BL32
- MCU: QF32MTF4AK8U7
- Telemetry: Supported
- Mounting Hole Pattern: 20x20mm, M3
- Supported Protocols: DShot300 / DShot600 / Oneshot / PWM
- Dimensions: 46.8mm x 34mm x 6.5mm (LxWxH)
- Weight: 14g
Links
Includes
- 1x HGLRC Mini V1 60A 8S BL32 4-in-1 ESC
More Information
| SKU | G24737CN1Z |
|---|---|
| UPC (GTIN) | 723326380921 |
| Manufacturer | HGLRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| ESC Firmware | BLHeli_32 |
| Amps | 60 Amps |
| Voltage | 3-8S |
| Number of ESC's | 4 ESC's in 1 |
