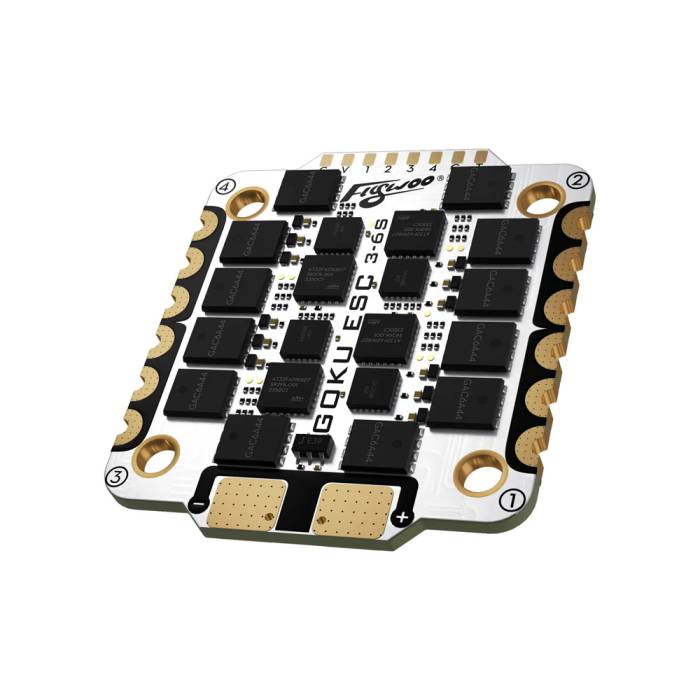

Flywoo GOKU G55M 55A 3-6S AM32 4-in-1 ESC - 30x30
$64.99
In Stock
Only left for same day shipping. Order now!
Flywoo GOKU G55M 55A 3-6S AM32 4-in-1 ESC - 30x30
The GOKU G55M is a high-performance ESC with a 55A continuous current rating and 32-bit processing speed. It features AM32 firmware, supporting bidirectional DSHOT and telemetry, with a maximum refresh rate of 128K.
About this product
The GOKU G55M is a high-performance ESC with a 55A continuous current rating and 32-bit processing speed. It features AM32 firmware, supporting bidirectional DSHOT and telemetry, with a maximum refresh rate of 128K. Key features include imported MOSFETs, high-quality ceramic capacitors, and a 6-layer PCB design, reducing heat and improving efficiency. Compatible with DShot1200, PWM, and Oneshot signals, the GOKU G55M ensures an exceptional flying experience.
Features
- Quality Components
- Powerful Functions
- Compatibility
Specifications
- DShot Support: DShot300, DShot600, DShot1200
- Continuous / Peak Current: 55A x 4 / 60A x 4 (10s)
- Name: GOKU G55M BL32 / AM32 4-in-1 ES
- Output Wires: None, reserved solder pads
- Firmware: BL32: GOKU_F4A32_PRO
- Power Connector: XT30 / XT60
- PWM Frequency: 24K-128K
- Dimensions: 44mm x 40mm
- Continuous Current: 55A
- Input Voltage: 3-6S LiPo
- Battery Cells: 3-6S LiPo
- Supports: BL32 / AM32
- AM32: AT32DEVF421
- Weight: 15g
Includes
- 1x Flywoo GOKU G55M 55A 3-6S AM32 4-in-1 ESC - 30x30
- 1x FC to ESC Connection Cable
- 4x M3 Shock-Absorbing Ball
- 1x XT60 Cable
- 1x Capacitor
More Information
| SKU | 22950 |
|---|---|
| UPC (GTIN) | 723326371110 |
| Manufacturer | Flywoo |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| ESC Firmware | AM32 |
| Amps | 55 Amps |
| Voltage | 3-6 Cell (12.6-25.2V) |
| Number of ESC's | 4 ESC's in 1 |
