Flycolor X-Cross Mini 45A 3-6S BL_Heli32 4-in-1 20x20 ESC
Flycolor X-Cross Mini 45A 3-6S BL_Heli32 4-in-1 20x20 ESC
$49.99
In Stock
Only left for same day shipping. Order now!
Earn
Flycolor X-Cross Mini 45A 3-6S BL_Heli32 4-in-1 20x20 ESC

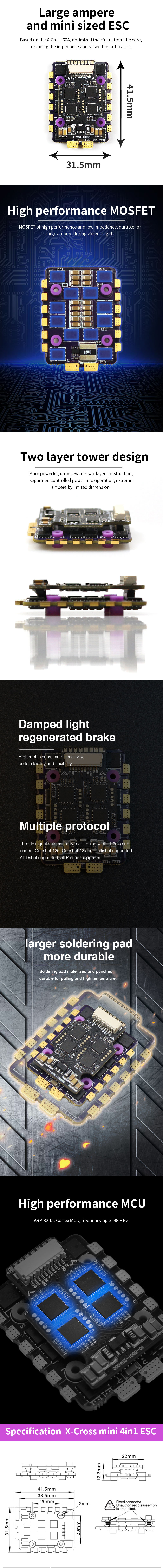

This FLYCOLOR X-Cross Mini is a 4-in-1 ESC was designed for high-stress racing drones. The reduced impedance and high-quality MOSFET allow for high-current to effortlessly flow through to your motors.
About this product
This FLYCOLOR X-Cross Mini is a 4-in-1 ESC that is based on the X-Cross 60A. Designed for high-stress racing drones the reduced impedance and high-quality MOSFET allow for high-current to effortlessly flow through to your motors.
Features
- 20x20 Mounting Holes
- Two Layer Design
- High-performance, ARM 32-bit cortex MCU with frequency up to 48MZ
- Larger Soldering Pads
- Oneshot, Oneshot 42, Dshot, Proshot, and Multishot supported.
Specifications
- Current: 45A
- Burst Current: 55A (10s)
- BEC: No
- Lipo Cells: 3-6s
- Weight: 14.5kg
- Size: 41.5x31.5x12.3mm
- Mounting Pattern: 20x20mm, M2
- Configurator: BLHeliSuite32
- Firmware: Flycolor - X - Cross - BL - 32
- Application: 100-200 Multi Drone / Quad Copter
Includes
- 1x X-Cross Mini ESC
- 1x XT60 Pigtail
- 1x Capacitor
- 1x Connecting Wire
- 2x Heat Shrink
- 8x Purple Damping Balls
More Information
| SKU | 15241 |
|---|---|
| UPC (GTIN) | 789862859093 |
| Manufacturer | FlyColor |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| Item Returns | This item can be returned |
