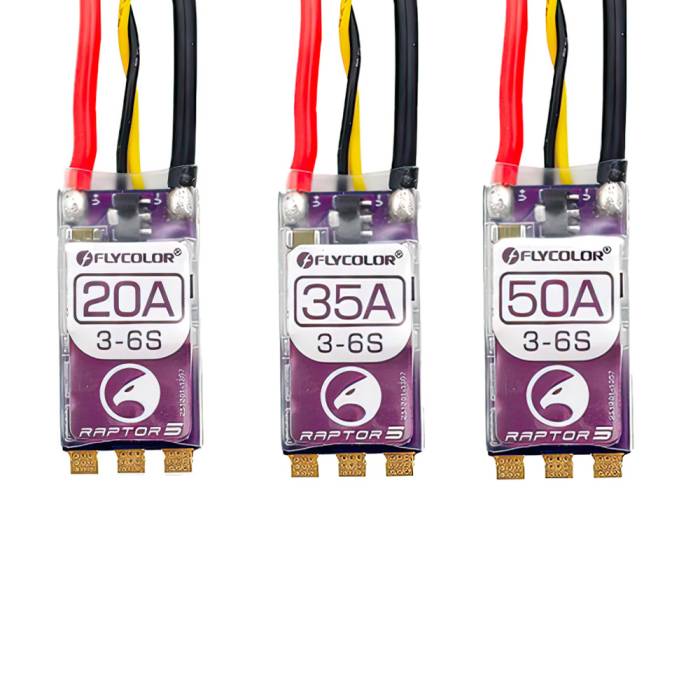

Flycolor Raptor 5 G071 3-6S BLHeli_32 ESC - 20A/35A/50A
Flycolor Raptor 5 G071 3-6S BLHeli_32 ESC - 20A/35A/50A
$20.99
Select options for stock status
Only left for same day shipping. Order now!
Flycolor Raptor 5 G071 3-6S BLHeli_32 ESC - 20A/35A/50A
High performance, small size, lightweight - that is what the Flycolor Raptor 5 series has to offer.
About this product
High performance, small size, lightweight - that is what the Flycolor Raptor 5 series has to offer. Flycolor Raptor 5 ECSs by Flycolor is perfect for fixed-wing RC Drones!
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Oneshot125 (125-250μs), Oneshot42 (41.7-83.3μs), and Multishot (5-25μs)
- Features high-temperature silicone signal cables
- Boasts better routing and component layout
- It supports regular 1-2ms pulse width input
- ARM 32-bit Cortex MCU STM32G071
- Effectively reduces crosstalk
- Frequency of up to 64 MHz
- Increased service life
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
20A
- Firmware: Flycolor_Raptor_5
- Model: Raptor 5 G071-20A
- Continuous Current: 20A
- Typical Applications: FPV
- Burst Current (10S): 25A
- Size: 29x14x6mm
- Battery: 3-6S
- Weight: 6.5g
- BEC: No
35A
- Firmware: Flycolor_Raptor_5
- Model: Raptor 5 G071-35A
- Continuous Current: 35A
- Typical Applications: FPV
- Burst Current (10S): 40A
- Size: 29x14x6mm
- Battery: 3-6S
- Weight: 6.5g
- BEC: No
50A
- Firmware: Flycolor_Raptor_5
- Model: Raptor 5 G071-50A
- Continuous Current: 50A
- Typical Applications: FPV
- Burst Current (10S): 60A
- Size: 33x16x6mm
- Weight: 10.2g
- Battery: 3-6S
- BEC: No
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Flycolor Raptor 5 G071 3-6S BLHeli_32 ESC (Choose an Amperage)
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 22126 |
---|---|
Manufacturer | Happymodel |
NDAA Compliant | No |
Mounting Pattern | Single Arm ESC |
Item Returns | This item can be returned |
