FlightOne Skitzo Black Bolt 30A 4-in-1 V2 ESC

FlightOne Skitzo Black Bolt 30A 4-in-1 V2 ESC

Out of Stock

Only left for same day shipping. Order now!
Earn
FlightOne Skitzo Black Bolt 30A 4-in-1 V2 ESC

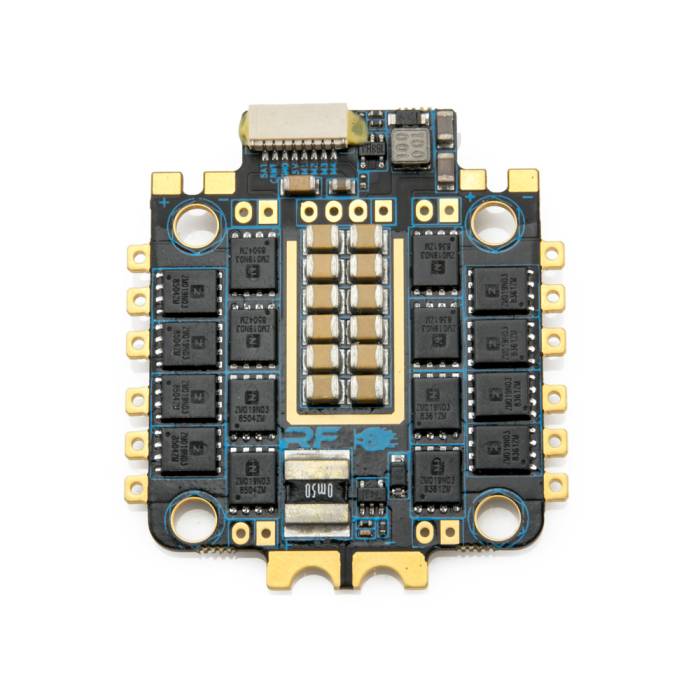

FlightOne Skitzo Black Bolt 4-in-1 BLHeli_S ESC features 30A ESC's (each) built into an incredibly small and lightweight footprint.

About this product

The FlightOne Skitzo Bolt 4in1 electronic speed controller (ESC) was designed for power and performance. Coupled with the Revolt FC the Bolt makes a thin stack while keeping the escs save inside the frame, protected from prop strikes. The escs are also safe from vibrations thanks to the integrated FlightOne Gummies.

The FlightOne 4in1 is also extremely easy to install. It is compatible with 4s through 6s batteries and has a built-in current sensor that hooks up directly to the Revolt to provide amp draw and mAh consumed information. The Bolt can pin into the revolt and provides the Revolt power.

Add the Lumenier SKITZO Flight Controller V2 Powered by FlightOne for a fully Plug and Play solution.

Specifications

  • Plug and Play ready for the Lumenier SKITZO Flight Controller V2
  • 30.5mm x 30.5mm mounting hole spacing
  • Integrated FlightOne Gummies
  • 30 amp continuous draw per motor
  • 40 amp burst
  • BlHeli_S
  • 5V voltage regulator capable of 3A continuous output
  • D-Shot ready
  • 4s – 6s compatible
  • Built in Current Sensor
  • Special low noise connector integrated with the Revolt and Bolt pair
  • Current and Voltage sent to flight controller
  • Easy Install
  • High-quality components
  • Weight: 15.5 grams

Includes

  • 1x Black Bolt 30A 4-in-1 V2 BLHeli_S ESC
  • 4x Mounting Grommets
  • 2x 25V 6800uF Low ESC Capacitor
  • 20x Individual Male Pin Headers
  • 12x Individual Female Pin Headers

Return Policy

Please note that this product is from a manufacturer who requires RMAs to be processed directly with the manufacturer themselves, not GetFPV.

If you feel that your product is defective please contact them directly. GetFPV is asked to follow this policy by the manufacturer.

More Information

SKU 7770
UPC (GTIN) 704817761900
Manufacturer FlightOne
NDAA Compliant No
Mounting Pattern N/A
Item Returns This item can be returned
