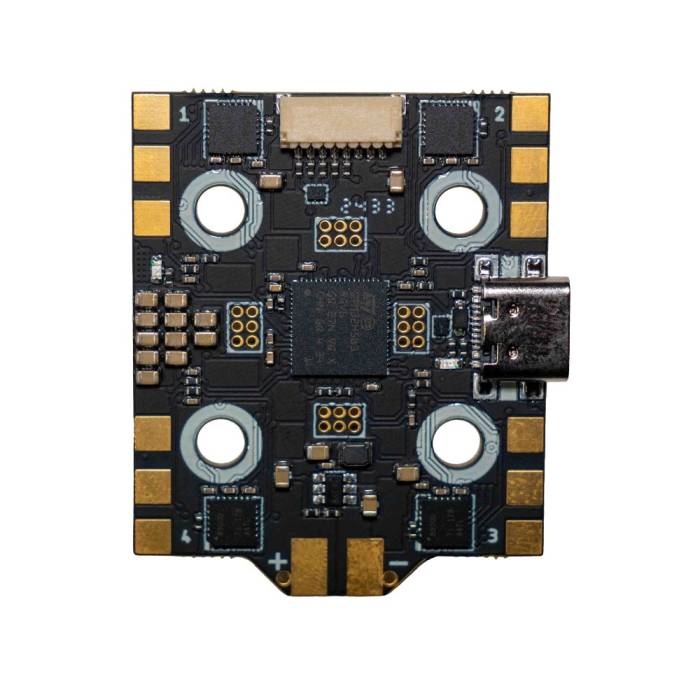

FETtec SFOC 50A 2-8S 4-in-1 ESC

The FETtec SFOC 50A 4-in-1 ESC (Simplified Field Oriented Control) is an innovative approach to control brushless three-phase motors. While enhancing efficiency, lowering current and torque ripple, and improving response times this board is packed with features.  With FETtec SFOC, users can experience up to a 13% increase in efficiency and up to a 30% boost in acceleration, alongside other benefits such as stronger sensorless motor startups, reduced noise, and smoother motor operation.

• Up to 50A per channel with good airflow
• Controls 4 BLDC/PMSM motors using a single microcontroller
• USB-C
• FETtec SFOC motor control method

• MCU: STM32H56 ARM Cortex M33 @ 250 MHz
• Voltage: 2-8S (6-34V) 40V MOSFETs
• Protocol:Dshot 300 2400, OneWire, S2M
• Bidirectional Dshot: Supported (with extended Dshot telemetry)
• Motor PWM: 64kHz and 128kHz
• RPM per channel: Up to 450k
• Outer Dimensions: 35 x 43.5mm
• Mounting Holes: 20 x 20mm, M4
• Weight: 10g

IMPORTANT NOTES

• As of 18.12.2024: Betaflight passthrough is supported up to version 4.5.0. Compatibility with later versions will be made available through future firmware updates.
• Generally, we recommend using the provided capacitor and a FETtec Spike Absorber (when used with up to 6S).

• When using an 8S setup, an appropriate flight controller or FC must be used, and an additional BEC may be required.

• FETtec SFOC 50A 4-in-1 ESC Manual

• 1x FETtec SFOC 50A 4-in-1 ESC
